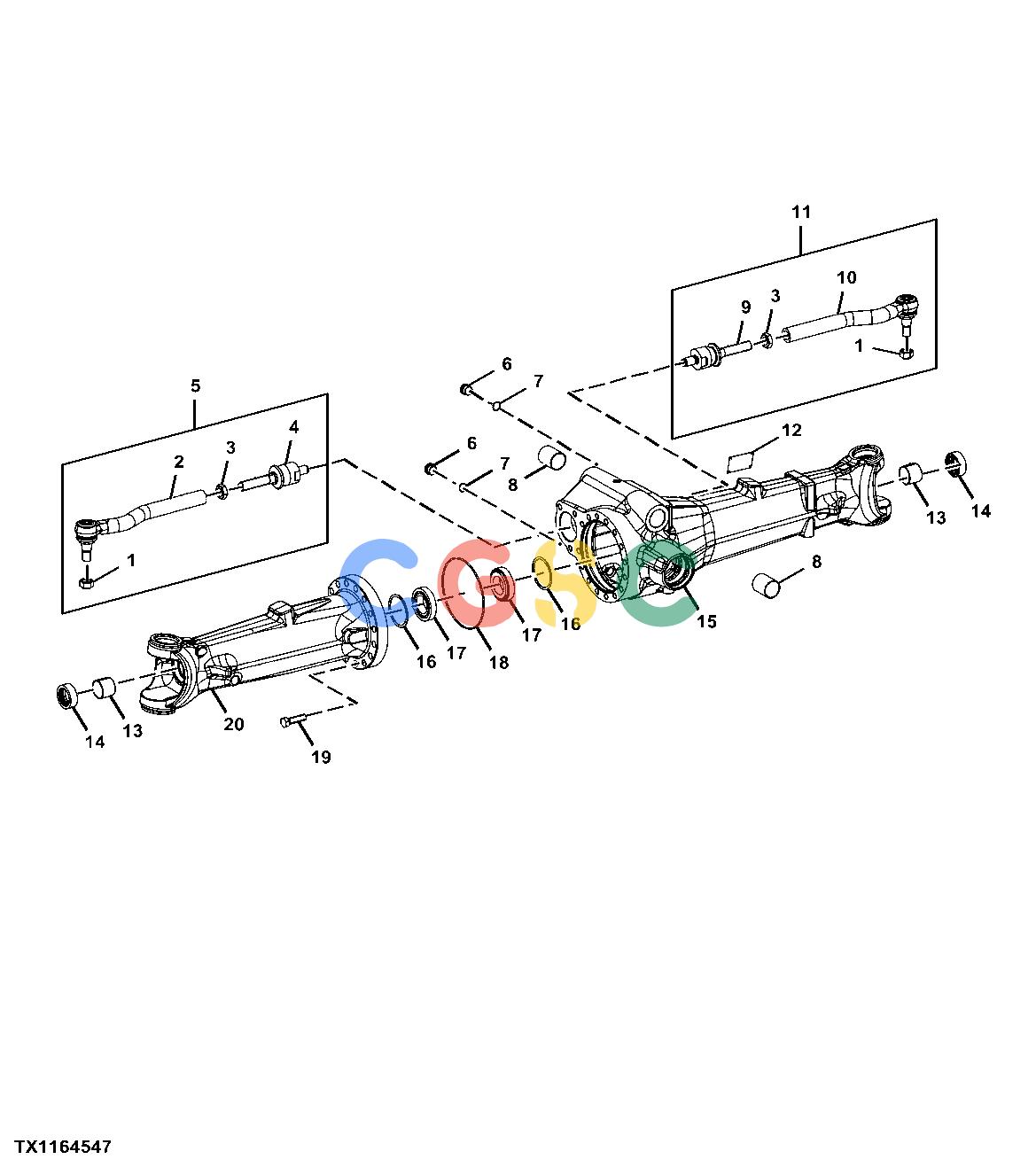

约翰迪尔零件查询310SK TC - BACKHOE, LOADER Front Axle Housing with MFWDEPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 344 次

Pos.	Part No	Qty	Parts name	Comments
1.	T229268	[2]	Lock Nut
2.	AT326539	[1]	Tie Rod Assembly	LEFT HAND
2.	AL113460	[1]	Boot
3.	AT309307	[2]	Nut
4.	AT339807	[1]	Tie Rod End
5.	AT326538	[1]	Tie Rod Assembly	LEFT HAND
6.	F436023	[2]	Plug
7.	R82198	[2]	O-Ring	21 X 2 MM (0.827" X 0.079")
8.	T140211	[2]	Bushing
9.	AT339807	[1]	Tie Rod End	RIGHT HAND
10.	AT326540	[1]	Tie Rod Assembly	RIGHT HAND
10.	AL113460	[1]	Boot
11.	AT326537	[1]	Tie Rod Assembly	RIGHT HAND
12.	........	[1]	Plate	NLA
13.	AT321443	[2]	Bushing
14.	AZ71008	[2]	Seal	SUB FOR L110233
15.	T229262	[1]	Housing	RIGHT HAND
16.	T169636	[2]	Solid Shim	2.00 MM SUB FOR (2) T229085
16.	T181395	[2]	Shim	1.95 MM SUB FOR (2) T229086
16.	T229087	[2]	Solid Shim	1.90 MM
16.	T181393	[2]	Shim	1.85 MM SUB FOR (2) T229088
16.	T181392	[2]	Shim	1.80 MM SUB FOR (2) T229089
16.	T181390	[2]	Shim	1.75 MM SUB FOR (2) T181390
16.	AT321954	[2]	Shim	1.70 MM SUB FOR (2) AT321954
16.	AT321953	[2]	Shim	1.65 MM SUB FOR (2) AT321953
16.	AT321642	[2]	Shim	1.60 MM SUB FOR (2) AT321642
16.	L112207	[2]	Washer	1.55 MM SUB FOR (2) AT321641
16.	L112208	[1]	Washer	1.50 MM SUB FOR (2) AT321640
16.	L112209	[2]	Washer	1.45 MM SUB FOR (2) AT321639
16.	L112210	[2]	Washer	1.40 MM
16.	L40997	[2]	Washer	1.20 MM
16.	L40998	[2]	Washer	1.00 MM
16.	AT321630	[2]	Shim	0.90 MM SUB FOR (2) T229111
16.	L40999	[2]	Washer	0.80 MM
16.	L41000	[2]	Shim	0.60 MM
16.	L41001	[2]	Shim	0.50 MM
16.	L41002	[2]	Shim	0.40 MM
16.	L41003	[2]	Shim	0.30 MM
16.	L41004	[2]	Shim	0.20 MM
16.	L41005	[2]	Shim	0.10 MM
16.	L112211	[2]	Washer	0.65 MM
16.	L112212	[2]	Washer	0.70 MM
16.	L112213	[2]	Washer	0.75 MM
16.	L112214	[2]	Washer	0.85 MM
	L112216	[2]	Washer	0.95 MM
	L112217	[2]	Washer	1.10 MM
	L112218	[2]	Washer	1.15 MM
	L112219	[2]	Washer	1.25 MM
	L112220	[2]	Washer	1.30 MM
	L112221	[2]	Washer	1.35 MM
	L101689	[2]	Shim	0.45 MM
	L101690	[2]	Shim	0.55 MM
	L112222	[2]	Washer	1.05 MM
	L151281	[2]	Washer	2.05 MM SUB FOR (2) T229121
	L151282	[2]	Washer	2.10 MM SUB FOR (2) T229122
	L151283	[2]	Washer	2.15 MM SUB FOR (2) T229123
	L151284	[2]	Washer	2.20 MM SUB FOR (2) T229124
	L151285	[2]	Washer	2.25 MM SUB FOR (2) T229125
	L151286	[2]	Washer	2.30 MM SUB FOR (2) T229126
	L151287	[2]	Washer	2.35 MM SUB FOR (2) T229127
	L151288	[2]	Washer	2.40 MM SUB FOR (2) T229128
	T229129	[2]	Solid Shim	2.45 MM
	T229130	[2]	Solid Shim	2.50 MM
17.	AT303349	[2]	Tapered Roller Bearing
18.	T218804	[1]	O-Ring
19.	19M7369	[15]	Cap Screw	M16 X 60 SUB FOR (15) 19M3005
20.	T229253	[1]	Housing	LEFT HAND
