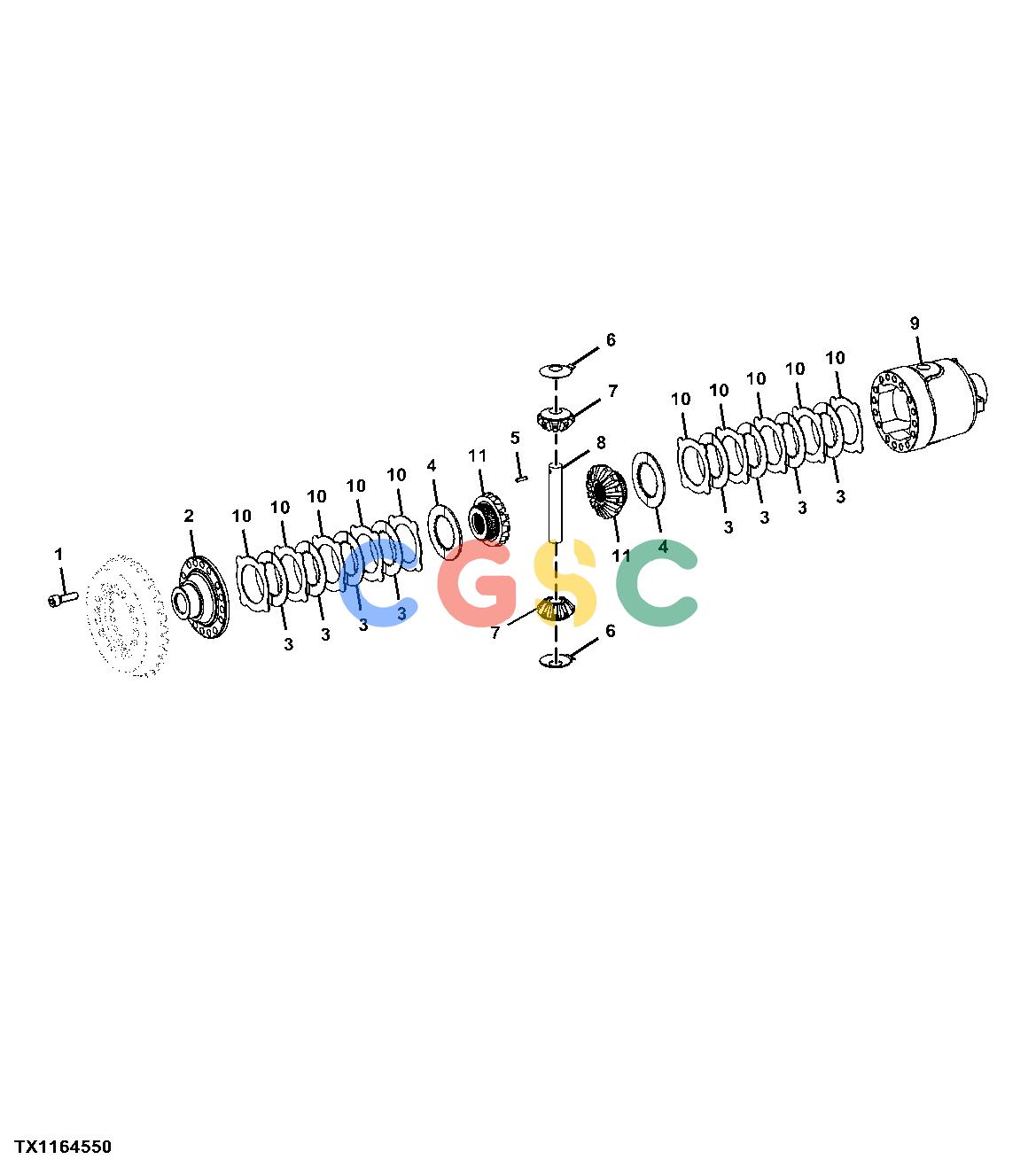

约翰迪尔零件查询310SK TC - BACKHOE, LOADER Limited Slip Differential, Front AxleEPC John Deere online
广数供应链运营团队, 16 02月, 2025，浏览：
445 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
T286523
|
[16] |
Cap Screw
|
|
| 2. |
T229076
|
[1] |
Cover
|
|
| 3. |
AT339686
|
[8] |
Clutch Disk
|
|
| 4. |
T229082
|
[2] |
Thrust Washer
|
|
| 5. |
34M7141
|
[1] |
Spring Pin
|
|
| 5. |
T316429
|
[1] |
Spring Pin
|
|
| 6. |
T229083
|
[2] |
Thrust Washer
|
|
| 7. |
T249878
|
[2] |
Bevel Gear Drive
|
|
| 8. |
T229084
|
[1] |
Pinion Shaft
|
|
| 9. |
T229077
|
[2] |
Housing
|
|
| 9. |
T316427
|
[2] |
Housing
|
|
| 10. |
T229078
|
[10] |
Clutch Disk
|
|
| 10. |
T229079
|
[10] |
Clutch Disk
|
|
| 11. |
T229081
|
[2] |
Bevel Gear Drive
|
|
