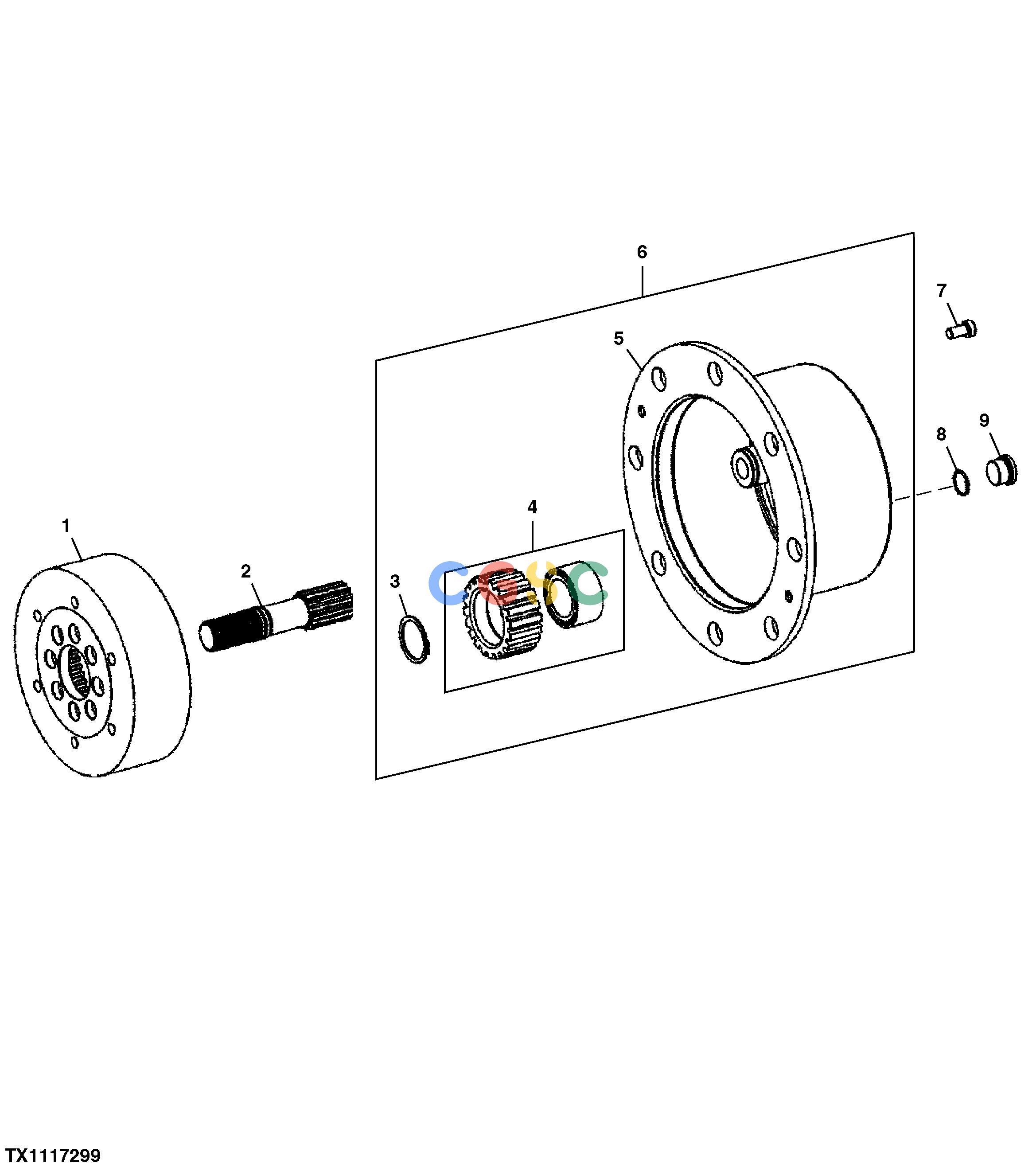

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | T229274 | [2] | Ring Gear | |
| 2. | T292966 | [2] | Sun Gear | T229250 NLA |
| 3. | T228911 | [6] | Snap Ring | |
| 4. | AT414573 | [6] | Planetary Assembly | SUB FOR T292965 AND AT339811 |
| 5. | T249877 | [1] | Planet Pinion Carrier | T229259 NLA |
| 6. | AT362347 | [2] | Planetary Assembly | AT339810 NLA |
| 7. | 19M5039 | [4] | Screw | M10 X 20 |
| 8. | R82198 | [2] | O-Ring | 21 X 2 MM (0.827" X 0.079") |
| 9. | F436023 | [2] | Plug |
