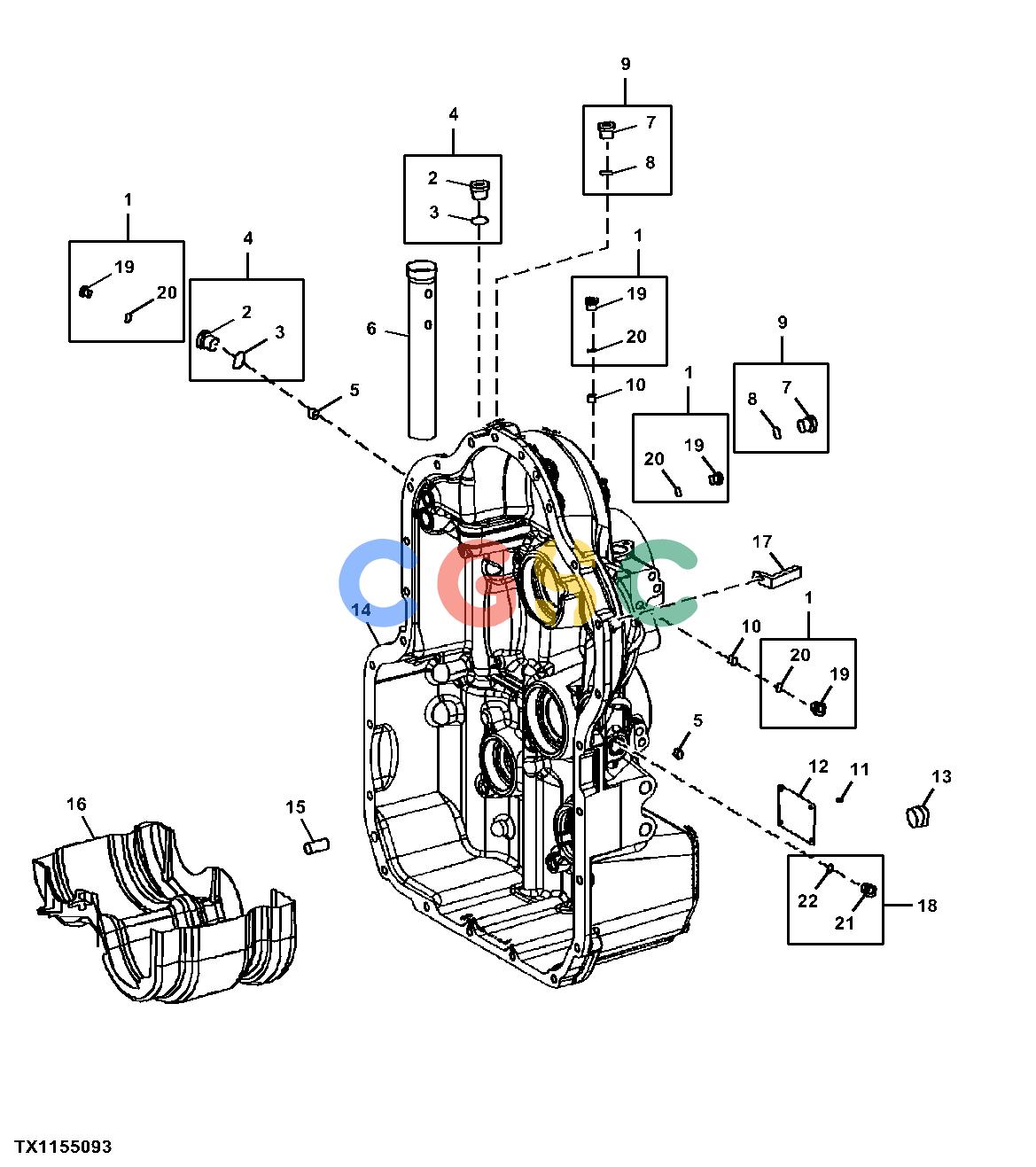

约翰迪尔零件查询310SK TC - BACKHOE, LOADER Transmission Rear Housing and Oil Fill TubeEPC John Deere online
广数供应链运营团队, 16 02月, 2025，浏览：
535 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
T161194
|
[AR] |
Plug
|
|
| 2. |
T229350
|
[2] |
Plug
|
|
| 3. |
T229396
|
[2] |
O-Ring
|
|
| 4. |
AT339903
|
[2] |
Plug
|
|
| 6. |
T292708
|
[1] |
Tube
|
|
| 7. |
T229338
|
[3] |
Plug
|
|
| 8. |
T229395
|
[3] |
O-Ring
|
|
| 9. |
AT339901
|
[3] |
Plug
|
|
| 11. |
25M7021
|
[4] |
Groove Pin
|
|
| 13. |
T159565
|
[1] |
Plug
|
|
| 14. |
T229389
|
[1] |
Housing
|
|
| 14. |
T229388
|
[1] |
Housing
|
|
| 15. |
T164662
|
[2] |
Pin
|
|
| 16. |
AT339921
|
[1] |
Screen
|
|
| 17. |
R73975
|
[2] |
Bracket
|
|
| 18. |
RE63751
|
[1] |
Pipe Plug
|
|
| 19. |
T175862
|
[AR] |
Plug
|
|
| 20. |
T116416
|
[AR] |
O-Ring
|
|
| 21. |
T113570
|
[1] |
Drain Plug
|
|
| 22. |
R104558
|
[1] |
O-Ring
|
|
