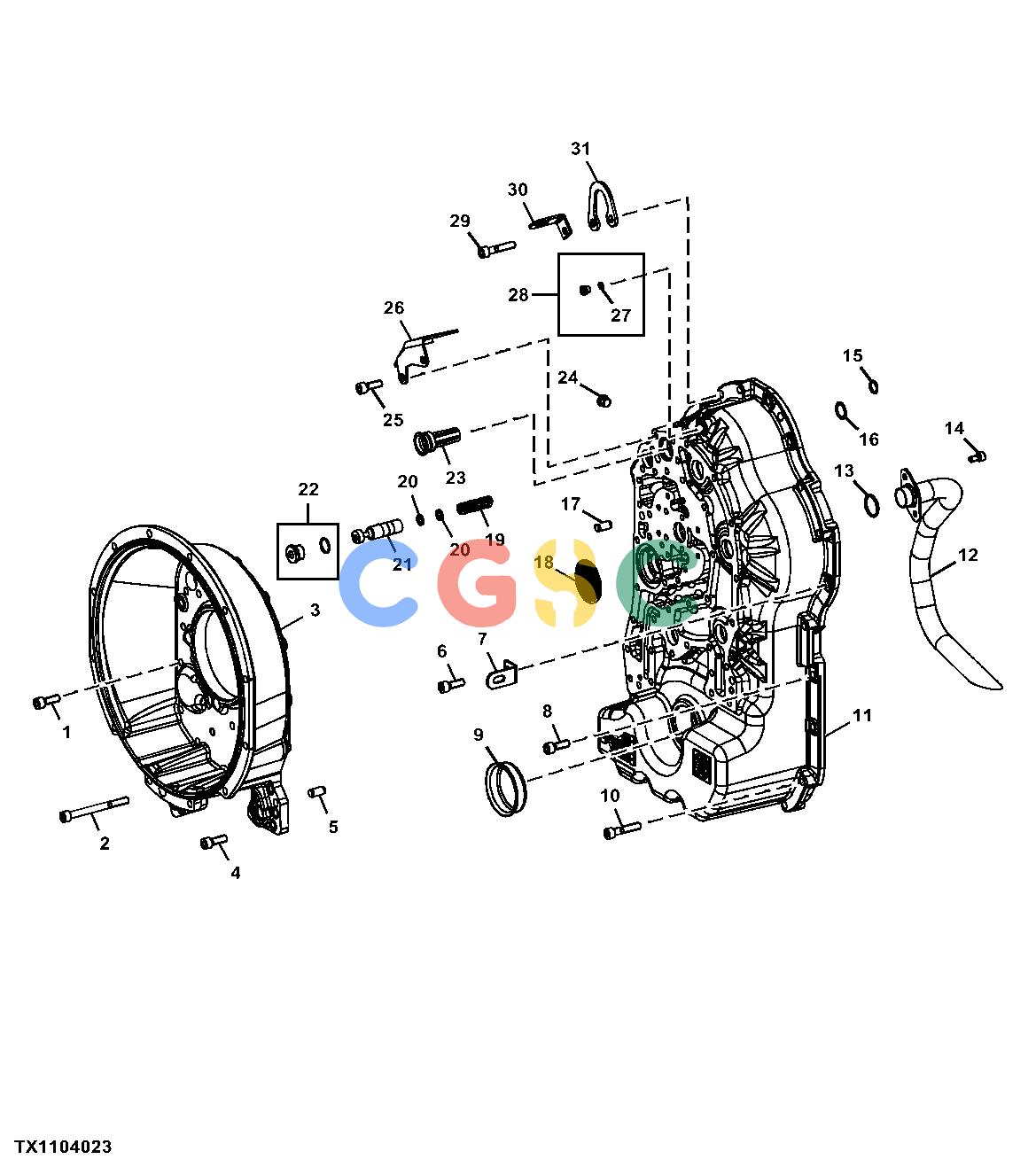

约翰迪尔零件查询310SK TC - BACKHOE, LOADER Transmission Front Housing and Torque Converter CoverEPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 1020 次

Pos.	Part No	Qty	Parts name	Comments
1.	19M8881	[29]	Screw	M10 X 30
2.	19M8973	[1]	Screw	M10 X 110
3.	T237670	[1]	Housing
4.	19M8881	[11]	Screw	M10 X 30
5.	T164662	[1]	Pin
6.	19M8881	[1]	Screw	M10 X 30
7.	T164671	[1]	Bracket
8.	19M8881	[11]	Screw	M10 X 30
9.	T159683	[1]	Cover	USED WITHOUT MFWD
10.	T229363	[5]	Cap Screw
11.	T292415	[1]	Housing
12.	AT339900	[1]	Line
13.	T161181	[1]	O-Ring
14.	T164648	[2]	Cap Screw
15.	T159566	[1]	O-Ring
16.	T229394	[1]	O-Ring
17.	T164662	[1]	Pin
18.	AT339923	[1]	Screen
19.	T272098	[1]	Spring
20.	T229360	[1]	Spacer	2.00 MM
20.	T229369	[1]	Spacer	2.20 MM
20.	T161200	[1]	Spacer	2.40 MM
20.	T229376	[1]	Spacer	2.60 MM
20.	T161199	[1]	Spacer	2.80 MM
21.	T292712	[1]	Piston
22.	15M7045	[1]	Drain Plug
22.	51M7085	[1]	O-Ring	19 X 2 MM
23.	T176526	[1]	Flow Control Hyd. Valve
24.	AT339901	[1]	Plug
25.	19M8881	[2]	Screw	M10 X 30
26.	AT334337	[1]	Angle
27.	T116416	[1]	O-Ring	8 X 1.500 MM (0.315" X 0.059")
28.	AT398751	[1]	Plug
29.	T229363	[5]	Cap Screw
30.	T164671	[1]	Bracket
31.	T159567	[1]	Plate
