约翰迪尔零件查询310SK TC - BACKHOE, LOADER Second Speed Clutch AssemblyEPC John Deere online_约翰迪尔John Deere_工程机械

约翰迪尔零件查询310SK TC - BACKHOE, LOADER Second Speed Clutch AssemblyEPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 409 次

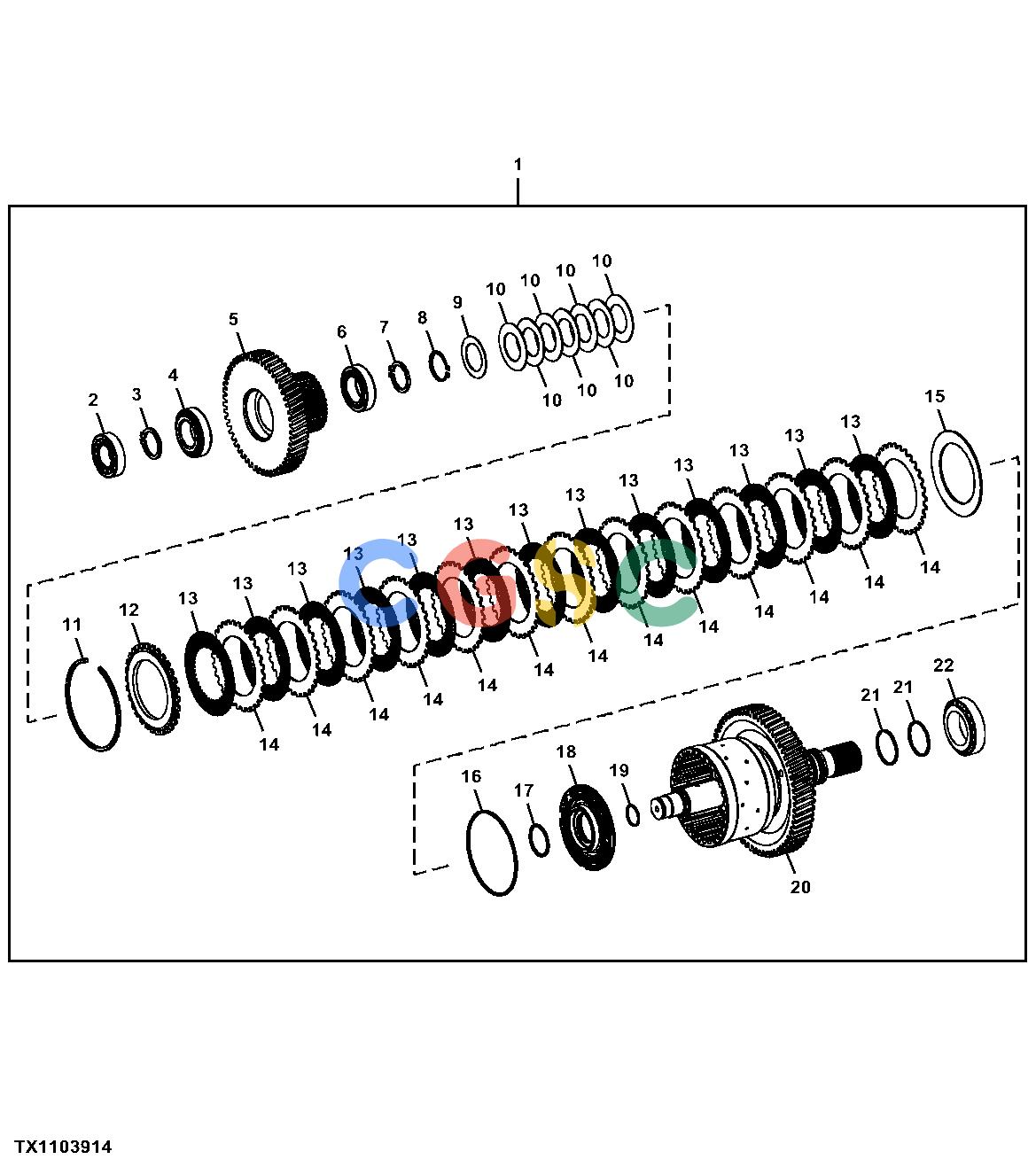

Pos.	Part No	Qty	Parts name	Comments
1.	AT407141	[1]	Modular Clutch	NLA, ORDER COMPONENT PARTS
2.	T341152	[1]	Tapered Roller Bearing	SUB FOR T158793
3.	T161186	[1]	Snap Ring
3.	T161187	[1]	Snap Ring
3.	T161188	[1]	Snap Ring
3.	T161189	[1]	Snap Ring
3.	T161190	[1]	Snap Ring
3.	T161191	[1]	Snap Ring
3.	T161192	[1]	Snap Ring
3.	T161193	[1]	Snap Ring
3.	T164627	[1]	Snap Ring
3.	T164628	[1]	Snap Ring
3.	T164629	[1]	Snap Ring
3.	T164630	[1]	Snap Ring
4.	AT179470	[1]	Tapered Roller Bearing
5.	T301131	[1]	Hub
6.	AT179469	[1]	Tapered Roller Bearing
7.	T161190	[1]	Snap Ring
8.	40M7058	[2]	Snap Ring
9.	T158749	[1]	Thrust Washer
10.	T229373	[7]	Disk Spring
11.	T261414	[1]	Snap Ring	2.00 MM SUB FOR T294549
11.	T261409	[1]	Snap Ring	2.25 MM SUB FOR T294550
11.	T294551	[1]	Snap Ring	2.50 MM
11.	T294552	[1]	Snap Ring	2.75 MM
11.	T294553	[1]	Snap Ring	3.00 MM
11.	T294554	[1]	Snap Ring	3.25 MM
11.	T294555	[1]	Snap Ring	3.50 MM
11.	T294556	[1]	Snap Ring	3.75 MM
11.	T294557	[1]	Snap Ring	4.00 MM
12.	T161147	[1]	Plate
13.	T164626	[13]	Disk
14.	T158801	[13]	Clutch Plate
15.	T229349	[1]	Disk Spring
16.	T158739	[1]	Ring
17.	AT258980	[1]	O-Ring	40 X 3 MM (1.575" X 0.118")
18.	T229401	[1]	Piston
19.	T158742	[1]	Ring
20.	AT407144	[1]	Drum
21.	T172118	[2]	Piston Ring
22.	AT435599	[1]	Tapered Roller Bearing	SUB FOR AT339914
