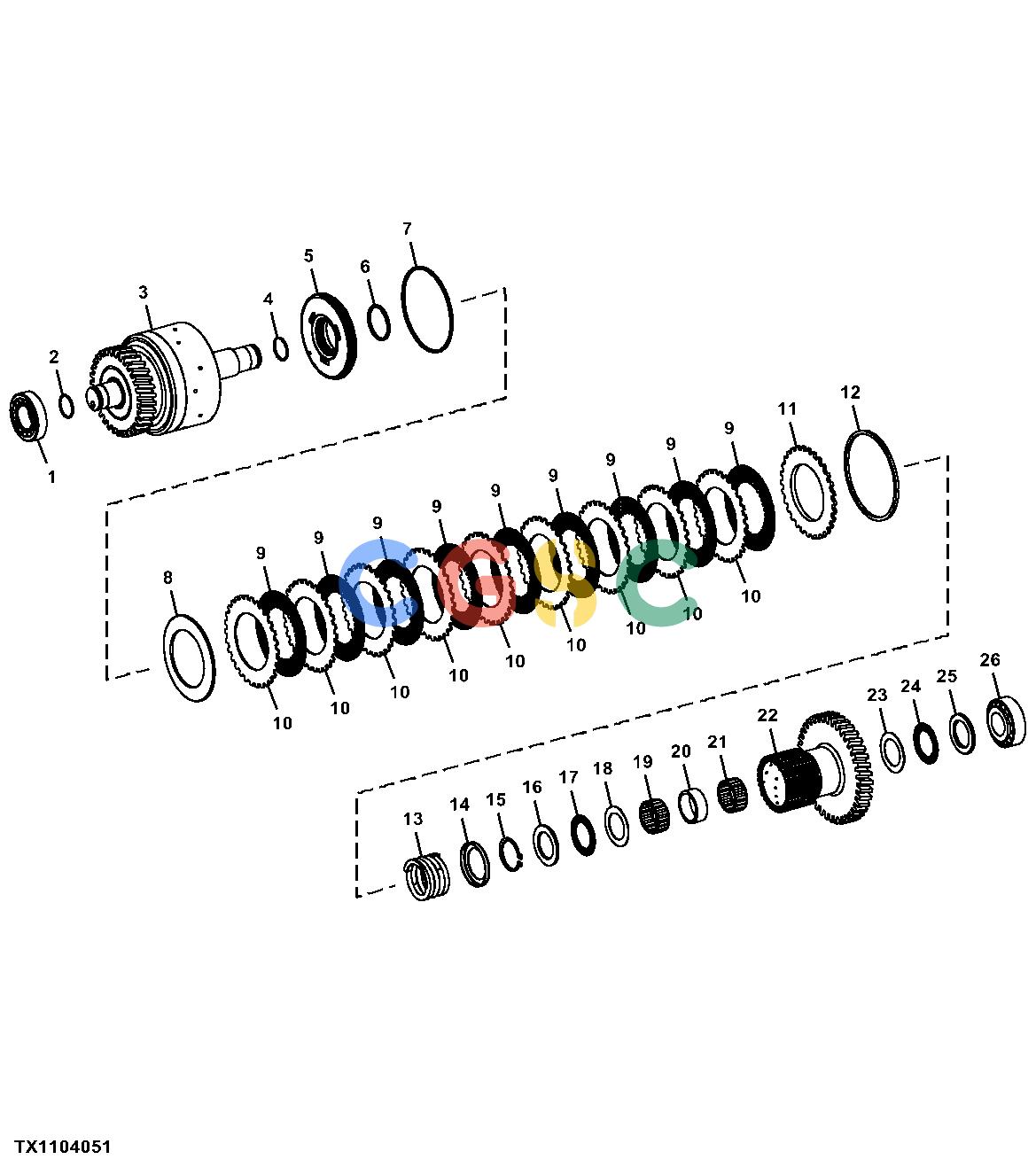

约翰迪尔零件查询310SK TC - BACKHOE, LOADER Third Speed Clutch AssemblyEPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 140 次

Pos.	Part No	Qty	Parts name	Comments
1.	T341152	[1]	Tapered Roller Bearing	SUB FOR T158793
2.	T158742	[1]	Ring
3.	AT339906	[1]	Modular Clutch
4.	T158742	[1]	Ring
5.	T229403	[1]	Piston
6.	AT258980	[1]	O-Ring	40 X 3 MM (1.575" X 0.118")
7.	T229398	[1]	O-Ring
8.	T229337	[1]	Disk Spring
9.	AT339922	[9]	Clutch Disk
10.	T229406	[9]	Plate
11.	T229340	[1]	Disk With Outer Spline
12.	T341153	[1]	Snap Ring	2.00 MM SUB FOR T262843
12.	T341154	[1]	Snap Ring	2.25 MM SUB FOR T262844
12.	T341155	[1]	Snap Ring	2.50 MM SUB FOR T262845
12.	T341156	[1]	Snap Ring	2.75 MM SUB FOR T262846
12.	T341157	[1]	Snap Ring	3.00 MM SUB FOR T262847
12.	T341158	[1]	Snap Ring	3.25 MM SUB FOR T262848
12.	T341159	[1]	Snap Ring	3.50 MM SUB FOR T262870
12.	T341160	[1]	Snap Ring	3.75 MM
12.	T341161	[1]	Snap Ring	4.00 MM
13.	T229346	[1]	Compression Spring
14.	T229468	[1]	Round Retainer
15.	40M7058	[1]	Snap Ring
16.	T229348	[1]	Thrust Washer
17.	AT339918	[1]	Needle Bearing
18.	T229336	[1]	Thrust Washer
19.	AT339919	[1]	Needle Bearing
20.	T292705	[1]	Spacer
21.	AT339919	[1]	Needle Bearing
22.	T229410	[1]	Hub
23.	T229336	[1]	Thrust Washer
24.	AT339918	[1]	Needle Bearing
25.	T229348	[1]	Thrust Washer
26.	AT339916	[1]	Tapered Roller Bearing
