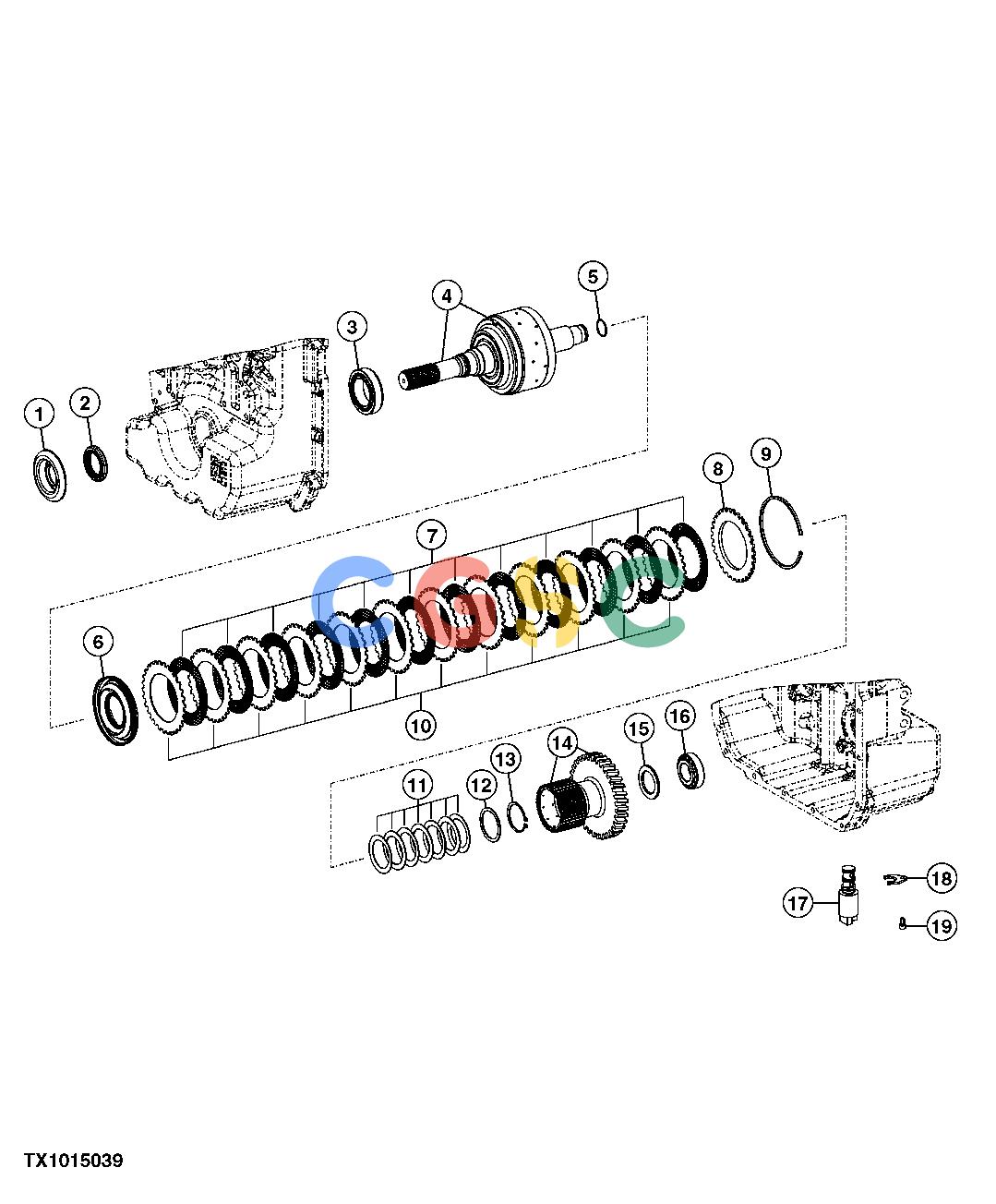

约翰迪尔零件查询310SK TC - BACKHOE, LOADER Mechanical Front Wheel Drive Clutch AssemblyEPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 803 次

Pos.	Part No	Qty	Parts name	Comments
1.	T218504	[1]	Dust Shield
2.	AT179466	[1]	Seal	ALSO ORDER (1) T218504
2.	T229467	[1]	Ring
3.	AT435599	[1]	Tapered Roller Bearing	SUB FOR AT339914
4.	AT339913	[1]	Modular Clutch
5.	T158742	[1]	Ring
6.	AT364084	[1]	Piston	ALSO ORDER (1) T158743 AND (1) T158739, AT193704 NLA
7.	T164626	[12]	Disk
8.	T161147	[1]	Plate
9.	T294557	[1]	Snap Ring	4.00 MM SUB FOR T261408 AND T161183
9.	T294555	[1]	Snap Ring	3.50 MM SUB FOR T261410 AND T158778
9.	T294553	[1]	Snap Ring	3.00 MM SUB FOR T261411 AND T159568
9.	T294551	[1]	Snap Ring	2.50 MM SUB FOR T261413 AND T159569
9.	T261414	[1]	Snap Ring	2.00 MM SUB FOR T159570
9.	T294554	[1]	Snap Ring	3.25 MM SUB FOR T261416 AND T229368
9.	T294556	[1]	Snap Ring	3.75 MM SUB FOR T261415 AND T229375
9.	T261409	[1]	Snap Ring	2.25 MM SUB FOR T229383
9.	T294552	[1]	Snap Ring	2.75 MM SUB FOR T261412 AND T229386
10.	T158801	[12]	Clutch Plate
11.	T229357	[7]	Disk Spring
12.	T229372	[1]	Thrust Washer
13.	40M7166	[1]	Snap Ring
14.	T229407	[1]	Hub
15.	T229356	[1]	Thrust Washer
16.	T341152	[1]	Tapered Roller Bearing	SUB FOR T158793
17.	AT310584	[1]	Solenoid Hydraulic Valve
18.	T229343	[1]	Plate
19.	19M8618	[1]	Screw	M6 X 12 SUB FOR (1) L152999, THIS APPLICATION
