约翰迪尔零件查询310SK TC - BACKHOE, LOADER High Range Forward Clutch AssemblyEPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 682 次

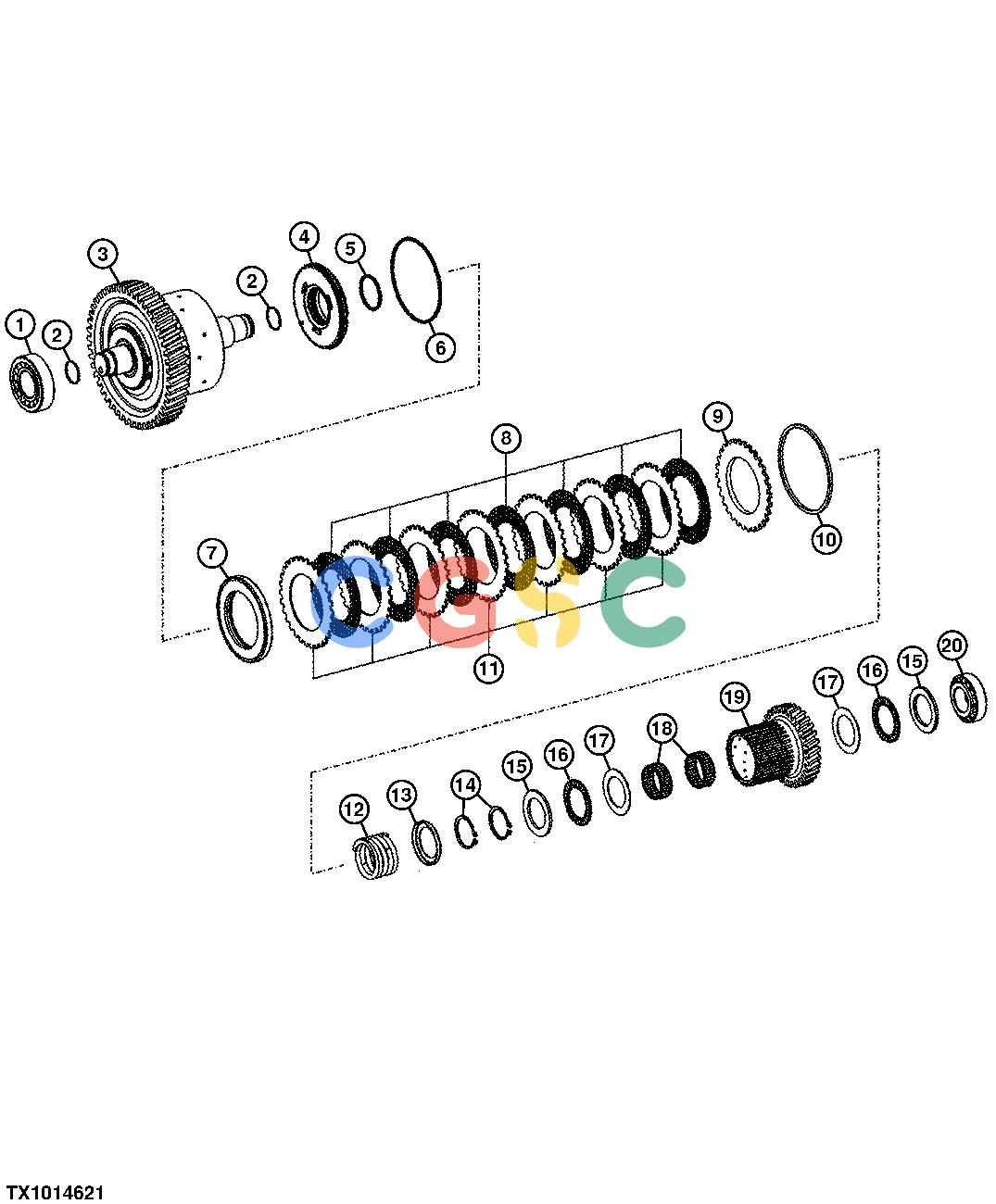

Pos.	Part No	Qty	Parts name	Comments
1.	AT435600	[1]	Tapered Roller Bearing	SUB FOR AT184042
2.	T158742	[2]	Ring
3.	AT339908	[1]	Modular Clutch
4.	T229403	[1]	Piston
5.	AT258980	[1]	O-Ring
6.	T229398	[1]	O-Ring
7.	AT364830	[1]	Round Retainer	SUB FOR (1) T229469
8.	AT339922	[7]	Clutch Disk
9.	T229340	[1]	Disk With Outer Spline
10.	T341153	[1]	Snap Ring	2.00 MM SUB FOR T262843 AND T229381
10.	T341154	[1]	Snap Ring	2.25 MM SUB FOR T262844 AND (1) T229352
10.	T341155	[1]	Snap Ring	2.50 MM SUB FOR T262845 AND (1) T229379
10.	T341156	[1]	Snap Ring	2.75 MM SUB FOR T262846 AND (1) T229359
10.	T341157	[1]	Snap Ring	3.00 MM SUB FOR T262847 AND T229380
10.	T341158	[1]	Snap Ring	3.25 MM SUB FOR T262848 AND T229364
10.	T341159	[1]	Snap Ring	3.50 MM SUB FOR T262870 AND T229341
10.	T341160	[1]	Snap Ring	3.75 MM
10.	T341161	[1]	Snap Ring	4.00 MM
11.	T229406	[7]	Plate
12.	T229346	[1]	Compression Spring	2.00 MM
13.	T229468	[1]	Round Retainer
14.	40M7058	[2]	Snap Ring
15.	T229356	[2]	Thrust Washer
16.	L77096	[2]	Needle Bearing	SUB FOR JD37406
17.	T158749	[2]	Thrust Washer
18.	AT339920	[2]	Needle Bearing
19.	T229411	[1]	Hub
20.	T341152	[1]	Tapered Roller Bearing	SUB FOR T158793
