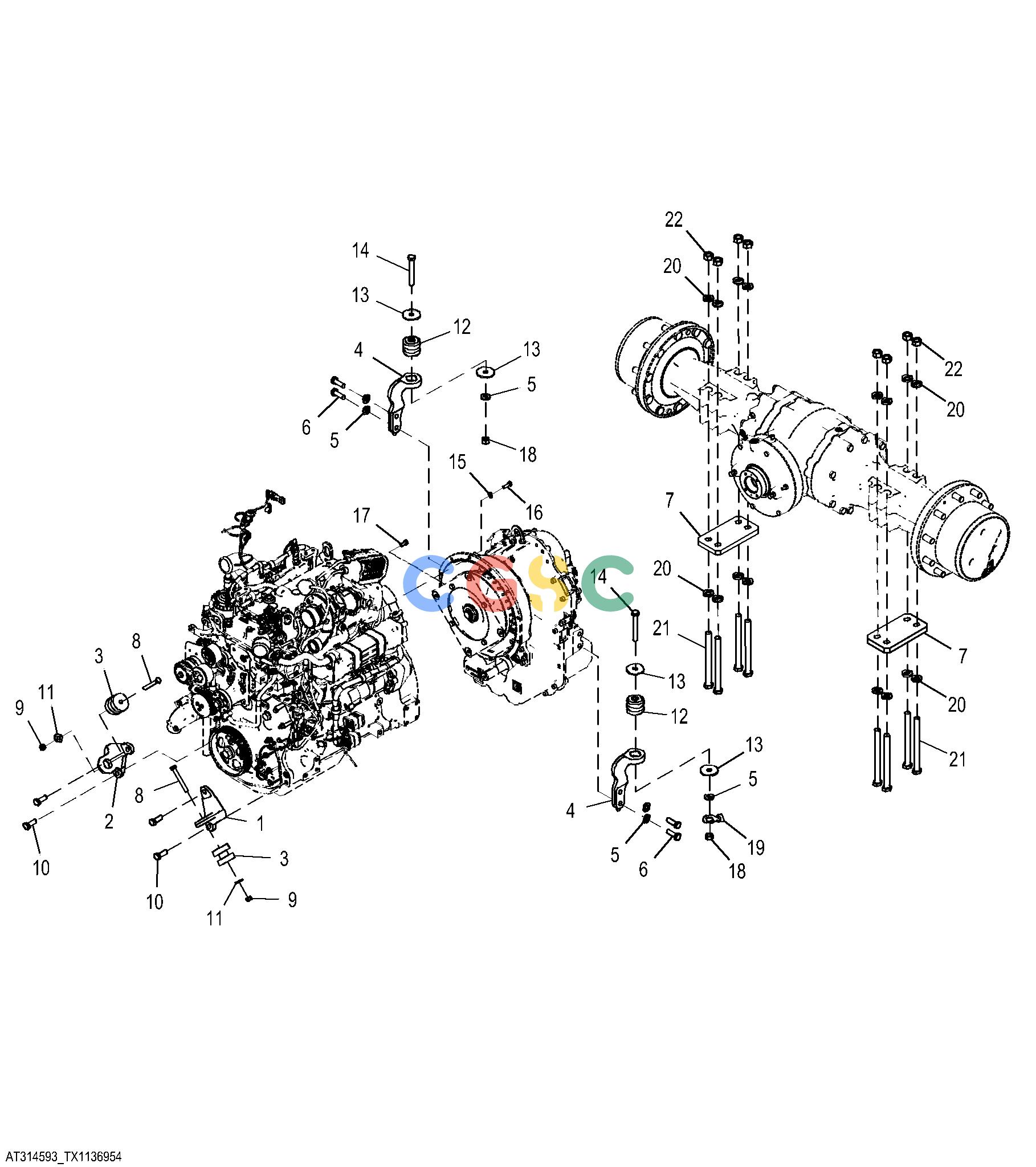

约翰迪尔零件查询310SK TC - BACKHOE, LOADER Power Train Mounting SupportsEPC John Deere online
广数供应链运营团队, 16 02月, 2025，浏览：
938 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
T187571
|
[1] |
Support
|
|
| 2. |
T170784
|
[1] |
Support
|
|
| 3. |
AT344141
|
[2] |
Isolator
|
|
| 4. |
T262417
|
[2] |
Support
|
|
| 5. |
24M7241
|
[6] |
Washer
|
|
| 6. |
19M7489
|
[4] |
Cap Screw
|
|
| 7. |
T147269
|
[2] |
Plate
|
|
| 8. |
19M7949
|
[2] |
Cap Screw
|
|
| 9. |
14M7275
|
[2] |
Nut
|
|
| 10. |
19M7488
|
[4] |
Cap Screw
|
|
| 11. |
T29342
|
[2] |
Washer
|
|
| 12. |
AT170854
|
[2] |
Isolator
|
|
| 13. |
T179952
|
[4] |
Washer
|
|
| 14. |
19M7941
|
[2] |
Cap Screw
|
|
| 15. |
24M7239
|
[12] |
Washer
|
|
| 16. |
19M7662
|
[12] |
Cap Screw
|
|
| 17. |
19M7402
|
[4] |
Cap Screw
|
|
| 18. |
14M7276
|
[2] |
Nut
|
|
| 19. |
N231749
|
[16] |
Washer
|
|
| 20. |
T33089
|
[16] |
Washer
|
|
| 21. |
14M7277
|
[8] |
Nut
|
|
| 22. |
14M7315
|
[8] |
Nut
|
|
