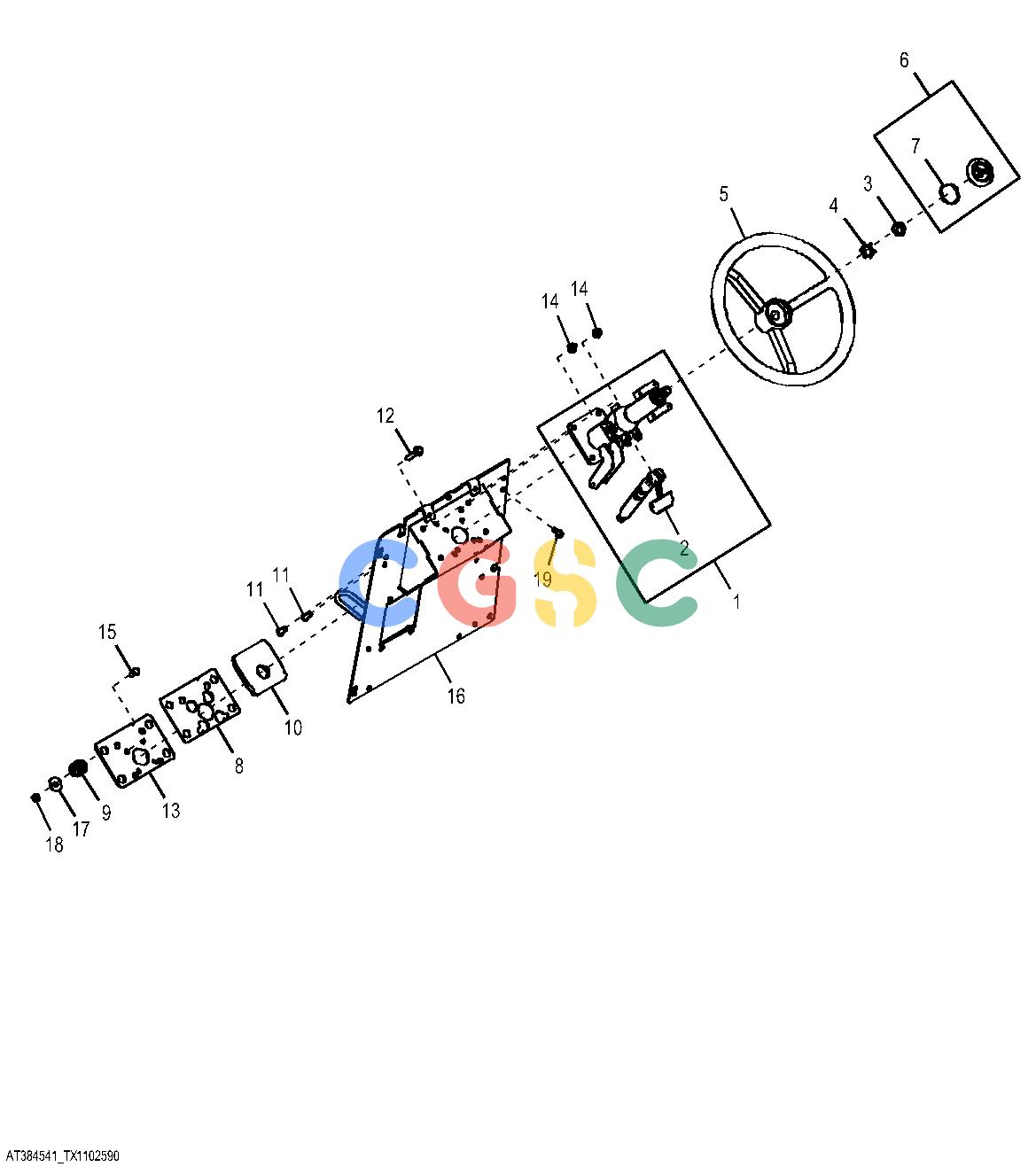

约翰迪尔零件查询310SK TC - BACKHOE, LOADER Tilt Steering ColumnEPC John Deere online
广数供应链运营团队, 16 02月, 2025，浏览：
772 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
AT362813
|
[1] |
Steering Column
|
|
| |
AT392657
|
[1] |
Steering Column Kit
|
|
| 2. |
AT362814
|
[1] |
Gas Operated Cylinder
|
|
| 3. |
T13630
|
[1] |
Nut
|
|
| 4. |
T17148
|
[1] |
Lock Washer
|
|
| 5. |
AT139694
|
[1] |
Steering Wheel
|
|
| 6. |
AL155227
|
[1] |
Cover
|
|
| 7. |
B3690R
|
[1] |
O-Ring
|
|
| 8. |
T216524
|
[1] |
Plate
|
|
| 9. |
AT219940
|
[4] |
Isolator
|
|
| 10. |
T216546
|
[1] |
Gasket
|
|
| 11. |
19M7402
|
[4] |
Cap Screw
|
|
| 12. |
19M8528
|
[4] |
Screw
|
|
| 13. |
T216525
|
[1] |
Plate
|
|
| 14. |
14M7400
|
[4] |
Lock Nut
|
|
| 15. |
19M7938
|
[4] |
Cap Screw
|
|
| 16. |
AT384540
|
[1] |
Support
|
|
| 17. |
24M7101
|
[4] |
Washer
|
|
| 18. |
14M7274
|
[4] |
Nut
|
|
| 19. |
19M7866
|
[1] |
Screw
|
|
