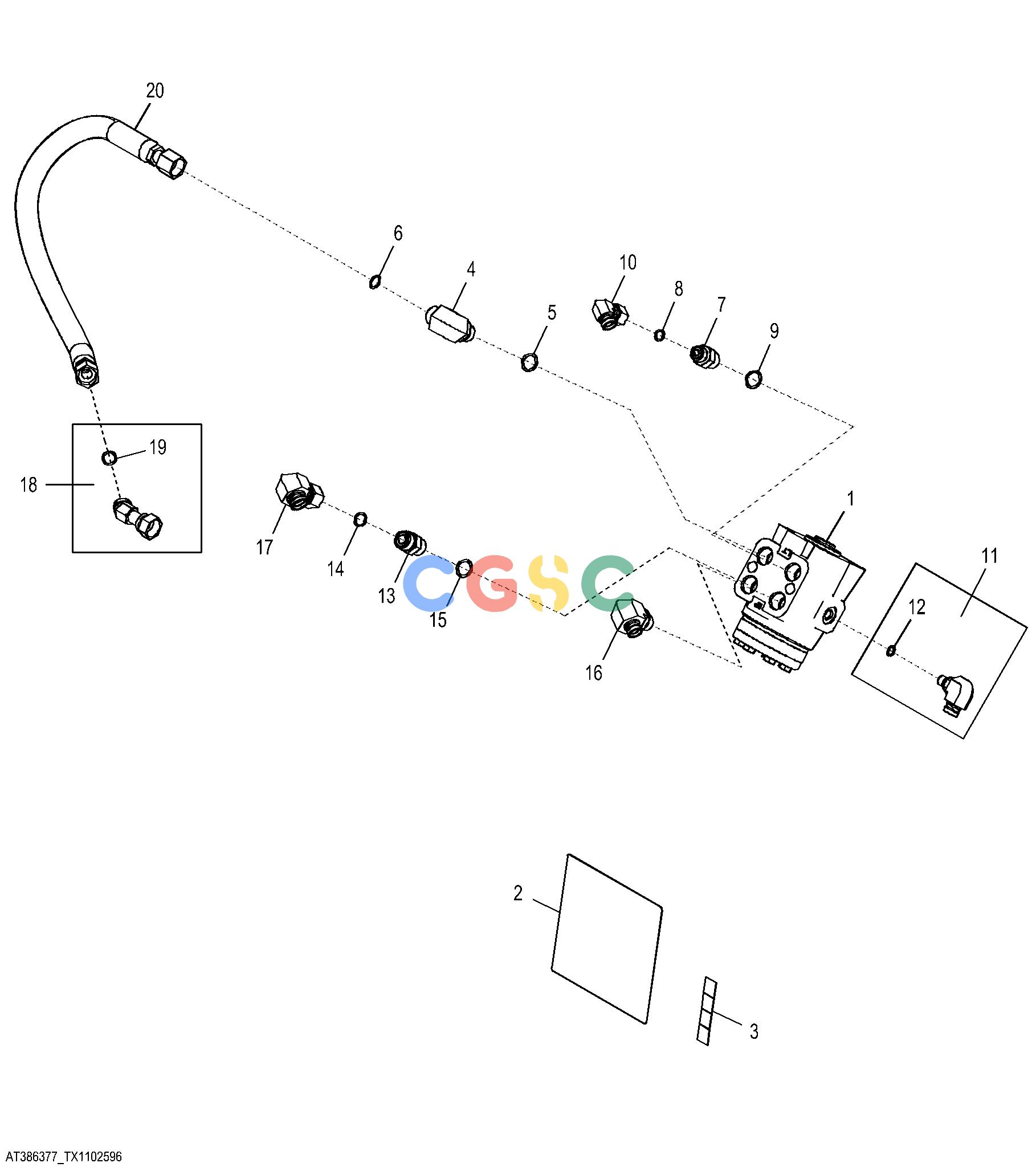

Pos.	Part No	Qty	Parts name	Comments
1.	AT309882	[1]	Manual Hydraulic Valve
	AT316249	[1]	Seal Kit
2.	T191425	[1]	Label	HOSE ROUTING
3.	T184320	[1]	Label	HOSE GUIDE
4.	AT190910	[1]	Elbow Fitting
5.	T77857	[1]	O-Ring	12.421 X 1.778 MM (0.489" X 0.070")
6.	AT101779	[1]	Hydraulic Hose - Fabricate
7.	38H1005	[1]	Elbow Fitting
8.	R26375	[1]	O-Ring	16.358 X 2.210 MM (0.644" X 0.087")
9.	T77857	[1]	O-Ring	12.421 X 1.778 MM (0.489" X 0.070")
10.	38H1171	[1]	Adapter Fitting
11.	T77613	[1]	O-Ring	9.250 X 1.780 MM (0.364" X 0.070")
12.	R26375	[1]	O-Ring	16.358 X 2.210 MM (0.644" X 0.087")
13.	AT195201	[1]	Elbow Fitting	-06
	AT193365	[1]	Seal Kit	STC REPAIR (-06)
14.	AT188010	[1]	Elbow Fitting	-06
	AT193365	[1]	Seal Kit	STC REPAIR (-06)
15.	R28782	[1]	O-Ring	8.915 X 1.829 MM (0.351" X 0.072")
16.	38H1161	[1]	Adapter Fitting
17.	T77857	[1]	O-Ring	12.421 X 1.778 MM (0.489" X 0.070")
18.	R26375	[1]	O-Ring	16.358 X 2.210 MM (0.644" X 0.087")
19.	AT195202	[1]	Elbow Fitting
	AT193365	[1]	Seal Kit	STC REPAIR (-06)
20.	AT195203	[1]	Elbow Fitting	-08
	AT193366	[1]	Seal Kit	STC REPAIR (-08)
