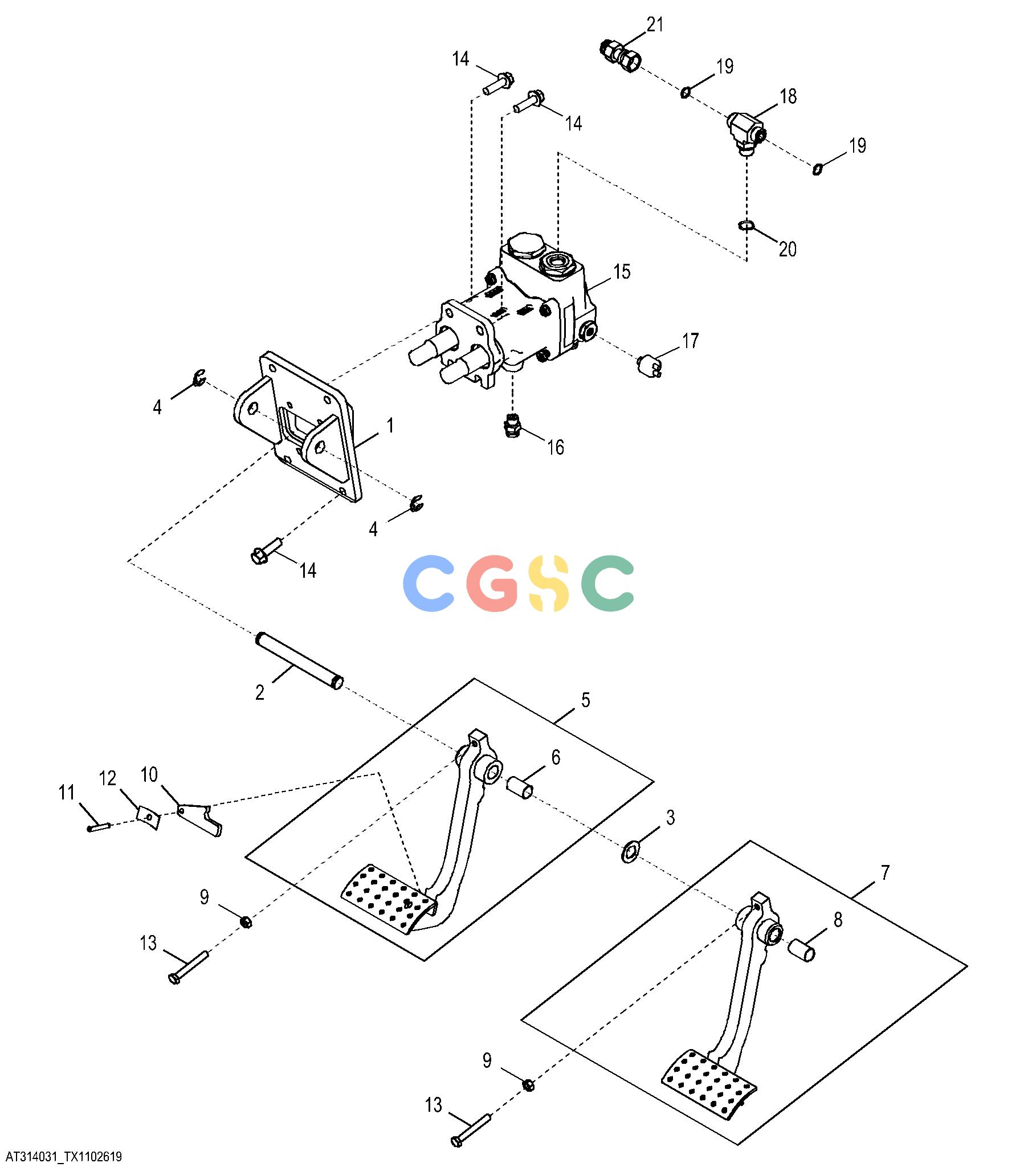

约翰迪尔零件查询310SK TC - BACKHOE, LOADER Brake Valve and PedalsEPC John Deere online
广数供应链运营团队, 16 02月, 2025，浏览：
983 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
AT359492
|
[1] |
Bracket
|
|
| 2. |
T165282
|
[1] |
Pin Fastener
|
|
| 3. |
24H1381
|
[1] |
Washer
|
|
| 4. |
F2863R
|
[2] |
Snap Ring
|
|
| 5. |
AT393831
|
[1] |
Pedal
|
|
| 6. |
B177R
|
[1] |
Bushing
|
|
| 7. |
AT393829
|
[1] |
Pedal
|
|
| 8. |
B177R
|
[1] |
Bushing
|
|
| 9. |
14M7273
|
[2] |
Nut
|
|
| 10. |
R221354
|
[1] |
Arm
|
|
| 11. |
34M7042
|
[1] |
Spring Pin
|
|
| 12. |
R50034
|
[1] |
Leaf Spring
|
|
| 13. |
19M10079
|
[2] |
Cap Screw
|
|
| 14. |
19M7835
|
[8] |
Screw
|
|
| 15. |
AT384853
|
[1] |
Manual Hydraulic Valve
|
|
| 16. |
AT187666
|
[5] |
Adapter Fitting
|
|
| |
AT193365
|
[1] |
Seal Kit
|
|
| |
R223848
|
[1] |
O-Ring
|
|
| |
R223856
|
[1] |
Back-Up Ring
|
|
| |
R223861
|
[1] |
Ring
|
|
| 17. |
AT393721
|
[2] |
Pressure Switch
|
|
| 18. |
38H1017
|
[1] |
Tee Fitting
|
|
| 19. |
T77857
|
[2] |
O-Ring
|
|
| 20. |
R26375
|
[1] |
O-Ring
|
|
| 21. |
AT280459
|
[1] |
Adapter Fitting
|
|
