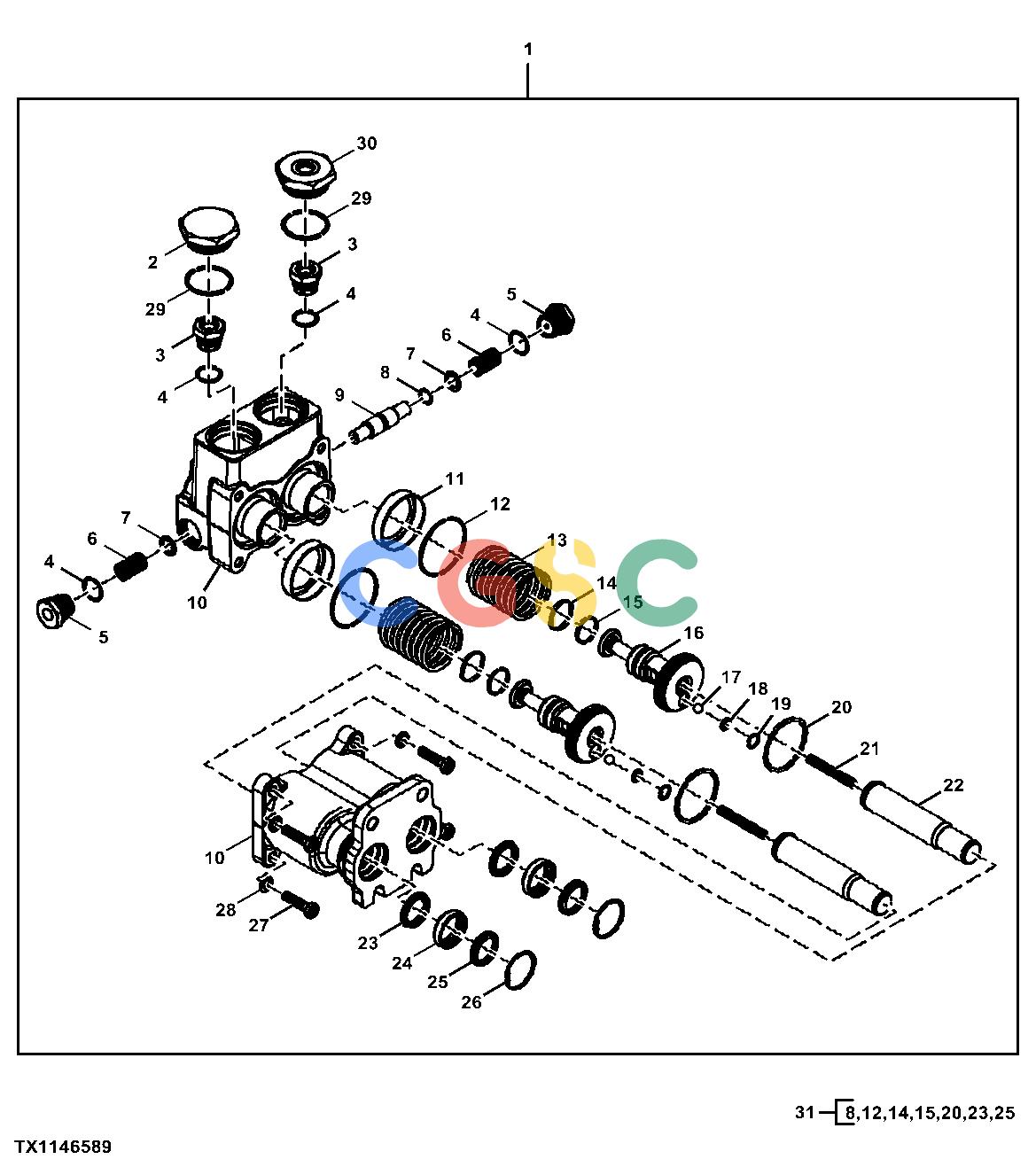

Pos.	Part No	Qty	Parts name	Comments
1.	AT430971	[1]	Manual Hydraulic Valve	1.250 IN. SUB FOR AT384853 CYLINDER PISTON DIAMETER
2.	T203374	[1]	Fitting Plug
3.	AT188343	[2]	Check Valve
4.	R26906	[4]	O-Ring
5.	T185926	[2]	Plug
6.	T285878	[2]	Spring	1.250 IN. CYLINDER PISTON DIAMETER MUST REPLACE BOTH RIGHT AND LEFT
7.	T183273	[2]	Washer
8.	........	[2]	Ring
9.	T183272	[1]	Piston
10.	........	[1]	Housing	ORDER (1) AT430971
11.	T183271	[2]	Retainer
12.	........	[2]	O-Ring
13.	T279172	[2]	Spring	1.250 IN. CYLINDER PISTON DIAMETER
14.	........	[2]	Seal
15.	........	[2]	Ring
16.	T279173	[2]	Piston	1.250 IN. CYLINDER PISTON DIAMETER
17.	R26552	[2]	Ball
18.	T185078	[2]	Lock Washer
19.	R48523	[2]	Snap Ring
20.	T183362	[2]	Piston Ring
21.	T183269	[2]	Spring
22.	AT192151	[2]	Push Rod
23.	........	[2]	Seal
24.	T183357	[2]	Retainer
25.	........	[2]	Seal
26.	M41029	[2]	Snap Ring
27.	19H1849	[4]	Cap Screw	5/16" X 1-1/4"
28.	T183310	[4]	Washer
29.	U13639	[2]	O-Ring
30.	T203385	[1]	Reducer
31.	AT387105	[1]	Seal Kit	BRAKE VALVE OVERHAUL REQUIRES 1 KIT PER VALVE
