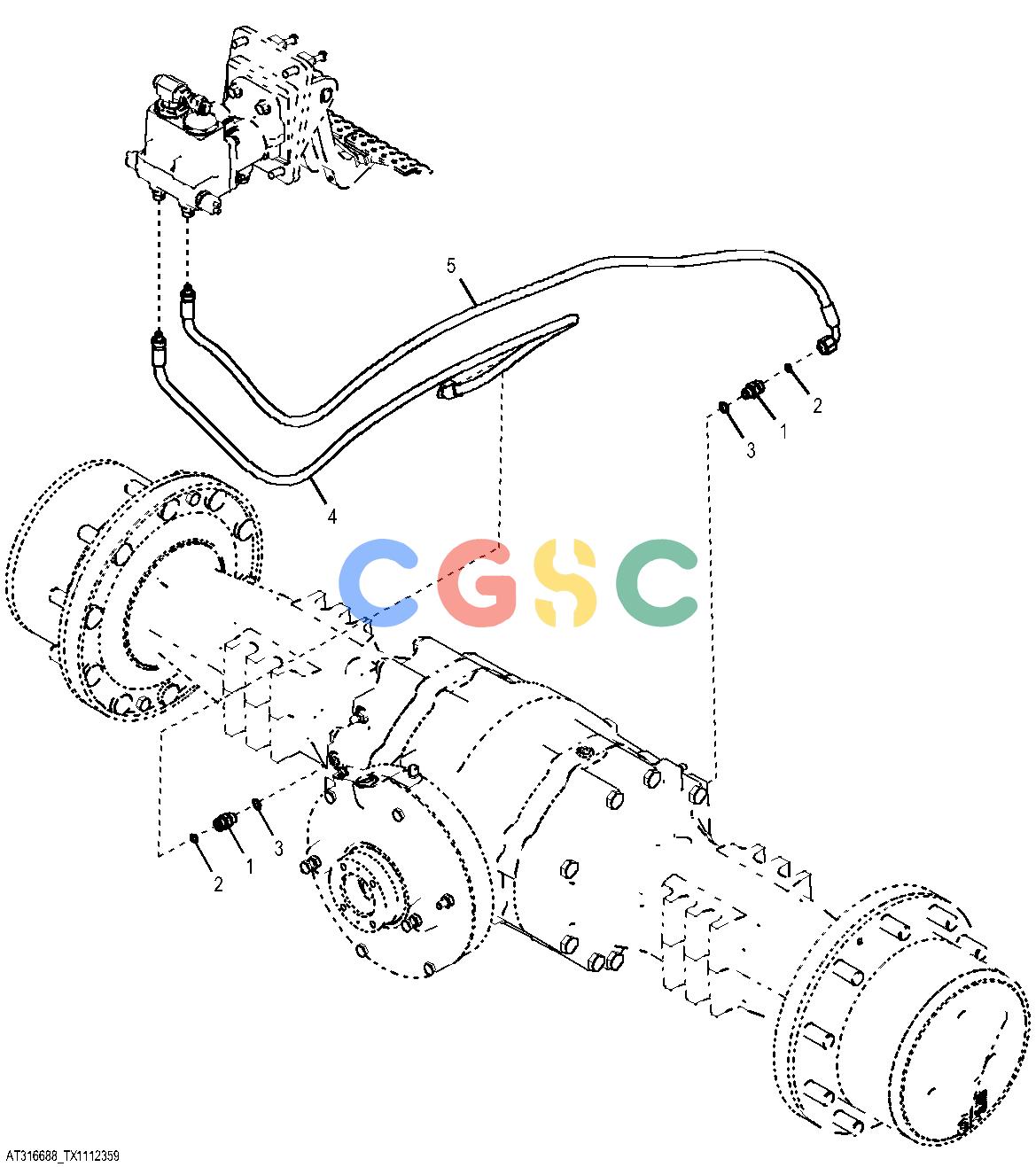

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 38H1160 | [2] | Adapter Fitting | |
| 2. | T77613 | [2] | O-Ring | 9.250 X 1.780 MM (0.364" X 0.070") |
| 3. | R26448 | [2] | O-Ring | 11.887 X 1.981 MM (0.468" X 5/64") |
| 4. | AT316689 | [1] | Hydraulic Hose - Fabricate | RIGHT BRAKE ALSO ORDER 62H1042 AND T77613 |
| 62H1042 | [1] | Adapter Fitting | NOT ILLUSTRATED | |
| T77613 | [1] | O-Ring | 9.250 X 1.780 MM (0.364" X 0.070") NOT ILLUSTRATED | |
| 5. | AT316690 | [1] | Hydraulic Hose - Fabricate | LEFT BRAKE ALSO ORDER 62H1042 AND T77613 |
| 62H1042 | [1] | Adapter Fitting | NOT ILLUSTRATED | |
| T77613 | [1] | O-Ring | 9.250 X 1.780 MM (0.364" X 0.070") NOT ILLUSTRATED |
