约翰迪尔零件查询310SK TC - BACKHOE, LOADER Hood and Side Panels (Engine 4045HT054, 4045HT063, 4045HT072, 4045HT073, 4045HT086, 4045HT087) ( - EPC John Deere online_约翰迪尔John Deere_工程机械

约翰迪尔零件查询310SK TC - BACKHOE, LOADER Hood and Side Panels (Engine 4045HT054, 4045HT063, 4045HT072, 4045HT073, 4045HT086, 4045HT087) ( - EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 1011 次

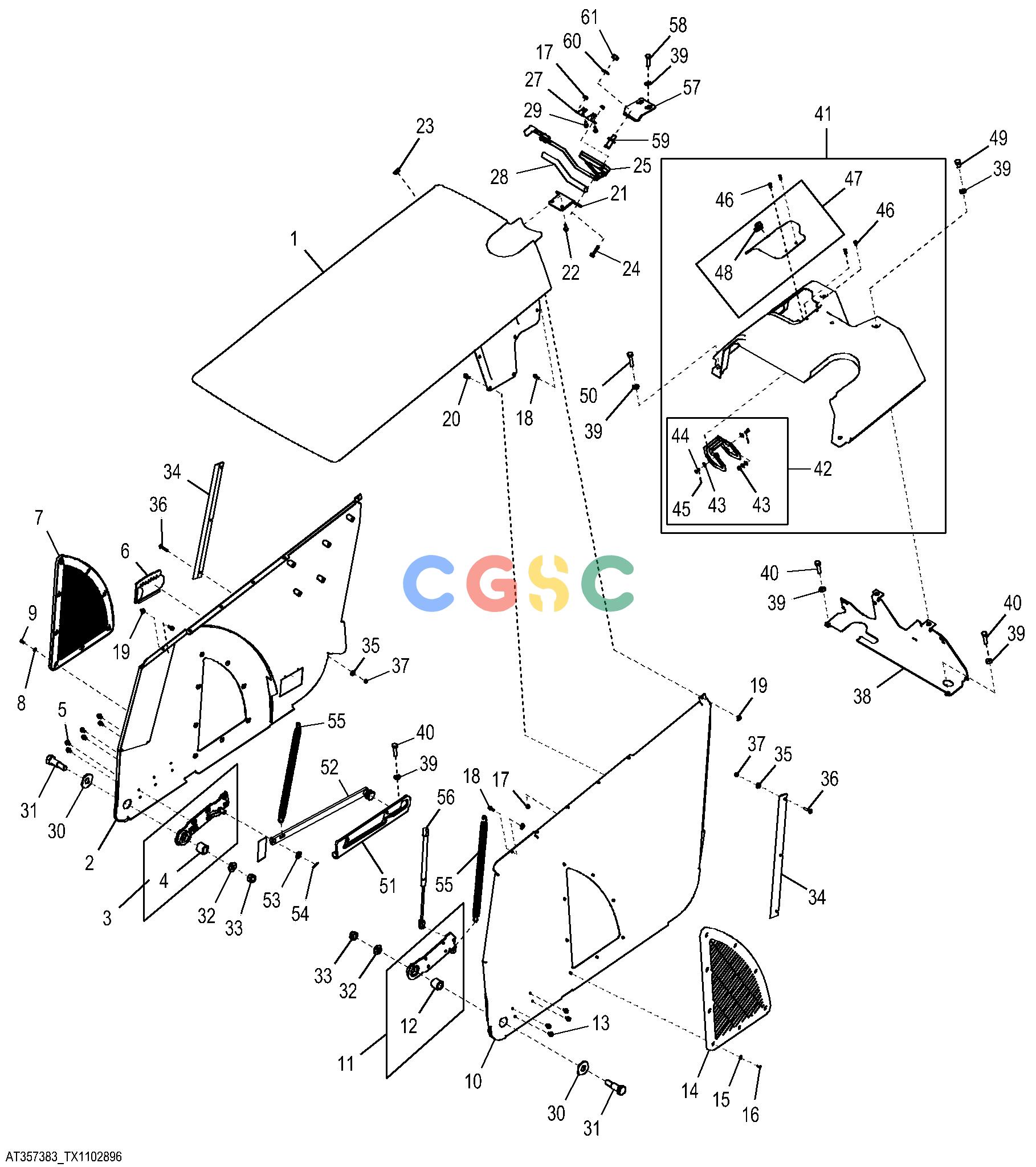

Pos.	Part No	Qty	Parts name	Comments
1.	AT375303	[1]	Hood
2.	T304510	[1]	Heat Shield
3.	T304511	[1]	Heat Shield
4.	T308716	[1]	Heat Shield
5.	AT378146	[1]	Hood	RIGHT
6.	AT375687	[1]	Pivot	RIGHT
7.	T165911	[1]	Bushing
8.	19M7861	[6]	Screw	M6 X 10
9.	AT408920	[1]	Handle
10.	T211121	[1]	Louver	RIGHT
11.	24M7146	[8]	Washer	4.300 X 12 X 1 MM
12.	21M7250	[8]	Screw	M4 X 12
13.	AT378145	[1]	Hood	LEFT
14.	AT378466	[1]	Pivot	LEFT
15.	T165911	[1]	Bushing
16.	19M7861	[4]	Screw	M6 X 10
17.	T211122	[1]	Louver	LEFT
18.	24M7146	[8]	Washer	4.300 X 12 X 1 MM
19.	21M7250	[8]	Screw	M4 X 12
20.	14M7303	[8]	Flange Nut	M6
21.	19M9203	[4]	Screw	M5 X 16 SUB FOR 19M9699
22.	T183773	[4]	Nut
23.	19M7775	[10]	Screw	M6 X 16
24.	T278461	[1]	Plate
25.	19M7862	[2]	Screw	M6 X 20
26.	T188642	[1]	Grommet
27.	AT426539	[1]	Latch	SUB FOR AT412300
28.	19M7863	[2]	Screw	M6 X 25
29.	T309417	[1]	Heat Shield
30.	24H1236	[2]	Washer	13/16" X 2" X 0.149"
31.	T308735	[2]	Bolt
32.	24M7241	[2]	Washer	17 X 34 X 4 MM
33.	14M7328	[2]	Lock Nut	M16
34.	T296536	[2]	Guide
35.	24M7139	[6]	Washer	6.400 X 18 X 1.600 MM
36.	19M8903	[6]	Screw	M6 X 30
37.	14M7272	[6]	Nut	M6
38.	AT418078	[1]	Support	NLA, ORDER AT437580
	AT437580	[1]	Support	ALSO ORDER (2) T331646, T331647, T339810, AND MT2485, SUB FOR AT418078 COMPONENTS ON SEPARATE PAGES
39.	24M7239	[11]	Washer	10.700 X 21 X 2.500 MM
40.	19M8637	[4]	Cap Screw	M10 X 40
41.	AT383707	[1]	Hood
42.	AT383690	[1]	Hinge
43.	24H1753	[8]	Washer	1/4" X 9/16" X 0.049"
44.	45M7075	[2]	Pin Fastener	6 X 14 MM
45.	11M7094	[2]	Cotter Pin	1.600 X 16 MM
46.	M67899	[4]	Rivet
47.	AT383705	[1]	Door
48.	AT112471	[1]	Lock
49.	19M7938	[2]	Cap Screw	M10 X 20
50.	19M8600	[2]	Cap Screw	M10 X 50
51.	T297220	[1]	Guide
52.	AT375674	[1]	Bar
53.	24M7047	[1]	Washer	13 X 24 X 2.500 MM
54.	11M7012	[1]	Cotter Pin	3.200 X 16 MM
55.	T165977	[2]	Extension Spring
56.	AT406286	[1]	Gas Operated Cylinder
57.	T342264	[1]	Angle	SUB FOR T318837
58.	19M7550	[2]	Cap Screw	M10 X 35
59.	T323338	[1]	Striker
60.	T105740	[1]	Washer
61.	14H1047	[1]	Nut	7/16"
