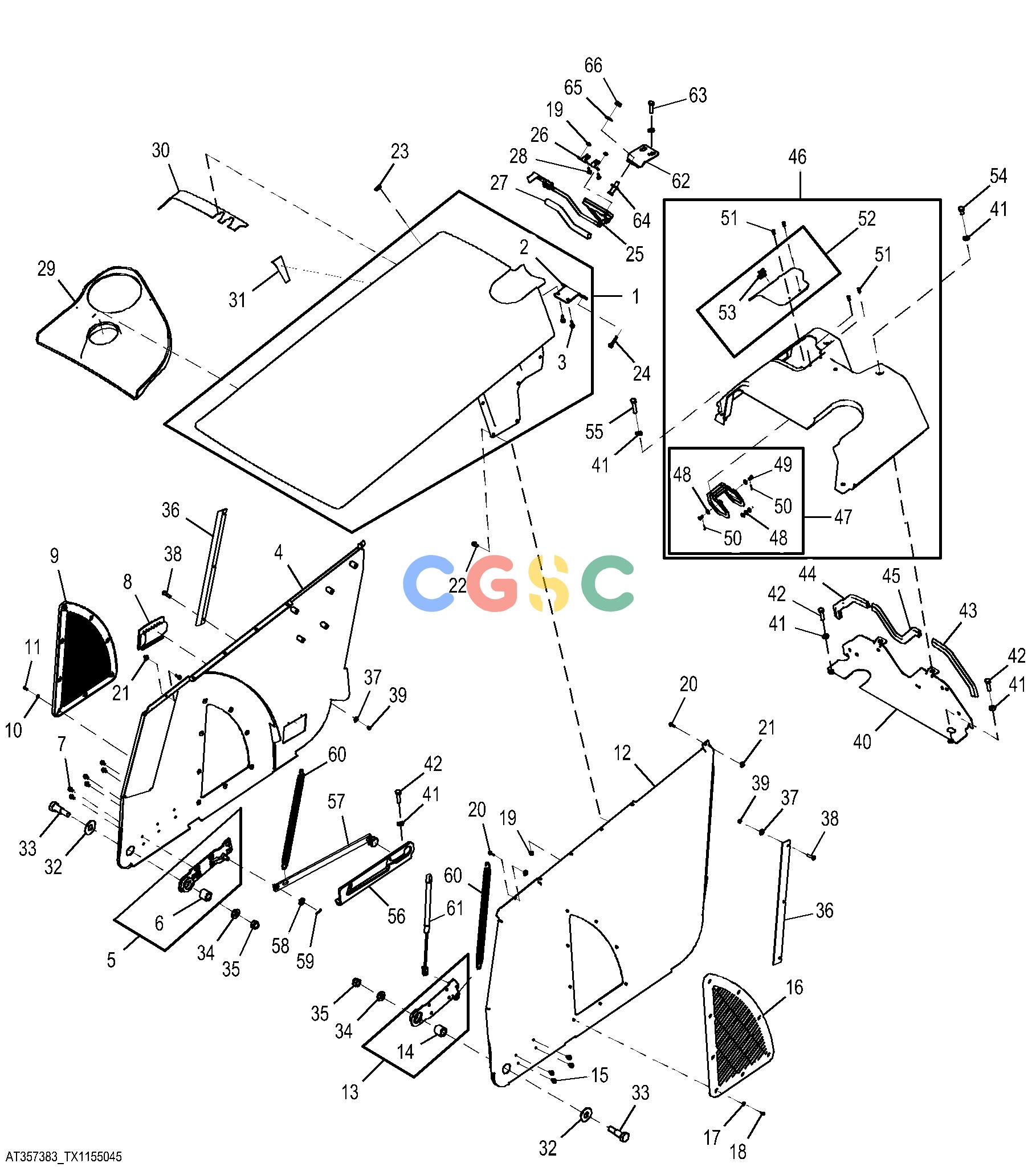

约翰迪尔零件查询310SK TC - BACKHOE, LOADER Hood and Side Panels (Engine 4045HT054, 4045HT063, 4045HT072, 4045HT073, 4045HT086, 4045HT087) (256EPC John Deere online_约翰迪尔John Deere_工程机械

约翰迪尔零件查询310SK TC - BACKHOE, LOADER Hood and Side Panels (Engine 4045HT054, 4045HT063, 4045HT072, 4045HT073, 4045HT086, 4045HT087) (256EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 768 次

Pos.	Part No	Qty	Parts name	Comments
1.	AT422472	[1]	Hood
2.	T278461	[1]	Plate
3.	19M7862	[2]	Screw	M6 X 20
4.	AT378146	[1]	Hood	RIGHT
5.	AT375687	[1]	Pivot	RIGHT
6.	T165911	[1]	Bushing
7.	19M7861	[6]	Screw	M6 X 10
8.	AT408920	[1]	Handle
9.	T211121	[1]	Louver	RIGHT
10.	24M7146	[8]	Washer	4.300 X 12 X 1 MM
11.	21M7250	[8]	Screw	M4 X 12
12.	AT378145	[1]	Hood	LEFT
13.	AT378466	[1]	Pivot	LEFT
14.	T165911	[1]	Bushing
15.	19M7861	[4]	Screw	M6 X 10
16.	T211122	[1]	Louver	LEFT
17.	24M7146	[8]	Washer	4.300 X 12 X 1 MM
18.	21M7250	[8]	Screw	M4 X 12
19.	14M7303	[10]	Flange Nut	M6
20.	19M9203	[4]	Screw	M5 X 16
21.	T183773	[4]	Nut
22.	19M7775	[10]	Screw	M6 X 16
23.	T188642	[1]	Grommet
24.	19M7833	[2]	Screw	M6 X 35
25.	AT426539	[1]	Latch
	AT426722	[1]	Rod
	T122370	[1]	Spring Locking Pin
26.	T334792	[1]	Bracket
27.	T309417	[1]	Heat Shield
28.	T335038	[2]	Cap Screw
29.	T308716	[1]	Heat Shield
30.	T304510	[1]	Heat Shield
31.	T304511	[1]	Heat Shield
32.	24H1236	[2]	Washer	13/16" X 2" X 0.149"
33.	T308735	[2]	Bolt
34.	24M7241	[2]	Washer	17 X 34 X 4 MM
35.	14M7328	[2]	Lock Nut	M16
36.	T296536	[2]	Guide
37.	24M7139	[6]	Washer	6.400 X 18 X 1.600 MM
38.	19M8903	[6]	Screw	M6 X 30
39.	14M7272	[6]	Nut	M6
40.	AT437580	[1]	Support
41.	24M7239	[11]	Washer	10.700 X 21 X 2.500 MM
42.	19M8637	[4]	Cap Screw	M10 X 40
43.	T331646	[1]	Isolator
44.	T331646	[1]	Isolator
45.	T331647	[1]	Isolator
46.	AT383707	[1]	Hood
47.	AT383690	[1]	Hinge
48.	24H1753	[8]	Washer	1/4" X 9/16" X 0.049"
49.	45M7075	[2]	Pin Fastener	6 X 14 MM
50.	11M7094	[2]	Cotter Pin	1.600 X 16 MM
51.	M67899	[4]	Rivet
52.	AT383705	[1]	Door
53.	AT112471	[1]	Lock
54.	19M7938	[2]	Cap Screw	M10 X 20
55.	19M8600	[2]	Cap Screw	M10 X 50
56.	T297220	[1]	Guide
57.	AT375674	[1]	Bar
58.	24M7047	[1]	Washer	13 X 24 X 2.500 MM
59.	11M7012	[1]	Cotter Pin	3.200 X 16 MM
60.	T165977	[2]	Extension Spring
61.	AT406286	[1]	Gas Operated Cylinder
62.	T342264	[1]	Angle
63.	19M7550	[2]	Cap Screw	M10 X 35
64.	T323338	[1]	Striker
65.	T105740	[1]	Washer
66.	14H1047	[1]	Nut	7/16"
