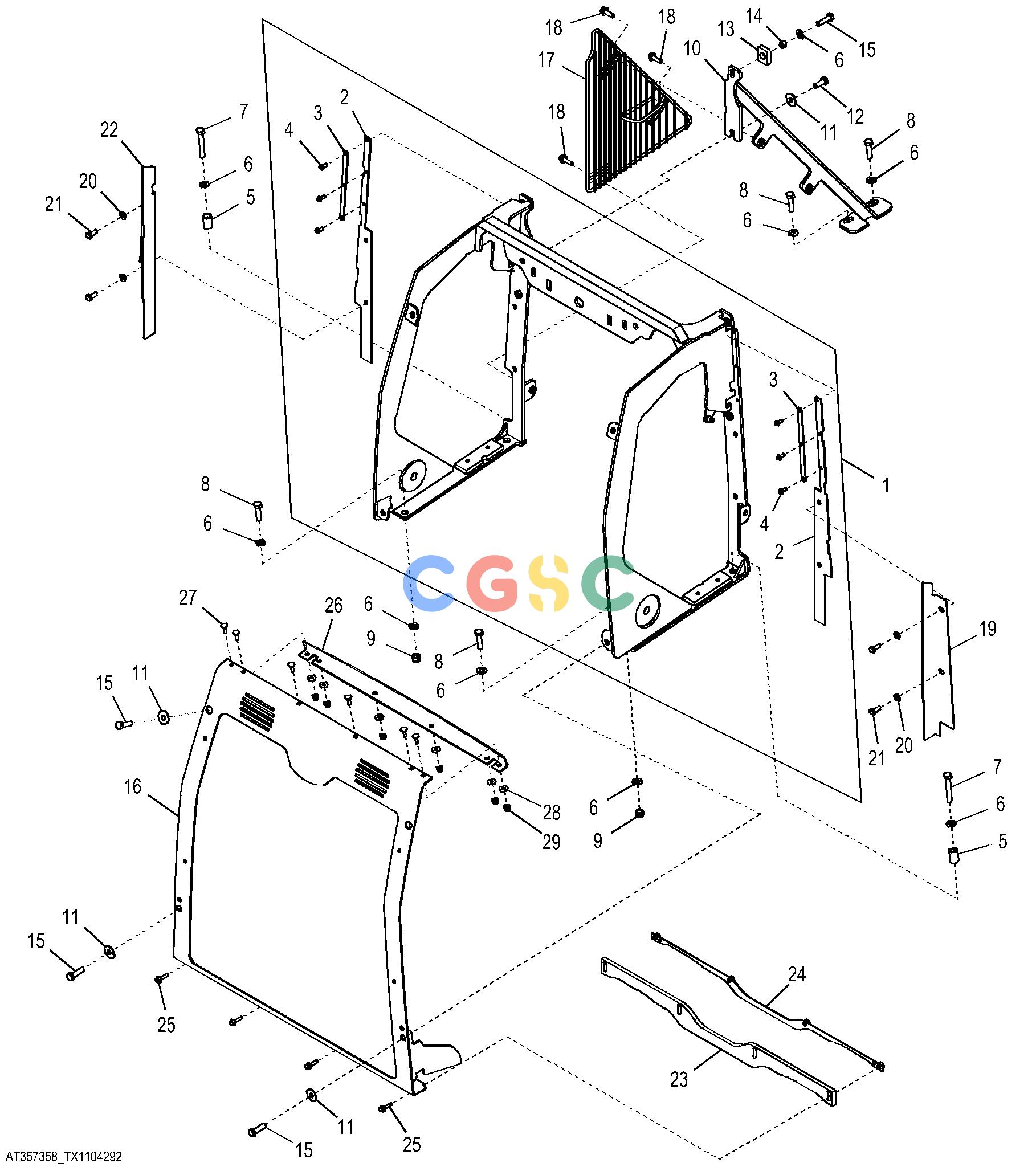

Pos.	Part No	Qty	Parts name	Comments
1.	AT388619	[1]	Frame
2.	T279510	[2]	Sealing Trim
3.	T293365	[2]	Strap
4.	37M7298	[6]	Screw
5.	T166772	[2]	Spacer
6.	24M7239	[9]	Washer	10.700 X 21 X 2.500 MM
7.	19M7875	[2]	Cap Screw	M10 X 70
8.	19M8637	[4]	Cap Screw	M10 X 40
9.	14M7517	[2]	Lock Nut	M10
10.	AT437283	[1]	Support	SUB FOR AT374260
11.	24M7296	[5]	Washer	10.500 X 30 X 2.500 MM
12.	19M7402	[1]	Cap Screw	M10 X 25
13.	T318325	[1]	Strap
14.	T318896	[1]	Washer
15.	19M7550	[5]	Cap Screw	M10 X 35
16.	AT404882	[1]	Grille
17.	AT380543	[1]	Guard
18.	19M7867	[3]	Screw	M8 X 25
19.	T342220	[1]	Bracket	SUB FOR T298611
20.	24M7238	[4]	Washer	8.700 X 17 X 2 MM
21.	19M7881	[4]	Screw	M8 X 20
22.	T342219	[1]	Bracket	SUB FOR T298612
23.	T308410	[1]	Deflector
24.	AT436464	[1]	Plate	AT411585
25.	19M7863	[4]	Screw	M6 X 25
26.	T309436	[1]	Deflector
27.	03M7222	[6]	Bolt	M6 X 20
28.	24M7139	[6]	Washer	6.400 X 18 X 1.600 MM
29.	14M7397	[6]	Lock Nut	M6
