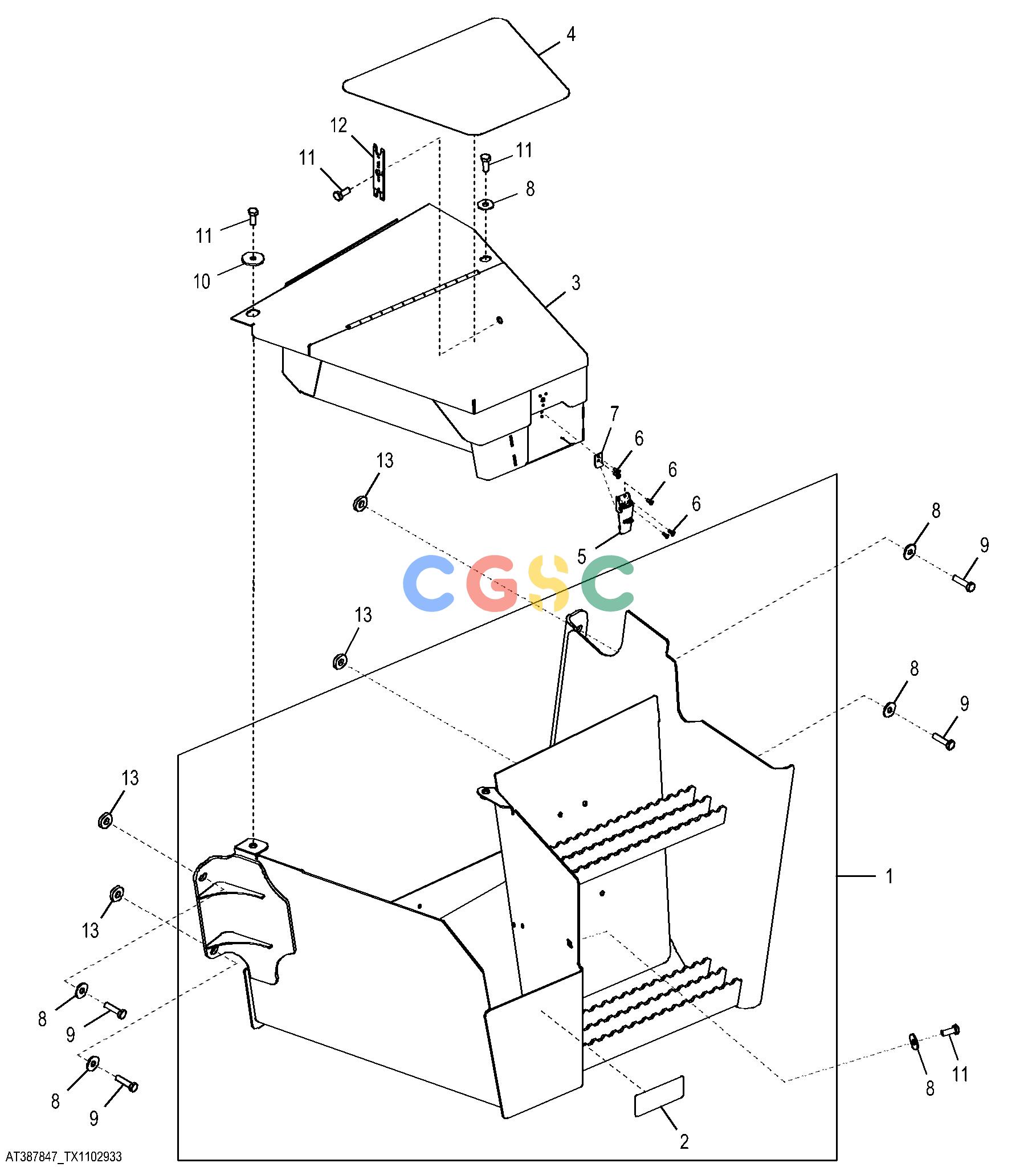

约翰迪尔零件查询310SK TC - BACKHOE, LOADER Battery Enclosure and Tool BoxEPC John Deere online
广数供应链运营团队, 16 02月, 2025，浏览：
131 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
AT387848
|
[1] |
Battery Box
|
|
| |
AT419074
|
[1] |
Battery Box
|
|
| 2. |
JD5944
|
[1] |
Reflector
|
|
| 3. |
AT332084
|
[1] |
Toolbox
|
|
| 4. |
T165290
|
[1] |
Anti-Skid Pad
|
|
| 5. |
AT332153
|
[1] |
Latch
|
|
| 6. |
AT333453
|
[5] |
Rivet
|
|
| 7. |
T227945
|
[1] |
Angle
|
|
| 8. |
24M7296
|
[6] |
Washer
|
|
| 9. |
19M8488
|
[4] |
Cap Screw
|
|
| |
19M8637
|
[4] |
Cap Screw
|
|
| 10. |
24H1718
|
[1] |
Washer
|
|
| 11. |
19M7402
|
[4] |
Cap Screw
|
|
| 12. |
T212304
|
[1] |
Tool
|
|
| 13. |
24M7478
|
[4] |
Washer
|
|
