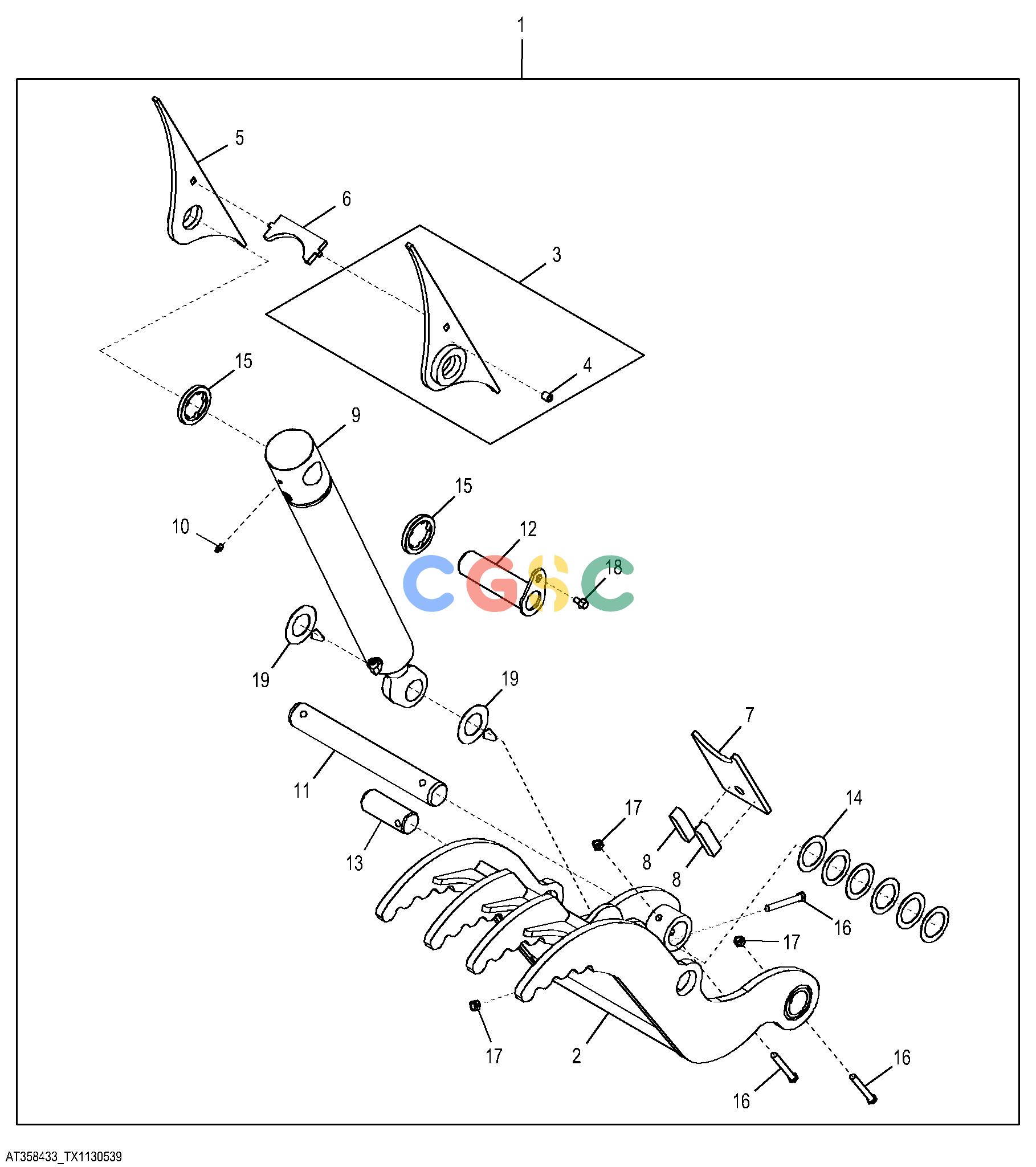

Pos.	Part No	Qty	Parts name	Comments
1.	AT358433	[1]	Grapple	WHOLE GOODS
2.	AT356864	[1]	Clamp
3.	AT356865	[2]	Bracket	NLA, ORDER AT436604 AND AT436605 STANDARD DIPPERSTICK
	AT356866	[2]	Bracket	EXTENDABLE DIPPERSTICK
	AT436604	[1]	Bracket	RH, REQUIRES AT436605 STANDARD DIPPERSTICK
4.	T238886	[1]	Bushing
5.	AT436605	[1]	Bracket	LH, REQUIRES AT436604 STANDARD DIPPERSTICK
6.	T244678	[1]	Plate	STANDARD DIPPERSTICK
	T244683	[1]	Plate	EXTENDABLE DIPPERSTICK
7.	T244679	[1]	Plate
8.	T244680	[2]	Plate
9.	AHC11115	[1]	Hydraulic Cylinder	COMPONENTS LISTED ON SEPARATE PAGE
10.	T162396	[1]	Lubrication Fitting
11.	T244674	[1]	Pin Fastener
12.	AT356868	[1]	Pin Fastener
13.	T244675	[1]	Pin Fastener
14.	24H1679	[6]	Washer	2-17/64" X 3-1/4" X 0.060"
15.	T160303	[2]	Spacer	11 MM WIDE STANDARD DIPPERSTICK
	T160300	[2]	Wear Plate	5.5 MM WIDE EXTENDABLE DIPPERSTICK
16.	19M7949	[3]	Cap Screw	M12 X 100
17.	14M7319	[3]	Lock Nut	M12
18.	19M7784	[1]	Screw	M10 X 20
19.	T223740	[2]	Shim
