约翰迪尔零件查询310SK TC - BACKHOE, LOADER GRAPPLE BUCKETEPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 571 次

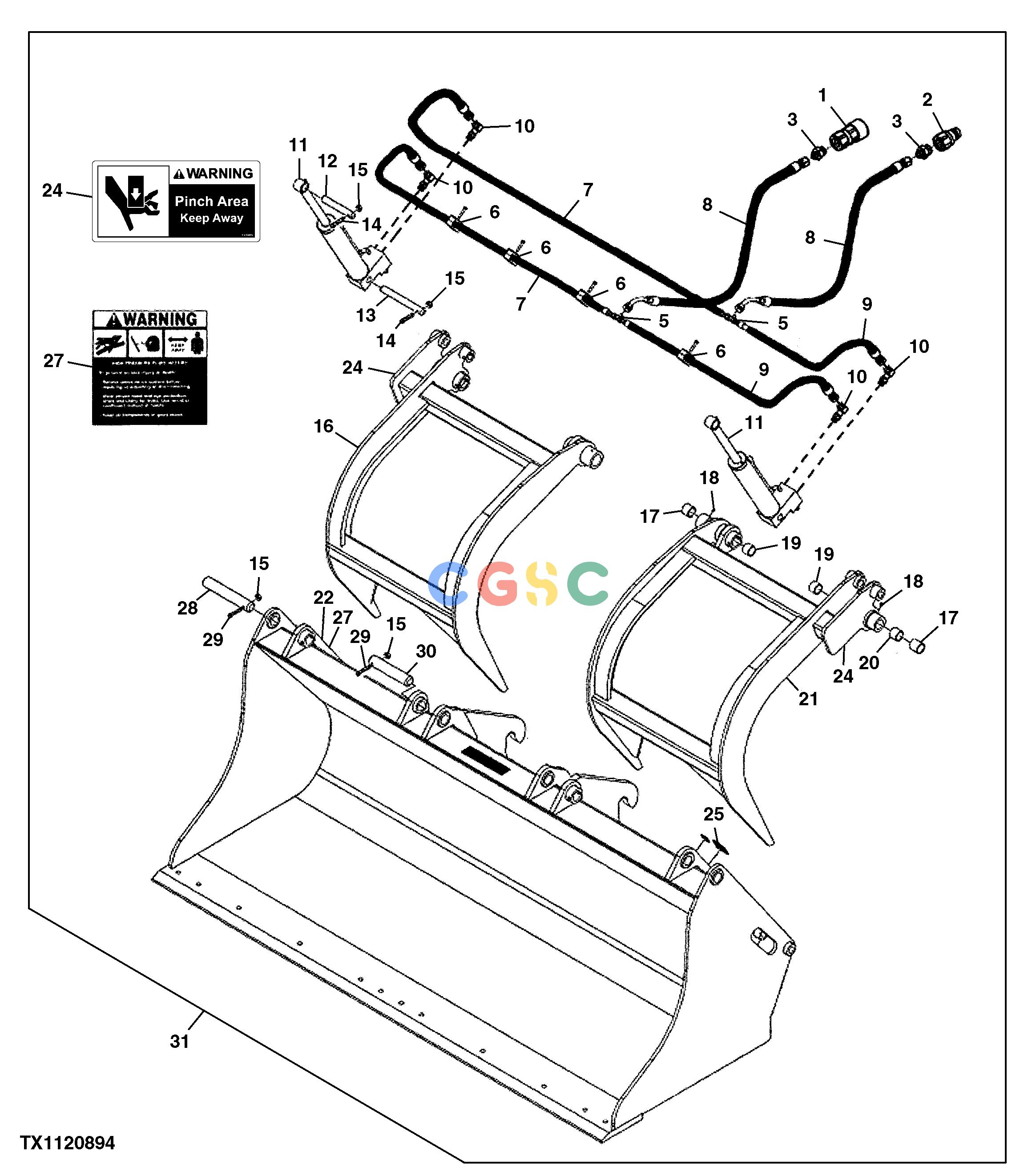

Pos.	Part No	Qty	Parts name	Comments
1.	KV14216	[1]	Hyd. Quick-Connect Coupler	FEMALE
2.	AT312470	[1]	Hyd. Quick-Connect Coupler	MALE
2.	U12547	[2]	O-Ring	23.470 X 2.946 MM (0.924" X 0.116")
3.	X6-12FOX-S	[2]	Fitting
5.	T20926	[2]	Tee Fitting
6.	AT425680	[4]	Clamp
7.	AT425689	[2]	Hydraulic Hose - Fabricate	.380 IN. X 76.0 IN.
8.	AT425692	[2]	Hydraulic Hose - Fabricate	.380 IN. X 52.0 IN.
9.	AT425693	[2]	Hydraulic Hose - Fabricate	.380 IN. X 23.0 IN.
10.	AT35121	[4]	Elbow Fitting
10.	R26448	[4]	O-Ring	11.887 X 1.981 MM (0.468" X 5/64")
11.	AT421438	[2]	Hydraulic Cylinder	COMPONENTS ON SEPERATE PAGE
12.	T323551	[2]	Pin
13.	T323553	[2]	Pin
14.	19H1726	[4]	Cap Screw	3/8" X 2-1/4"
15.	T54568	[8]	Lock Nut
16.	AT421440	[1]	Grapple
17.	T323554	[4]	Bushing
18.	JD7759	[4]	Lubrication Fitting
19.	T323555	[4]	Bushing
20.	T323556	[2]	Spacer
21.	AT421439	[1]	Grapple
22.	T329760	[1]	Label	MODEL DESIGNATION GS88
23.	AT421444	[1]	Loader Bucket
24.	KV10895	[2]	Safety Sign	WARNING - PINCH POINT ENGLISH
24.	T225827	[2]	Safety Sign	SPANISH
24.	T225828	[2]	Safety Sign	FRENCH
25.	T281026	[1]	Serial Number Plate
27.	T331420	[1]	Label	WARNING - HIGH PRESSURE FLUID ENGLISH
27.	T331430	[1]	Label	SPANISH
27.	T331431	[1]	Label	FRENCH
28.	T323557	[2]	Pin
29.	19H2732	[4]	Cap Screw	3/8" X 2-3/4"
30.	T323558	[2]	Pin
31.	AT422301	[1]	Loader Bucket	WHOLE GOODS
