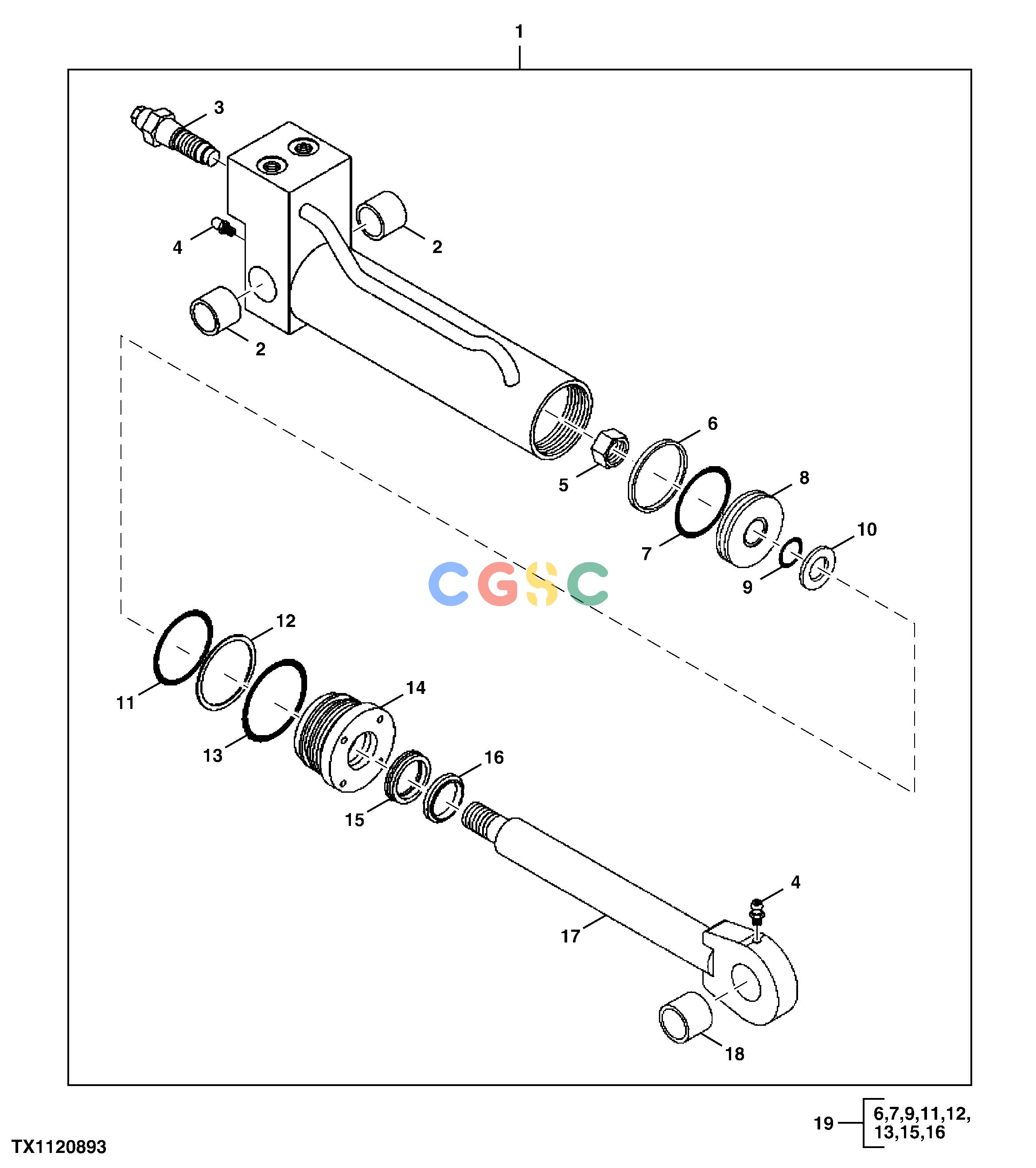

约翰迪尔零件查询310SK TC - BACKHOE, LOADER Grapple Bucket CylinderEPC John Deere online
广数供应链运营团队, 16 02月, 2025，浏览：
318 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
AT421438
|
[1] |
Hydraulic Cylinder
|
|
| 2. |
T328306
|
[2] |
Bushing
|
|
| 3. |
AT424733
|
[1] |
Pressure Relief Valve
|
|
| 4. |
JD7797
|
[2] |
Lubrication Fitting
|
|
| 5. |
T328308
|
[1] |
Nut
|
|
| 6. |
........
|
[1] |
Piston Ring
|
|
| 7. |
........
|
[1] |
O-Ring
|
|
| 8. |
T328309
|
[1] |
Piston
|
|
| 9. |
........
|
[1] |
O-Ring
|
|
| 10. |
T328310
|
[1] |
Washer
|
|
| 11. |
........
|
[1] |
O-Ring
|
|
| 12. |
........
|
[1] |
O-Ring
|
|
| 13. |
........
|
[1] |
O-Ring
|
|
| 14. |
T328311
|
[1] |
Hydr. Cylinder Rod Guide
|
|
| 15. |
........
|
[1] |
Seal
|
|
| 16. |
........
|
[1] |
Seal
|
|
| 17. |
AT424738
|
[1] |
Hydraulic Cylinder Rod
|
|
| 18. |
T328307
|
[1] |
Bushing
|
|
| 19. |
AT424989
|
[1] |
Seal Kit
|
|
