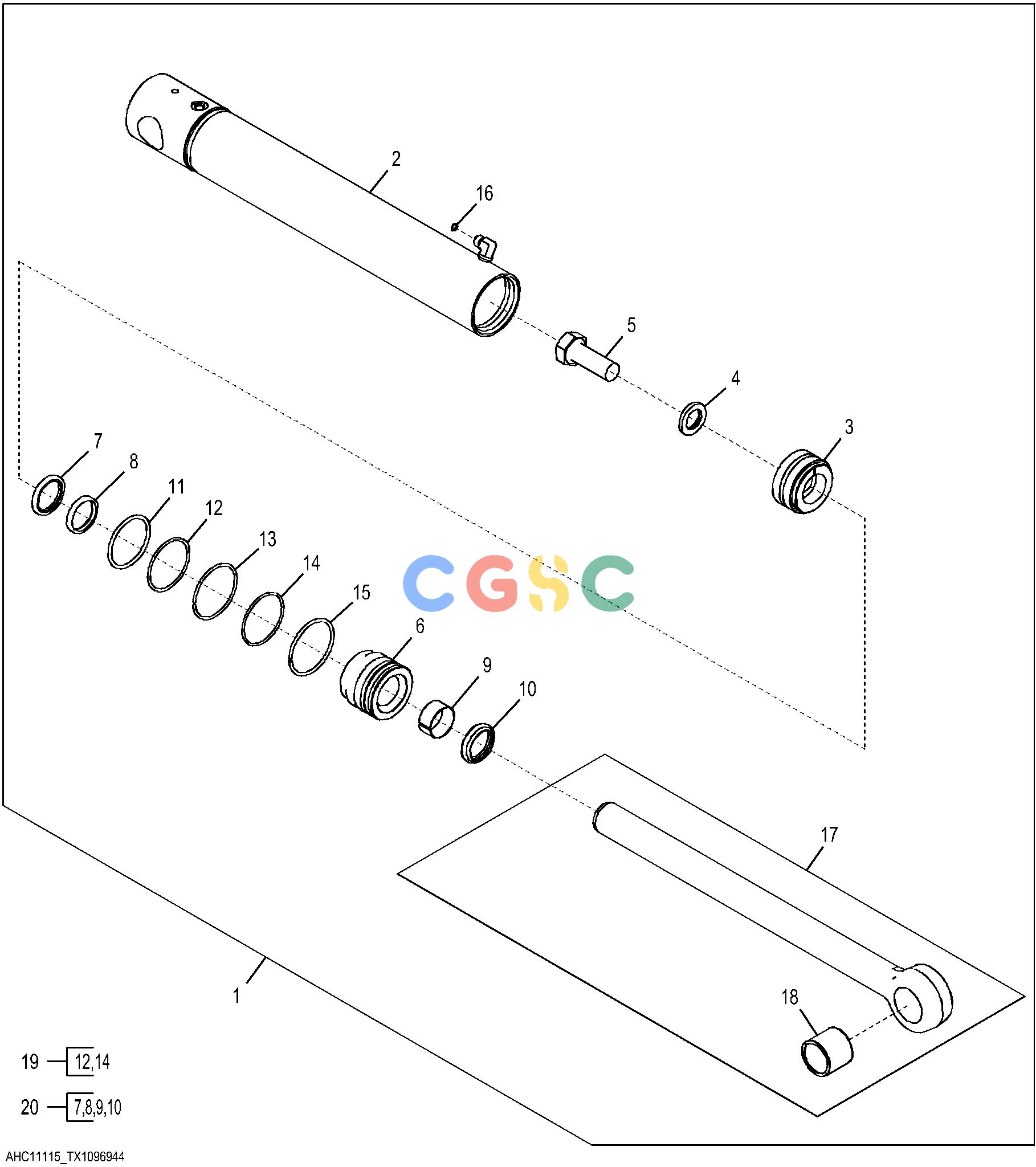

约翰迪尔零件查询310SK TC - BACKHOE, LOADER Hydraulic Thumb Cylinder (207436 - )EPC John Deere online
广数供应链运营团队, 16 02月, 2025，浏览：
789 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
AHC11115
|
[1] |
Hydraulic Cylinder
|
|
| 2. |
AHC11285
|
[1] |
Hydraulic Cylinder Barrel
|
|
| 3. |
AH205060
|
[1] |
Piston
|
|
| 4. |
H145175
|
[1] |
Washer
|
|
| 5. |
19M8353
|
[1] |
Cap Screw
|
|
| 6. |
HC10929
|
[1] |
Hydr. Cylinder Rod Guide
|
|
| 7. |
AH146561
|
[1] |
Seal
|
|
| 8. |
H152203
|
[1] |
Seal
|
|
| 9. |
H208987
|
[1] |
Wear Ring
|
|
| 10. |
AHC10164
|
[1] |
Seal
|
|
| 11. |
F1430R
|
[1] |
O-Ring
|
|
| 12. |
R79101
|
[1] |
Back-Up Ring
|
|
| 13. |
H180103
|
[1] |
Snap Ring
|
|
| 14. |
H181114
|
[1] |
O-Ring
|
|
| 15. |
H206859
|
[1] |
Snap Ring
|
|
| 16. |
T77613
|
[1] |
O-Ring
|
|
| 17. |
AH147902
|
[1] |
Hydraulic Cylinder Rod
|
|
| 18. |
H154404
|
[1] |
Bushing
|
|
| 19. |
AH212097
|
[1] |
Hydraulic Cylinder Kit
|
|
| 20. |
AHC11573
|
[1] |
Hydraulic Cylinder Kit
|
|
