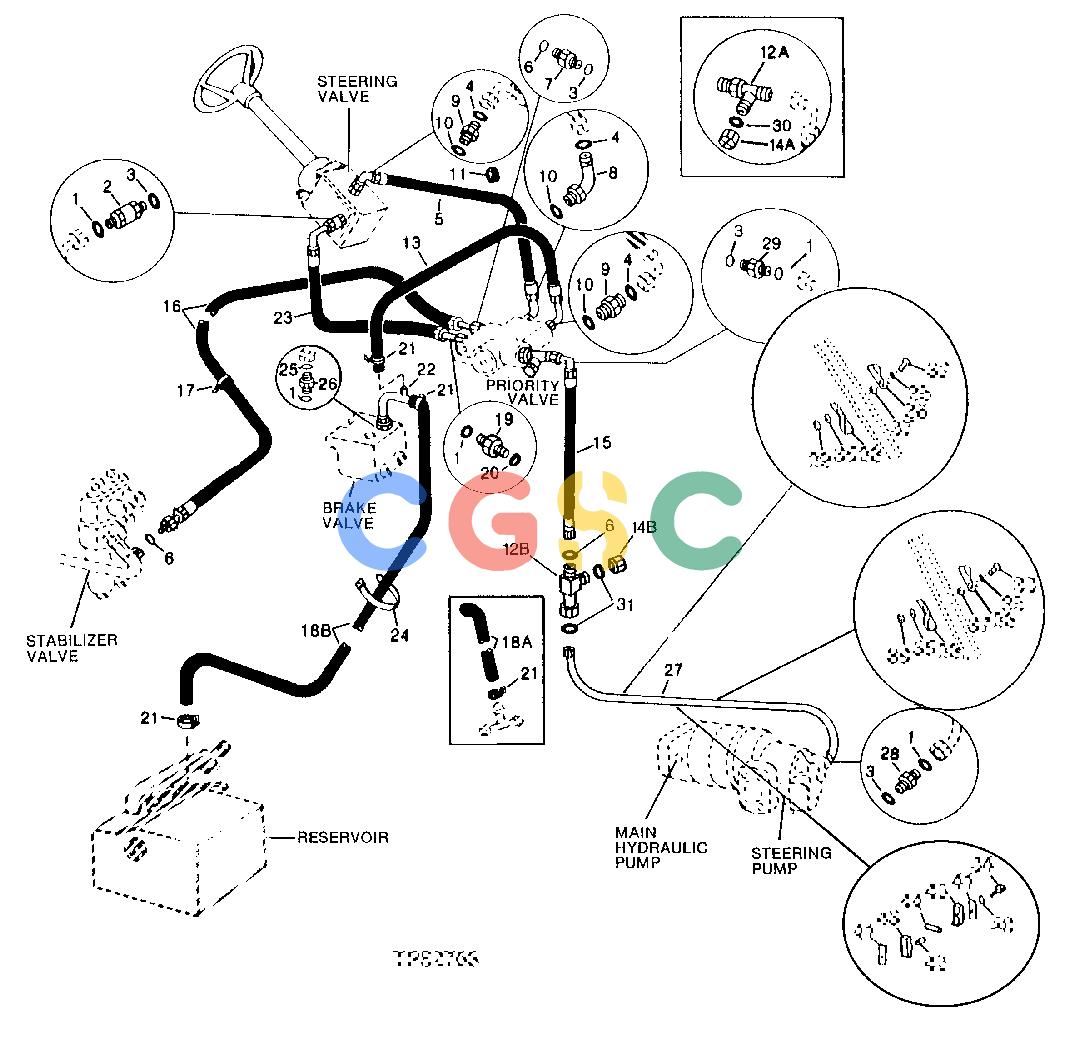

约翰迪尔零件查询315C - BACKHOE, LOADER STEERING PRIORITY VALVE AND BRAKE VALVE HYDRAULICS [01I12]EPC John Deere online_约翰迪尔John Deere_工程机械

约翰迪尔零件查询315C - BACKHOE, LOADER STEERING PRIORITY VALVE AND BRAKE VALVE HYDRAULICS [01I12]EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 326 次

Pos.	Part No	Qty	Parts name	Comments
1.	T77857	[4]	O-Ring
2.	AT132903	[1]	Check Valve	(SUB FOR AT83307 AND AT107698)
3.	R26375	[4]	O-Ring
4.	T77814	[3]	O-Ring
5.	AT101577	[1]	Hydraulic Hose - Fabricate	9/16" X 490 MM (19-1/4") X 9/16"
6.	T77613	[3]	O-Ring
7.	38H1171	[1]	Adapter Fitting
8.	38H1003	[1]	Elbow Fitting
9.	38H1159	[2]	Adapter Fitting
10.	R28782	[3]	O-Ring
11.	T58739	[1]	Grommet
12A.	38H1024	[1]	Tee Fitting
12B.	38H1030	[1]	Tee Fitting
13.	AT101576	[1]	Hydraulic Hose - Fabricate	9/16" X 445 MM (17-1/2") X 1/4"
14A.	38H1416	[1]	Fitting
14B.	38H1415	[1]	Fitting
15.	AT150239	[1]	Hydraulic Hose - Fabricate	(SUB FOR AT101770)
16.	AT150240	[1]	Hydraulic Hose - Fabricate	(SUB FOR AT101771)
17.	H77698	[AR]	Tie Band	(SUB FOR T44946)
18A.	........	[AR]	Hydraulic Hose	(MAKE FROM M87571 BULK MATERIAL, CUT TO LENGTH)
18B.	........	[AR]	Hydraulic Hose	(MAKE FROM M87571 BULK MATERIAL, CUT TO LENGTH)
19.	38H1173	[1]	Adapter Fitting
20.	R26448	[1]	O-Ring
21.	TY22462	[4]	Clamp	(SUB FOR AR48236)
21.	TY22462	[3]	Clamp	(SUB FOR AR48236)
22.	AT106629	[1]	Oil Line
23.	AT101592	[1]	Hydraulic Hose - Fabricate	13/16" X 500 MM (19-3/4") X 13/16"
24.	R44302	[AR]	Tie Band
25.	R29936	[1]	O-Ring
26.	38H1176	[1]	Adapter Fitting
27.	........	[1]	Oil Line	(A) (SUB AT172139) (SUB FOR AT101768 AND AT124351)
28.	38H1161	[1]	Adapter Fitting
29.	38H1161	[1]	Adapter Fitting
30.	T77857	[1]	O-Ring
31.	T77613	[2]	O-Ring
32.	19M7513	[1]	Cap Screw	(A) M8 X 30
33.	19M7922	[1]	Cap Screw	(A) M8 X 40
34.	19H2963	[1]	Cap Screw	(A) 9/16" X 3-1/2"
35.	24M7238	[4]	Washer	(A) 8.700 X 17 X 2 MM
36.	T24958	[2]	Clip	(A)
37.	28H3381	[2]	Spacer	(A)
38.	R72659	[2]	Clamp	(A)
39.	14M7273	[2]	Nut	(A) M8
40.	T18407	[1]	Washer	(A)
41.	A20682	[2]	Strap	(A)
42.	28H1981	[1]	Bushing	(A)
43.	T152697	[1]	Clamp	(A)
44.	T438T	[1]	Hose	(A)
