约翰迪尔零件查询315C - BACKHOE, LOADER STEERING HYDRAULIC HOSES AND LINES [01I14]EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 824 次

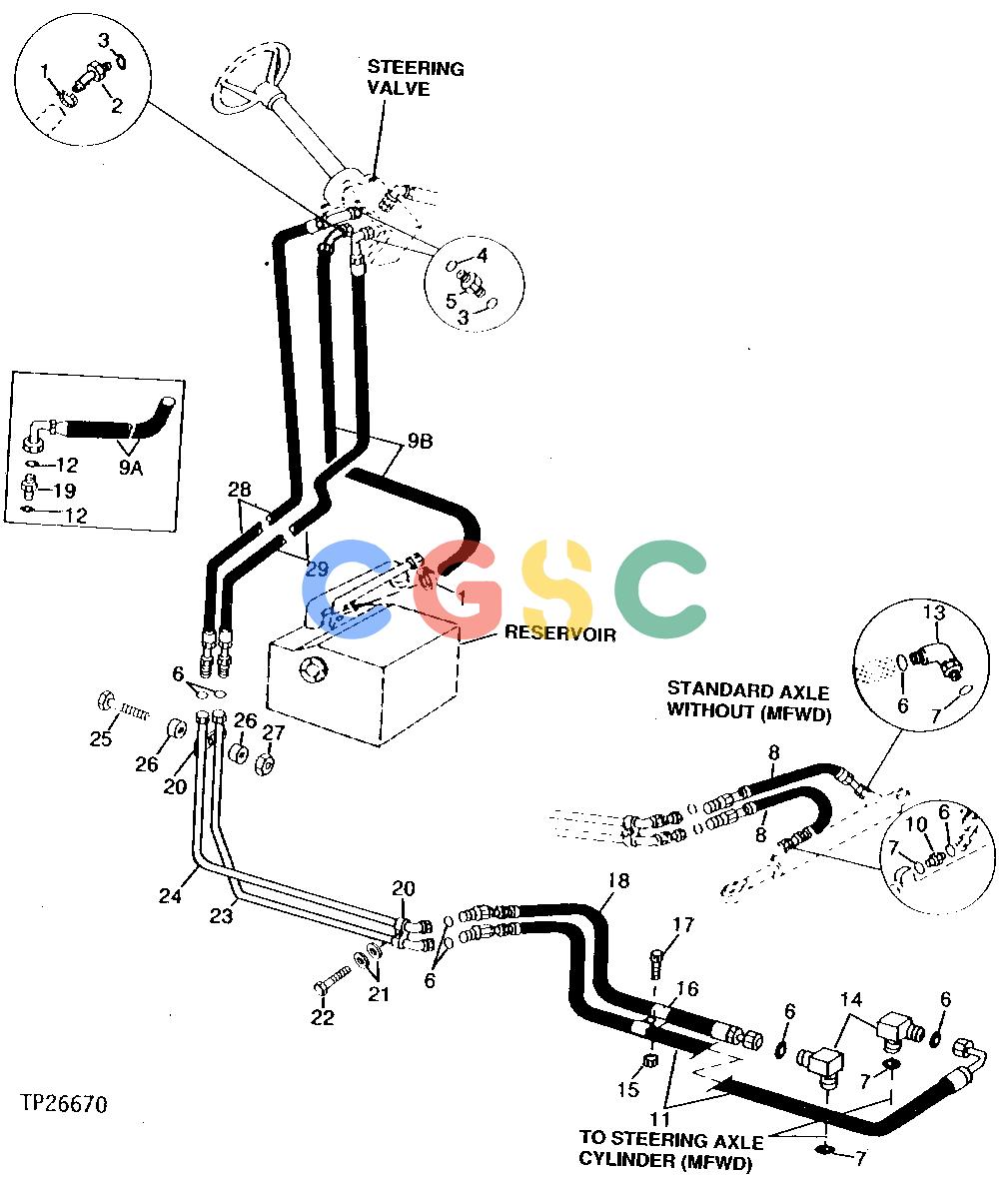

Pos.	Part No	Qty	Parts name	Comments
1.	TY22464	[1]	Clamp	(SUB FOR AR21836)
1.	TY22464	[1]	Clamp	(SUB FOR AR21836) (TO STEERING VALVE)
1.	TY22462	[1]	Clamp	(SUB FOR AR48236) (TO RESERVOIR)
2.	AT107991	[1]	Elbow Fitting	45°, (SUB FOR T38232, THIS APPLICATION)
3.	R26375	[3]	O-Ring
4.	T77613	[2]	O-Ring
5.	38H1171	[2]	Adapter Fitting
6.	T77814	[9]	O-Ring
6.	T77814	[7]	O-Ring
7.	R26448	[1]	O-Ring	(WITHOUT MFWD)
7.	R26448	[2]	O-Ring	(WITH MFWD)
8.	AT100471	[2]	Hydraulic Hose - Fabricate	9/16" X 520 MM (20-1/2") X 9/16", (WITHOUT MFWD) (SUB AT114474, THIS APPLICATION) (ALSO ORDER R26448, T77613 AND 38H1004)
8.	AT114474	[2]	Hydraulic Hose - Fabricate	9/16" X 520 MM (20-1/2") X 11/16", (WITHOUT MFWD)
8.	AT114474	[2]	Hydraulic Hose - Fabricate	9/16" X 520 MM (20-1/2") X 11/16", (WITH MFWD) (SUB FOR AT100471, THIS APPLICATION) (ALSO ORDER R26448, T77613 AND 38H1004)
9A.	AT106622	[1]	Hydraulic Hose - Fabricate	13/16" X 1 378 MM (54-1/4") X 1/2"
9B.	M87571	[AR]	Bulk Hose
10.	38H1168	[1]	Adapter Fitting	(WITHOUT MFWD)
10.	38H1160	[1]	Adapter Fitting	(WITHOUT MFWD)
11.	........	[1]	Hydraulic Hose	( AT114237 - USE IF AVAILABLE) (WITH MFWD)
11.	AT167979	[1]	Hydraulic Hose - Fabricate	(SUB FOR AT114237 AND AT160373)
12.	T77857	[2]	O-Ring
13.	38H1009	[1]	Elbow Fitting	(WITHOUT MFWD)
13.	38H1004	[1]	Elbow Fitting	(WITHOUT MFWD)
13.	38H1009	[2]	Elbow Fitting	(WITH MFWD)
14.	38H1004	[2]	Elbow Fitting	(WITH MFWD)
15.	14H785	[1]	Nut	5/16", (WITH MFWD)
16.	R27491	[2]	Clamp	(WITH MFWD)
17.	19H2664	[1]	Cap Screw	5/16" X 3/4", (WITH MFWD)
18.	AT160374	[1]	Hydraulic Hose - Fabricate	9/16" X 580 MM (22-3/4") X 11/16", (SUB FOR AT114238) (WITH MFWD)
19.	38H1279	[1]	Union Fitting
20.	R42009	[3]	Clamp
21.	24H1136	[2]	Washer	11/32" X 11/16" X 0.065"
22.	19M7932	[1]	Cap Screw	M8 X 16
23.	AT100469	[1]	Oil Line
24.	AR40418	[1]	Hose Clamp	(SUB FOR AR65294, THIS APPLICATION)
25.	19M7550	[1]	Cap Screw	M10 X 35
26.	28H1517	[2]	Washer	0.493" X 0.675" X 1/4"
27.	14M7274	[1]	Nut	M10
28.	AT100551	[1]	Hydraulic Hose - Fabricate	9/16" X 780 MM (30-3/4") X 11/16"
29.	AT100552	[1]	Hydraulic Hose - Fabricate	9/16" X 665 MM (26-1/4") X 11/16"
