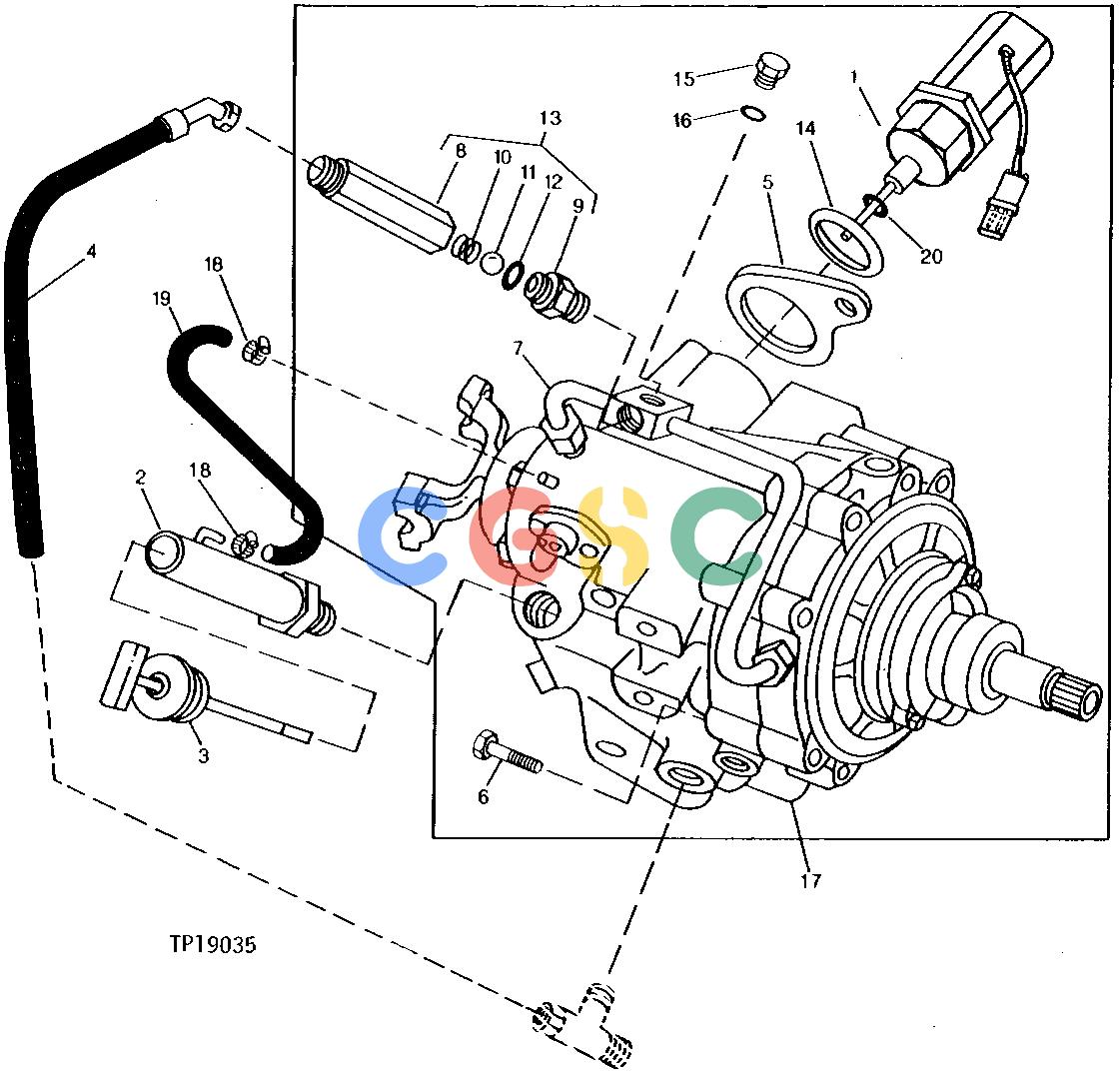

Pos.	Part No	Qty	Parts name	Comments
1.	AT114517	[1]	Actuator	(SUB FOR AT113927) (24-VOLT REVERSER SOLENOID)
2.	AT106544	[1]	Tube
3.	AT157298	[1]	Dipstick	(SUB FOR AT107666)
4.	........	[1]	Hydraulic Hose	(MAKE FROM TY22562 BULK MATERIAL, CUT TO LENGTH) (ALSO ORDER T135170)
5.	T101076	[1]	Lever
6.	19H1253	[6]	Cap Screw	7/16" X 3-1/2"
7.	AT101368	[1]	Oil Line	(INCLUDES FITTINGS)
8.	........	[1]	Housing	( T100964, USE IF AVAILABLE)
9.	........	[1]	Valve Seat	( T100965, USE IF AVAILABLE)
10.	T100966	[1]	Spring
11.	H23836	[1]	Ball
12.	R33259	[1]	O-Ring
13.	........	[1]	Check Valve	( AT101369 NO LONGER AVAILABLE) (SUB AT141313) (ALSO ORDER TY22562 AND AR21836)
13.	AT141313	[1]	Check Valve
14.	T101073	[1]	Washer
15.	R31631	[1]	Drain Plug
16.	R26287	[1]	O-Ring
17.	AT114510	[1]	Reverser
18.	TY22462	[2]	Clamp	(SUB FOR AR48236)
19.	........	[1]	Hose	(MAKE FROM M87571 BULK MATERIAL, CUT TO LENGTH)
20.	T75497	[1]	O-Ring	(SUB FOR U15242, THIS APPLICATION)
