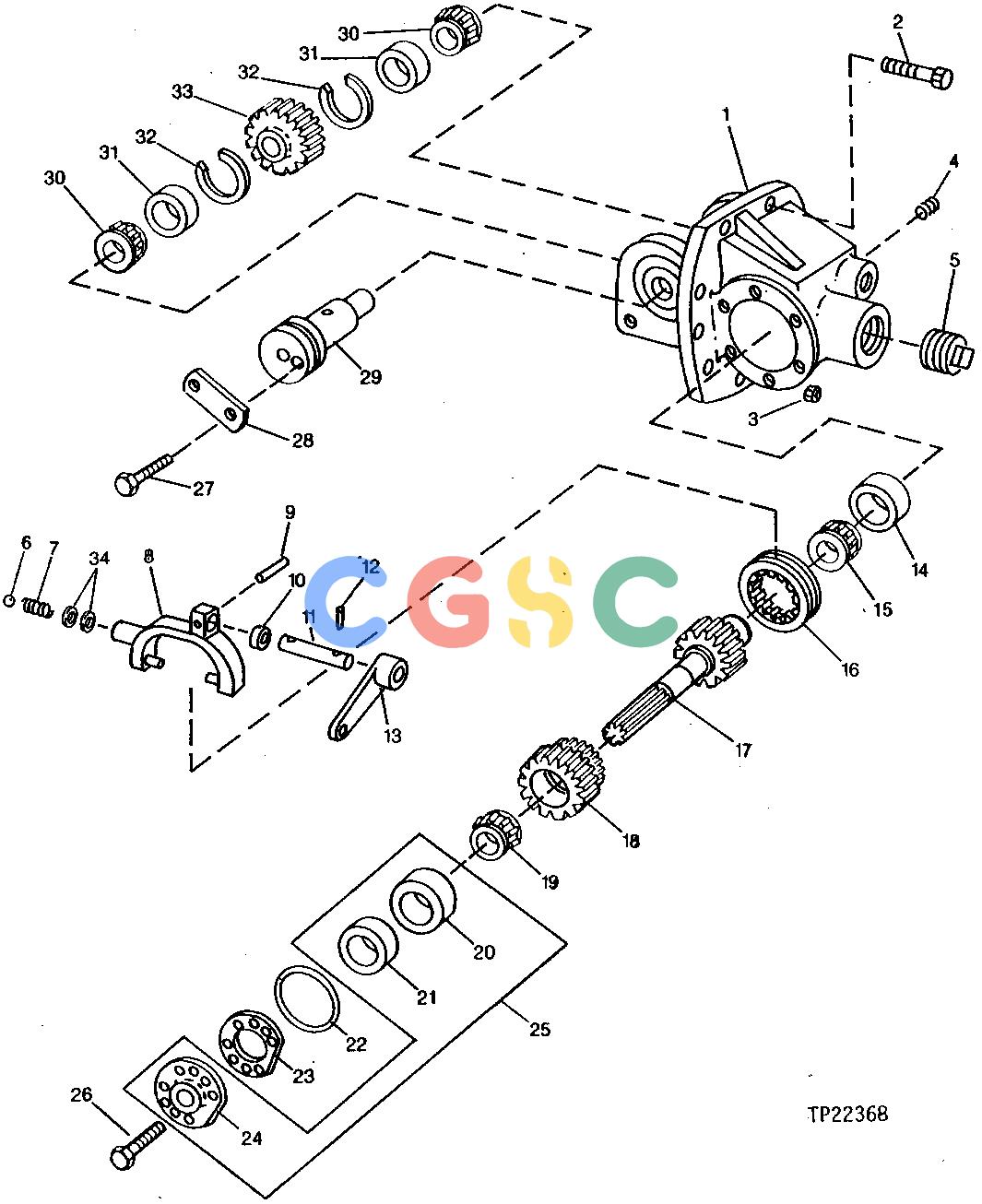

约翰迪尔零件查询315CH - BACKHOE, LOADER TRANSFER CASE ASSEMBLY (MECHANICAL FRONT WHEEL DRIVE) [01D01]EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 692 次

Pos.	Part No	Qty	Parts name	Comments
1.	T105900	[1]	Case
2.	19H2993	[4]	Cap Screw	1/2" X 1-1/2"
3.	14H1040	[2]	Nut	1/2"
4.	15H666	[1]	Pipe Plug	3/8"
5.	15H280	[1]	Pipe Plug	1-1/4"
6.	R26552	[1]	Ball
7.	T27716	[1]	Compression Spring
8.	AT166880	[1]	Yoke	(SUB FOR AT32496)
9.	25H522	[1]	Groove Pin	3/16" X 7/8"
10.	AT124394	[1]	Seal	(SUB FOR AR39043, THIS APPLICATION)
11.	T133700	[1]	Shaft	(SUB FOR T106214)
12.	34H101	[1]	Spring Pin	1/4" X 1"
13.	T106215	[1]	Lever
14.	JD9125	[1]	Bearing Cup
15.	JD9065	[1]	Bearing Cone
16.	T21970	[1]	Shift Collar
17.	T145295	[1]	Shaft	(SUB FOR T105901)
18.	T105902	[1]	Gear	DRIVEN (28 TEETH)
19.	JD8968	[1]	Bearing Cone
20.	JD7424	[1]	Bearing Cup
21.	AT157354	[1]	Seal	(SUB FOR AT113834 AND AT124414)
22.	U10746	[1]	O-Ring
23.	T75880	[AR]	Shim	.003"
23.	T75881	[AR]	Shim	.005"
23.	T75882	[AR]	Shim	.010"
24.	........	[1]	Bearing Housing W/O Bearing	( T75879 USE IF AVAILABLE)
25.	AT159829	[1]	Bearing Housing W/O Bearing	(SUB FOR AT73990)
26.	19M7662	[6]	Cap Screw	M10 X 30
27.	19M7938	[2]	Cap Screw	M10 X 20
28.	M84110	[1]	Strap
29.	T76576	[1]	Pin Fastener
30.	JD8976	[2]	Bearing Cone
31.	JD7263	[2]	Bearing Cup
32.	U43882	[2]	Snap Ring
33.	T105903	[1]	Gear	IDLER (42 TEETH)
34.	R26479	[AR]	Shim	(.030")
