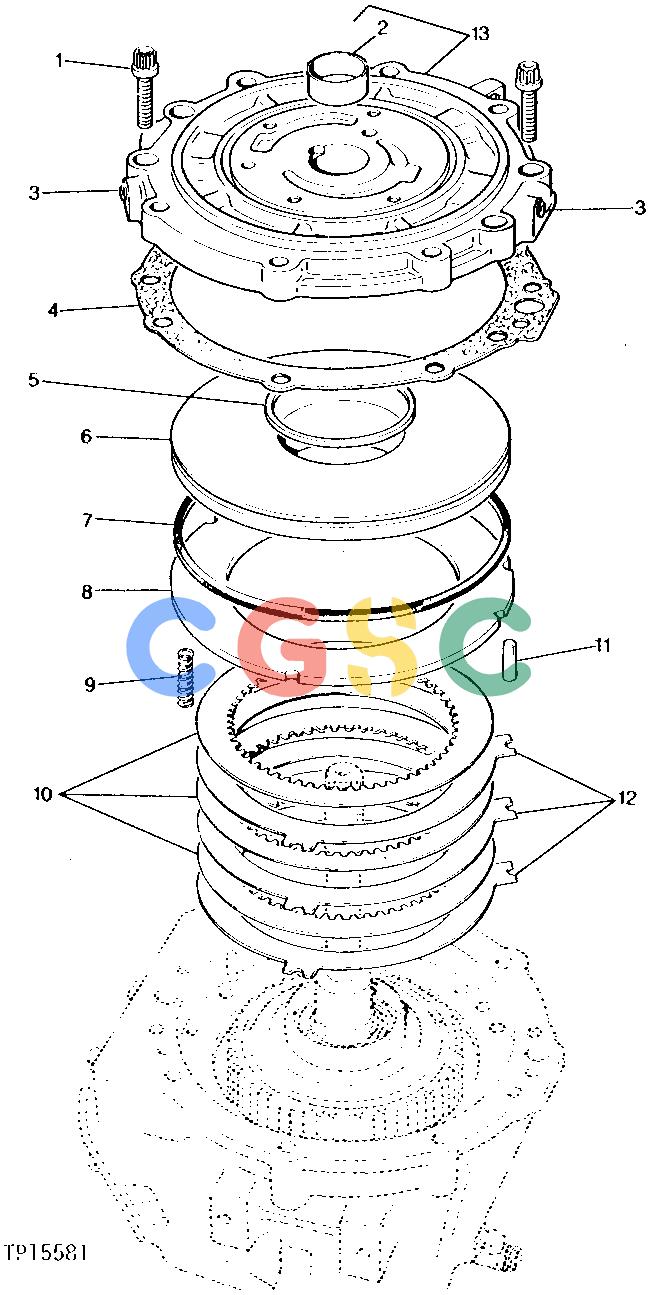

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | T64505 | [4] | Screw | (SUB FOR T101048) |
| 2. | T101012 | [1] | Bushing | (REQUIRES MACHINING) |
| 3. | 15H558 | [2] | Pipe Plug | 1/8" |
| 4. | T100684 | [1] | Gasket | |
| 5. | ........ | [1] | Seal | (K) ( T100685, USE IF AVAILABLE) |
| 6. | T101013 | [1] | Piston | |
| 7. | ........ | [1] | Seal | (K) ( T101014, USE IF AVAILABLE) |
| 8. | T101015 | [1] | Plate | |
| 9. | T100688 | [11] | Spring | |
| 10. | AT100837 | [3] | Clutch Plate | |
| 11. | T101049 | [3] | Dowel Pin | |
| 12. | T100681 | [3] | Plate | |
| 13. | AT106570 | [1] | Adapter Fitting |
