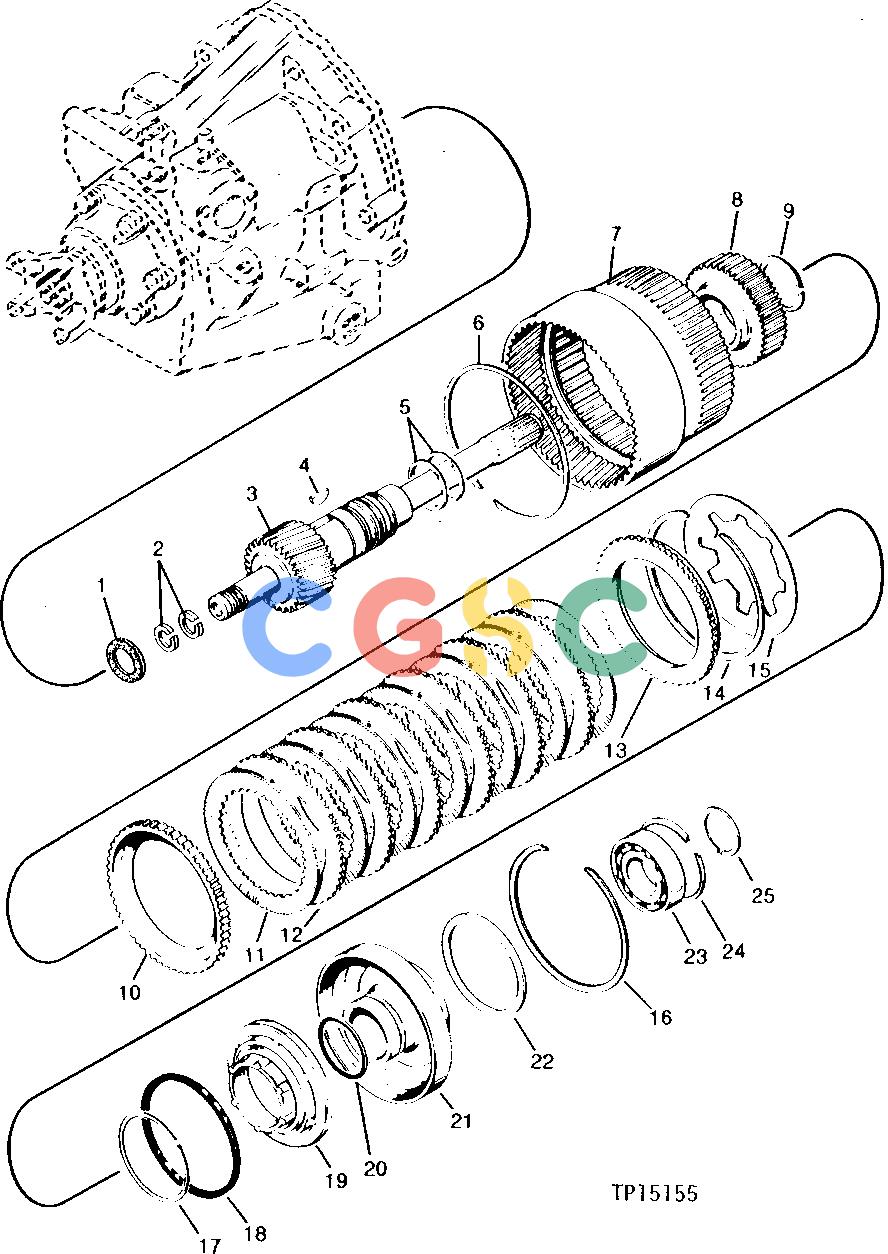

Pos.	Part No	Qty	Parts name	Comments
1.	T101000	[1]	Thrust Washer
2.	........	[2]	Ring	(K) ( T100744, USE IF AVAILABLE)
3.	AT101449	[1]	Drive Shaft
4.	26H85	[1]	Shaft Key	1/4" X 1"
5.	........	[2]	Ring	(K) ( T100743, USE IF AVAILABLE)
6.	T101036	[AR]	Snap Ring	.050 TO .054
6.	T101037	[AR]	Snap Ring	.074 TO .078
6.	T101038	[AR]	Snap Ring	.096 TO .100
6.	T101039	[AR]	Snap Ring	.062 TO .066
6.	T101040	[AR]	Snap Ring	.084 TO .088
7.	T140929	[1]	Ring Gear	(SUB FOR T101001)
8.	T101002	[1]	Hub
9.	T101041	[1]	Snap Ring
10.	T101003	[1]	Plate
11.	AT101001	[7]	Clutch Plate
12.	T140926	[6]	Plate	(SUB FOR T100680)
13.	T101004	[1]	Plate
14.	T101042	[1]	Snap Ring
15.	T101005	[1]	Disk
16.	T101043	[1]	Snap Ring
17.	........	[1]	Ring	(K) ( T101006, USE IF AVAILABLE)
18.	........	[1]	Ring	(K) ( T101007, USE IF AVAILABLE)
19.	T101008	[1]	Piston
20.	........	[1]	O-Ring	(K) ( T101009, USE IF AVAILABLE)
21.	T101010	[1]	Housing
22.	T101011	[AR]	Thrust Washer	.056 TO .068
22.	T101051	[AR]	Thrust Washer	.087 TO .101
23.	JD8514	[1]	Ball Bearing	(SUB FOR JD10351)
24.	T101044	[1]	Snap Ring
25.	T101045	[1]	Snap Ring
