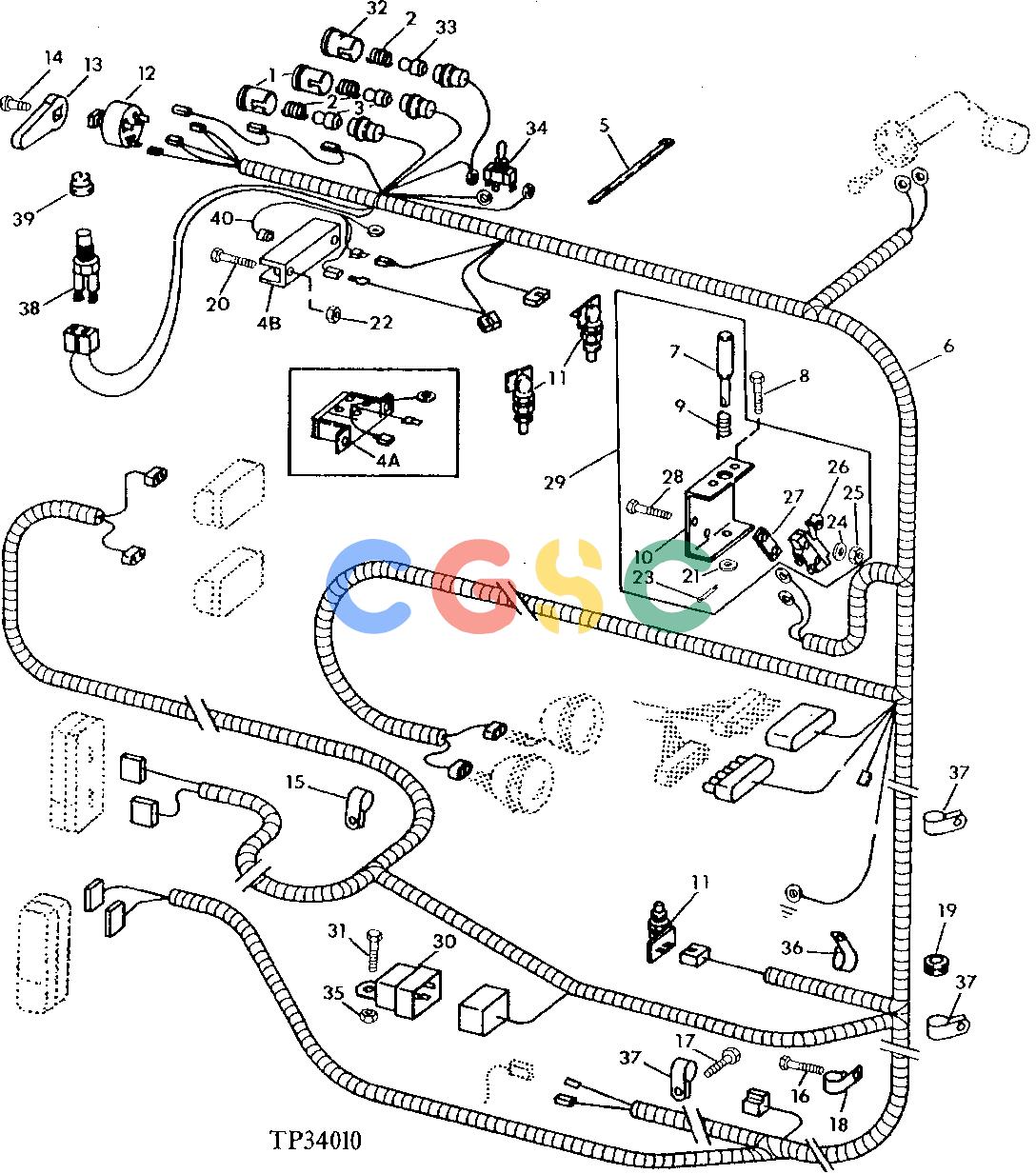

约翰迪尔零件查询315CH - BACKHOE, LOADER PLATFORM WIRING HARNESS [01G11]EPC John Deere online
广数供应链运营团队, 16 02月, 2025，浏览：
514 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
AT38113
|
[2] |
Lens
|
|
| 2. |
R30378
|
[3] |
Spring
|
|
| 3. |
AT38114
|
[2] |
Bulb
|
|
| 4A. |
........
|
[1] |
Flasher
|
|
| 4B. |
AT158615
|
[1] |
Flasher
|
|
| 5. |
R44302
|
[AR] |
Tie Band
|
|
| 6. |
AT114059
|
[1] |
Wiring Harness
|
|
| 7. |
T112975
|
[1] |
Plunger
|
|
| 8. |
19M7560
|
[2] |
Cap Screw
|
|
| 8. |
24M7088
|
[2] |
Washer
|
|
| 9. |
R28914
|
[1] |
Spring
|
|
| 10. |
........
|
[1] |
Bracket
|
|
| 11. |
AH78765
|
[3] |
Switch
|
|
| 12. |
AT60637
|
[1] |
Switch
|
|
| 13. |
R56026
|
[1] |
Knob
|
|
| 14. |
21H1372
|
[1] |
Screw
|
|
| 15. |
T75276
|
[2] |
Clamp
|
|
| 16. |
19M7008
|
[1] |
Cap Screw
|
|
| 17. |
19M7938
|
[3] |
Cap Screw
|
|
| 17. |
T22728
|
[1] |
Screw
|
|
| 17. |
T126701
|
[1] |
Flange Nut
|
|
| 18. |
AH89557
|
[2] |
Clip
|
|
| 19. |
T65643
|
[1] |
Grommet
|
|
| 20. |
T77832
|
[2] |
Self-Locking Screw
|
|
| 21. |
24M7232
|
[1] |
Washer
|
|
| 22. |
14M7165
|
[2] |
Lock Nut
|
|
| 23. |
11M7082
|
[1] |
Cotter Pin
|
|
| 24. |
12M7084
|
[2] |
Lock Washer
|
|
| 25. |
14H1026
|
[2] |
Nut
|
|
| 26. |
AT182389
|
[1] |
Switch
|
|
| 27. |
T112976
|
[1] |
Strap
|
|
| 28. |
21H1472
|
[2] |
Screw
|
|
| 29. |
AT107966
|
[1] |
Kit
|
|
| 30. |
AT77726
|
[1] |
Relay
|
|
| 31. |
M42626
|
[1] |
Bolt
|
|
| 32. |
AR47916
|
[1] |
Lens
|
|
| 33. |
AT70880
|
[1] |
Bulb
|
|
| 34. |
AT49067
|
[1] |
Toggle/Rocker Switch
|
|
| 35. |
R40694
|
[1] |
Flange Nut
|
|
| 36. |
T13744
|
[1] |
Clamp
|
|
| 37. |
T74416
|
[4] |
Clamp
|
|
| 38. |
R39554
|
[1] |
Switch
|
|
| 39. |
T55501
|
[1] |
Cap
|
|
| 40. |
AT158621
|
[1] |
Wiring Harness
|
|
