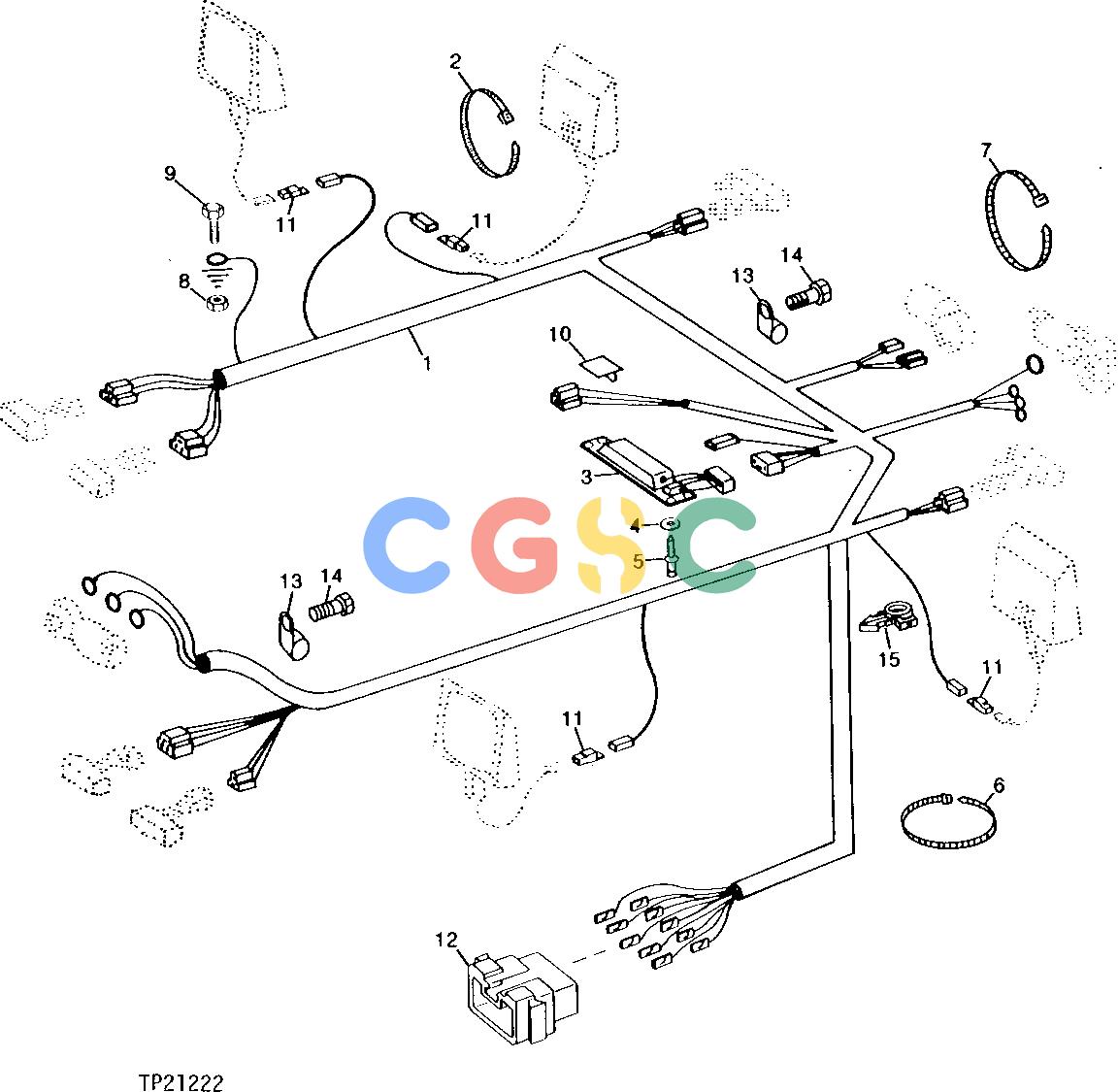

约翰迪尔零件查询315CH - BACKHOE, LOADER CAB WIRING HARNESS [01G13]EPC John Deere online
广数供应链运营团队, 16 02月, 2025，浏览：
177 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
AT114148
|
[1] |
Wiring Harness
|
|
| 2. |
R44302
|
[AR] |
Tie Band
|
|
| 3. |
AT101691
|
[1] |
Lamp
|
|
| 4. |
R52119
|
[4] |
Washer
|
|
| 5. |
R53608
|
[4] |
Rivet
|
|
| 6. |
H77698
|
[AR] |
Tie Band
|
|
| 7. |
H77698
|
[AR] |
Tie Band
|
|
| 8. |
14M7298
|
[1] |
Flange Nut
|
|
| 9. |
19M7865
|
[1] |
Screw
|
|
| 10. |
AT54892
|
[1] |
Clip
|
|
| 11. |
T28585
|
[4] |
Electrical Connector Assy
|
|
| 12. |
T100458
|
[1] |
Elec. Connector Housing
|
|
| 13. |
T19935
|
[2] |
Clamp
|
|
| 14. |
19M7008
|
[2] |
Cap Screw
|
|
| 15. |
T118611
|
[3] |
Clip
|
|
