约翰迪尔零件查询315CH - BACKHOE, LOADER SIDE CONSOLE CONTROLS [01G17]EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 509 次

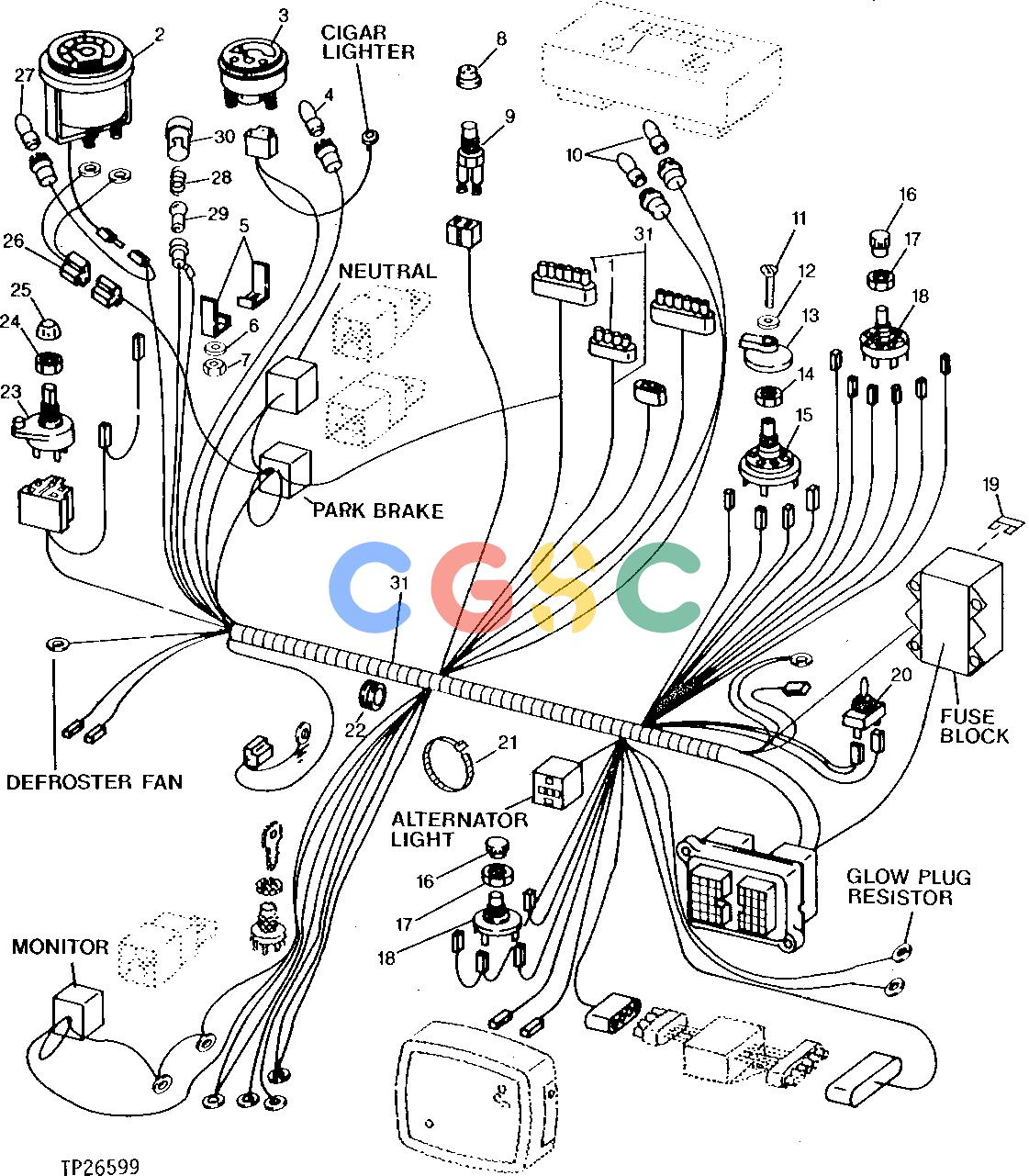

Pos.	Part No	Qty	Parts name	Comments
1.	T126704	[1]	Electrical Connector Assy
2.	AT113965	[1]	Tachometer	(WITH HOUR METER)
3.	AT105511	[1]	Gauge	FUEL
4.	AT41509	[1]	Bulb	(FOR FUEL GAUGE)
5.	T118593	[2]	Bracket	(SUB FOR T105262, THIS APPLICATION)
6.	12M7084	[2]	Lock Washer	4.300 MM, BLOWER, STANDARD HEATER, WITHOUT PRESSURIZER
7.	14M7100	[2]	Nut	M4
8.	AR47374	[1]	Cap	MONITOR SWITCH COVER
9.	R39554	[1]	Switch	MONITOR SWITCH
10.	57M7169	[2]	Bulb	(FOR DISPLAY MODULE)
11.	21H973	[1]	Screw	0.164" X 3/8"
12.	12H315	[1]	Lock Washer	0.164"
13.	AT79053	[1]	Knob
14.	A4655R	[1]	Nut
15.	AT117624	[1]	Switch	(SUB FOR AT79052) LIGHT
16.	AT60729	[2]	Knob
17.	14H774	[2]	Nut	3/8"
18.	AT65321	[2]	Switch	(WINDSHIELD WIPER)
19.	57M7125	[AR]	Fuse	(5-AMPS) (MONITOR)
19.	57M7121	[5]	Fuse	(10-AMPS) (MONITOR GAUGES BATTERY RELAY) (START RELAY) (REVERSER BACK-UP ALARM LIGHTS) (NEUTRAL START RTD REAR VALVE HORN AND HEATER)
19.	99M7065	[AR]	Fuse	(15-AMPS) (DEFROST FAN DOME LIGHT) (START AID AND DEFROSTER)
19.	99M7069	[AR]	Fuse	(25-AMPS) (DRIVING WORK GAUGE LIGHTS) (TAIL DRIVING WORK GAUGE LIGHTS) (BEACON LIGHTER AND HORN BRAKE WARN LAMPS)
19.	57M7120	[1]	Fuse	WIPERS
20.	AN151934	[1]	Toggle/Rocker Switch	BEACON, (SUB FOR AR44659)
21.	R44302	[AR]	Tie Band
22.	T70341	[1]	Grommet
23.	AL36529	[1]	Switch	BLOWER, STANDARD HEATER, WITHOUT PRESSURIZER
24.	E46066	[1]	Nut
25.	AR69370	[1]	Knob
26.	AT101087	[1]	Wiring Lead	(FOR TACHOMETER)
27.	57M7174	[1]	Bulb	(FOR TACHOMETER)
28.	R30378	[1]	Spring
29.	AT38114	[1]	Bulb
30.	AT34928	[1]	Lens	(WORK LIGHT)
31.	AT114060	[1]	Wiring Harness	CAB CONSOLE
