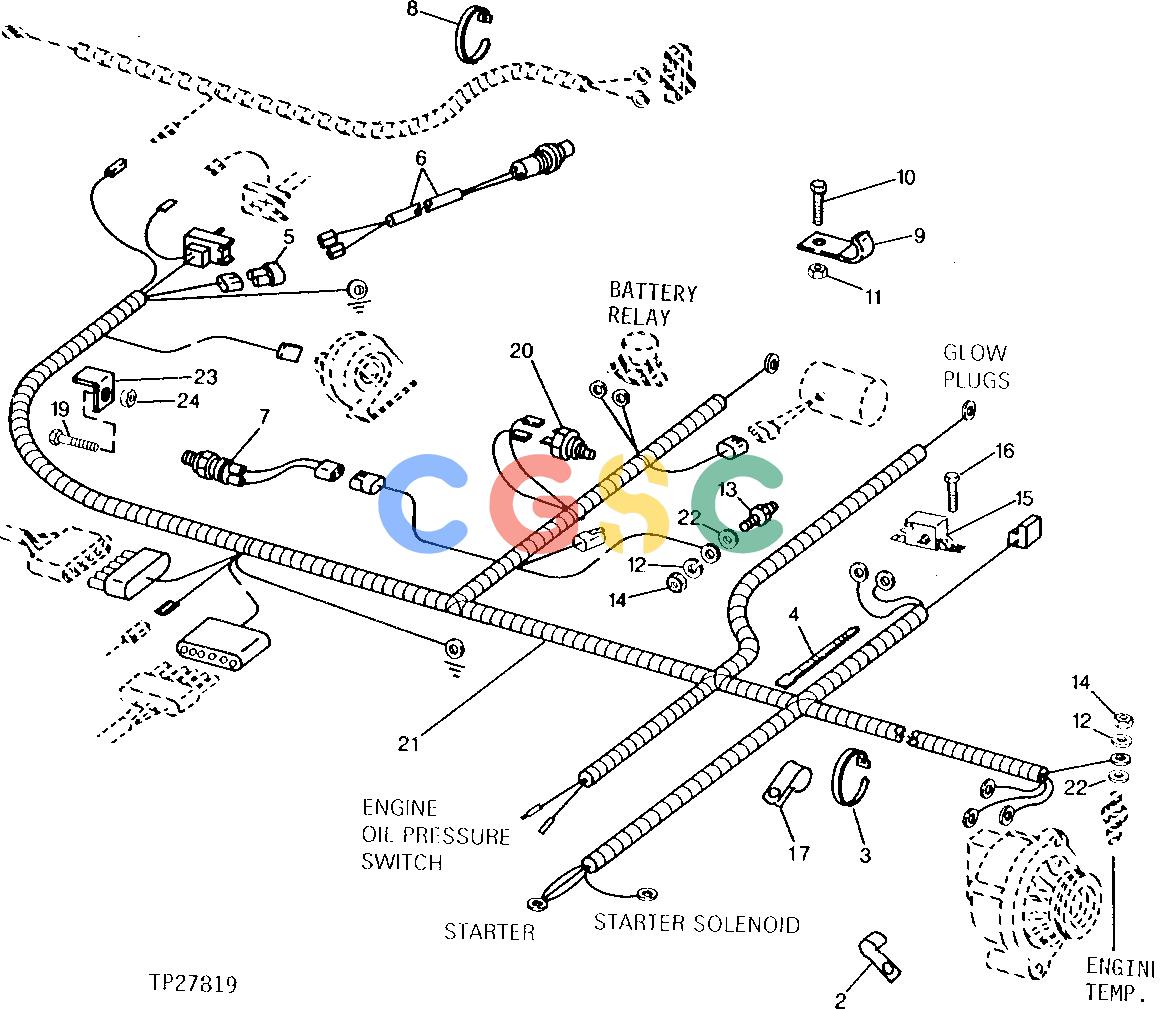

约翰迪尔零件查询315CH - BACKHOE, LOADER ENGINE WIRING HARNESS [01G19]EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 727 次

Pos.	Part No	Qty	Parts name	Comments
1.	........	[1]	Relay	BATTERY ( AT103774 NOT USED THIS APPLICATION)
2.	T19935	[1]	Clamp
3.	H77698	[AR]	Tie Band	(SUB FOR T44946)
4.	R76477	[AR]	Tie Band
5.	RE12363	[1]	Electrical Connector Assy
6.	AT101128	[1]	Switch	(REVERSER) (INCLUDES WIRE HARNESS)
7.	AT101906	[1]	Switch	NEUTRAL START
8.	R44302	[AR]	Tie Band
9.	T76252	[1]	Clamp
10.	19M7402	[1]	Cap Screw	M10 X 25
11.	14M7274	[1]	Nut	M10
12.	12H295	[2]	Lock Washer	0.190"
13.	AT100083	[1]	Switch	REVERSER TEMPERATURE
14.	14H631	[2]	Nut	0.190"
15.	AT85258	[1]	Relay	(STARTER)
15.	21M7199	[2]	Screw	M5 X 10
16.	19H2479	[2]	Cap Screw	1/4" X 3/8"
16.	24H1287	[2]	Washer	9/32" X 5/8" X 0.065"
17.	T75276	[1]	Clamp
18.	AR94101	[1]	Diode
19.	19M7402	[2]	Cap Screw	M10 X 25
20.	AL27809	[1]	Switch	REVERSE WARNING ALARM (USE IF AVAILABLE)
20.	AL67715	[1]	Switch	(SUB FOR AL27809)
21.	AT114058	[1]	Wiring Harness
22.	24H1283	[2]	Washer	7/32" X 1/2" X 0.049"
23.	T74416	[1]	Clamp
24.	14M7274	[1]	Nut	M10
