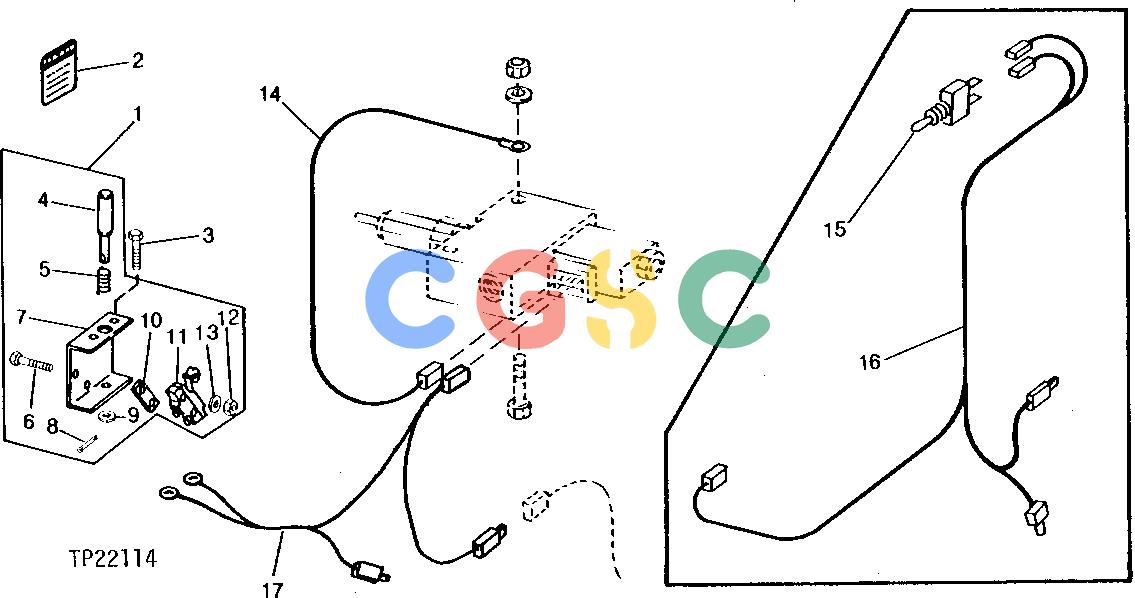

约翰迪尔零件查询315CH - BACKHOE, LOADER LOCK VALVE SWITCH [01G22]EPC John Deere online
广数供应链运营团队, 16 02月, 2025，浏览：
843 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
AT107966
|
[1] |
Kit
|
|
| 2. |
T113100
|
[1] |
Label
|
|
| 3. |
19M7560
|
[2] |
Cap Screw
|
|
| 3. |
24M7088
|
[2] |
Washer
|
|
| 4. |
T112975
|
[1] |
Plunger
|
|
| 5. |
R28914
|
[1] |
Spring
|
|
| 6. |
21H1472
|
[2] |
Screw
|
|
| 7. |
........
|
[1] |
Bracket
|
|
| 8. |
11M7082
|
[1] |
Cotter Pin
|
|
| 9. |
24M7232
|
[1] |
Washer
|
|
| 10. |
T112976
|
[1] |
Strap
|
|
| 11. |
AT46755
|
[1] |
Switch
|
|
| 12. |
14H1026
|
[2] |
Nut
|
|
| 13. |
12M7084
|
[2] |
Lock Washer
|
|
| 14. |
AT106644
|
[1] |
Wiring Lead
|
|
| 15. |
AN151934
|
[1] |
Toggle/Rocker Switch
|
|
| 16. |
AT106643
|
[1] |
Wiring Harness
|
|
| 17. |
AT118576
|
[1] |
Wiring Harness
|
|
