约翰迪尔零件查询315CH - BACKHOE, LOADER WIRE LEAD KIT [01G23]EPC John Deere online_约翰迪尔John Deere_工程机械

约翰迪尔零件查询315CH - BACKHOE, LOADER WIRE LEAD KIT [01G23]EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 122 次

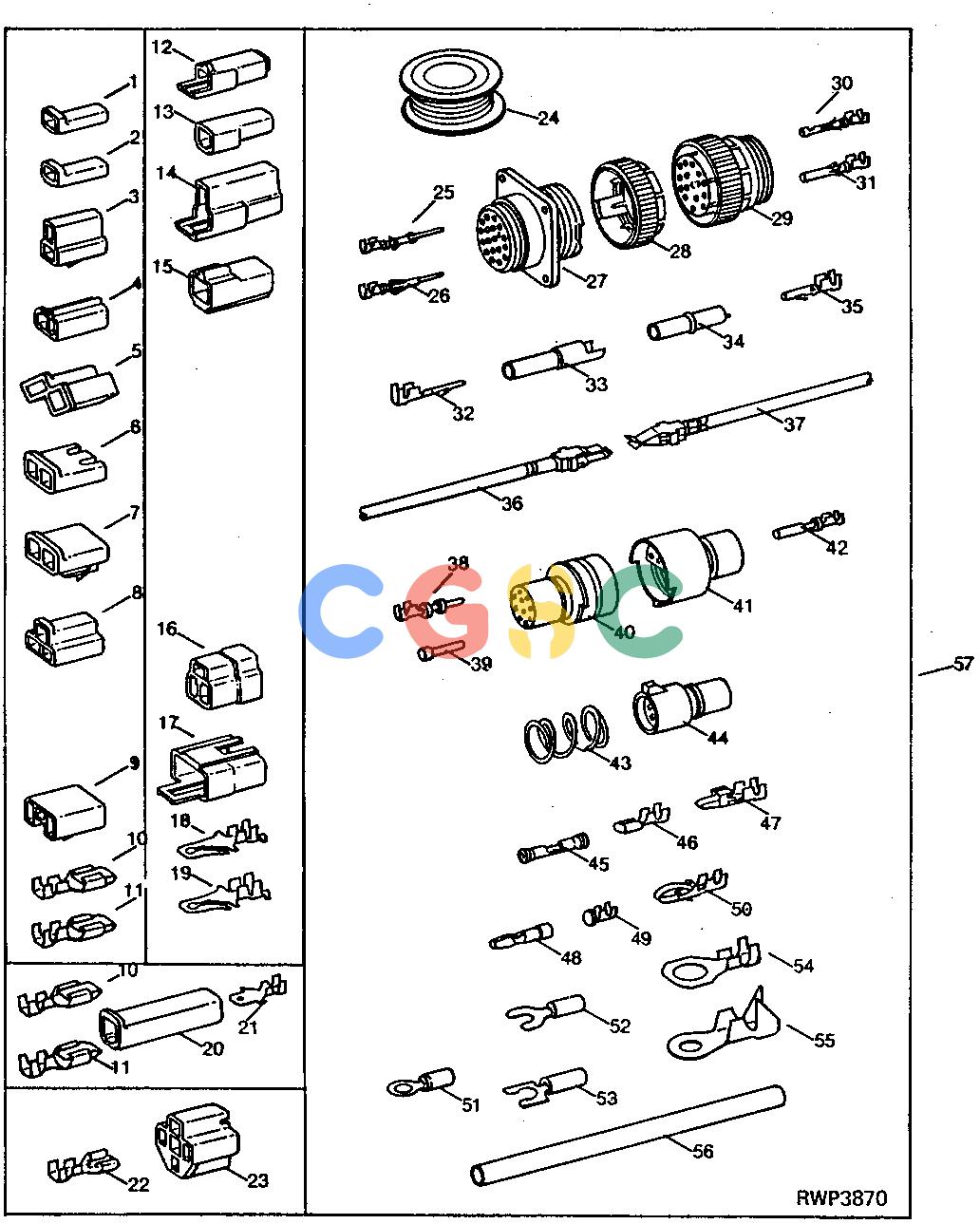

Pos.	Part No	Qty	Parts name	Comments
1.	T28583	[1]	Elec. Connector Housing	(B)
2.	M43835	[1]	Electrical Connector Assy	(B)
3.	R77476	[1]	Electrical Connector Assy	(A)
4.	R77477	[1]	Elec. Connector Housing	(A)
5.	R77479	[1]	Electrical Connector Assy	(A)
6.	R77480	[1]	Electrical Connector Assy	(A)
7.	R77481	[1]	Electrical Connector Assy	(A)
8.	R77482	[1]	Electrical Connector Assy
9.	H104855	[1]	Electrical Connector Assy
10.	U46662	[1]	Elec. Connector Terminal	(E) (F)
11.	N115096	[1]	Terminal	(G) (PKG. OF 15)
12.	T28585	[1]	Electrical Connector Assy	(B)
13.	R77475	[1]	Electrical Connector Assy	(B)
14.	T28586	[1]	Electrical Connector Assy	(A)
15.	R77478	[1]	Electrical Connector Assy	(A)
16.	R77483	[1]	Electrical Connector Assy
17.	R48887	[1]	Electrical Connector Assy
18.	T34067	[1]	Elec. Connector Terminal	(E) (F)
19.	R77484	[1]	Elec. Connector Terminal	(G) (PKG. OF 15)
20.	U46370	[1]	Electrical Connector Assy	(B)
21.	R77485	[1]	Elec. Connector Terminal	(C) (F)
22.	R77486	[1]	Elec. Connector Terminal	(E) (F)
23.	R77487	[1]	Electrical Connector Assy	(B)
24.	R66321	[1]	Wiring Lead	15M (50 FT.) 10 GA.
24.	R66320	[1]	Wiring Lead	30.5M (100 FT.) 12 GA.
24.	R77501	[1]	Wire	30.5M (100 FT.) 14 GA.
24.	R77500	[1]	Wire	30.5M (100 FT.) 16 GA.
24.	R77499	[1]	Wire	30.5M (100 FT.) 18 GA.
24.	R77498	[1]	Wire	30.5M (100 FT.) 20 GA.
25.	R77462	[1]	Elec. Connector Terminal	(PKG. OF 40) (20-22 OR 24 GA. WIRE)
26.	R77464	[1]	Elec. Connector Terminal	(H) (PKG. OF 50)
27.	R77456	[1]	Elec. Connector Terminal	(37 WAY)
28.	R77458	[1]	Elec.Connect Locking Device	(A) (SIZE 23)
28.	R77459	[1]	Elec.Connect Locking Device	(A) (SIZE 17)
28.	R77460	[1]	Elec.Connect Locking Device	(A) (SIZE 13)
28.	R77461	[1]	Elec.Connect Locking Device	(A) (SIZE 11)
29.	R77457	[1]	Elec. Connector Terminal	(37 WAY)
30.	R77463	[1]	Elec. Connector Terminal	(PKG. OF 40) (20-22 OR 24 GA. WIRE)
31.	R77465	[1]	Elec. Connector Terminal	(H) (PKG. OF 50)
32.	R77468	[1]	Elec. Connector Terminal	(PKG. OF 5)
33.	R77466	[1]	Electrical Connector Assy	(A)
34.	R77467	[1]	Electrical Connector Assy	(A)
