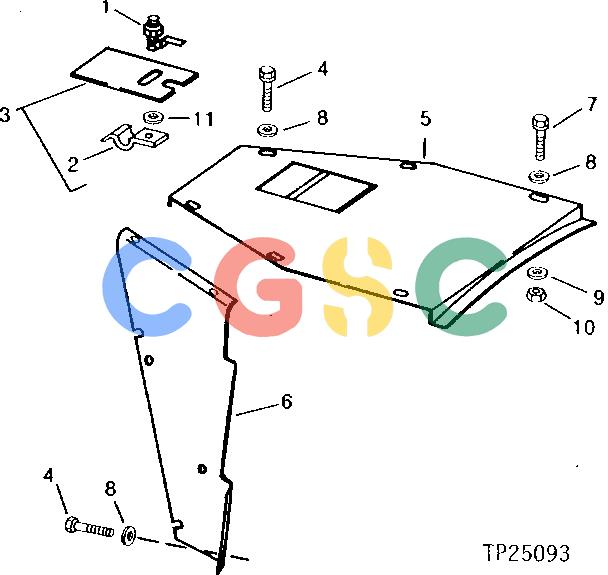

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | AT38176 | [1] | Lock | |
| 2. | T10379 | [2] | Clamp | |
| 3. | AT42072 | [1] | Cover | |
| 4. | 19M7784 | [6] | Screw | M10 X 20 |
| 5. | AT106742 | [1] | Cover | |
| 6. | AT106717 | [1] | Cowl | R.H. |
| 6. | AT106718 | [1] | Cowl | L.H. (NOT ILLUSTRATED) |
| 7. | 19M7786 | [2] | Screw | M10 X 30 |
| 8. | H110232 | [8] | Washer | |
| 9. | 24H1219 | [2] | Washer | 7/16" X 1" X 0.083" |
| 10. | 14M7167 | [2] | Lock Nut | M10 |
| 11. | 12H327 | [1] | Lock Washer | 3/4" |
