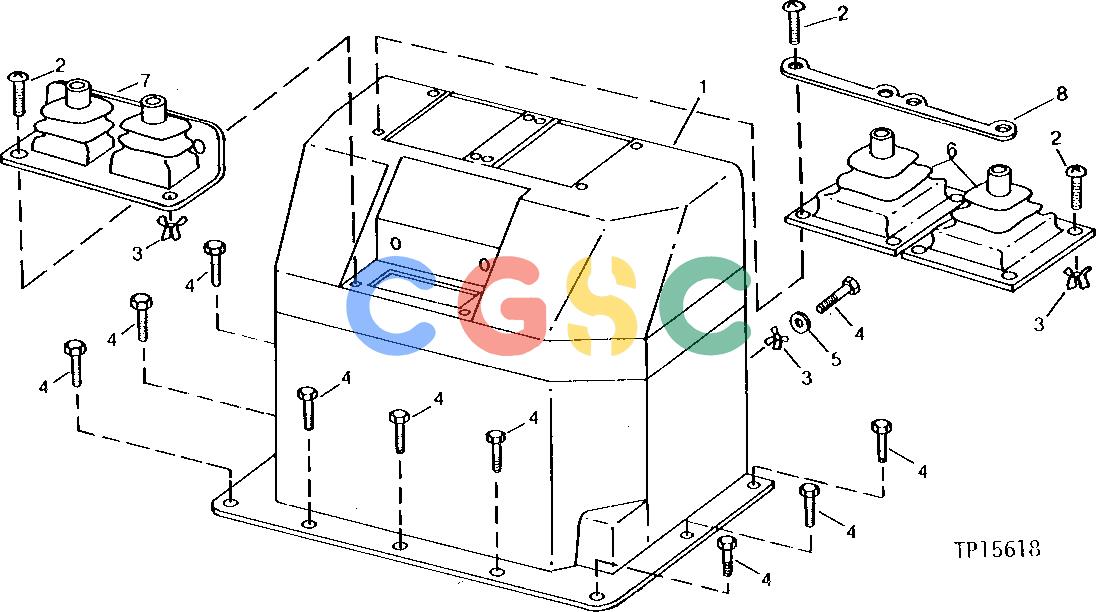

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | AT106615 | [1] | Cover | (5-STACK) |
| 2. | T77835 | [12] | Self-Locking Screw | USE WITH CAB |
| 2. | 24M7100 | [8] | Washer | 6.600 X 22 X 2 MM, (BACKHOE VALVE COVER TO BACKHOE CONTROL BOOT SCREWS) (NOT ILLUSTRATED) |
| 3. | M84972 | [16] | Nut | 4 USED WITHOUT CAB |
| 4. | T124621 | [13] | Screw | |
| 5. | 24M7100 | [13] | Washer | 6.600 X 22 X 2 MM |
| 6. | AT143028 | [2] | Boot | (SUB FOR AT100267, THIS APPLICATION) (SUB FOR AT139784) |
| 7. | AT100268 | [1] | Boot | |
| 8. | T101199 | [2] | Strip | USE WITH FOUR-LEVER CONTROLS |
