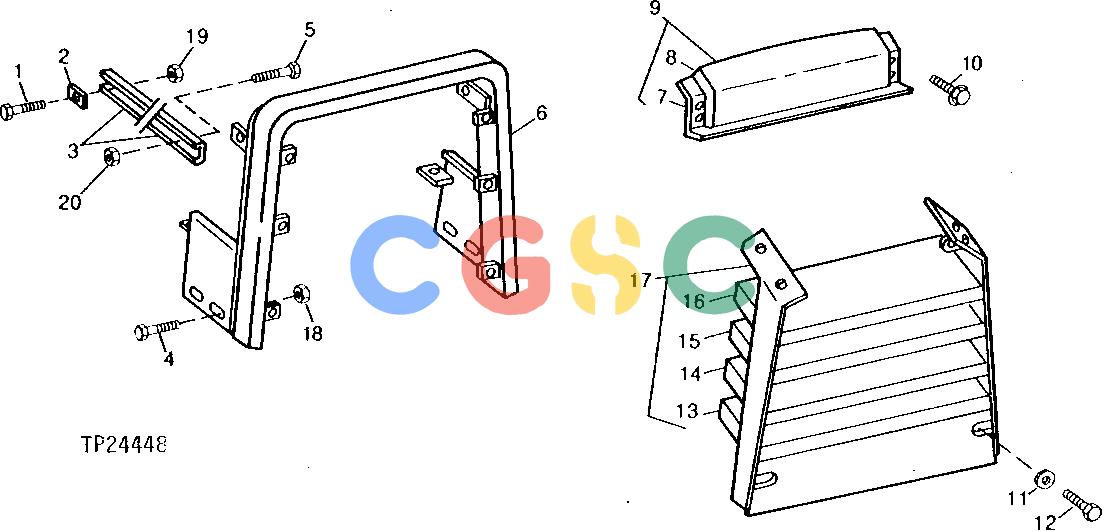

约翰迪尔零件查询315CH - BACKHOE, LOADER GRILLE AND GRILLE HOUSING [01J24]EPC John Deere online
广数供应链运营团队, 16 02月, 2025，浏览：
134 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
19M7815
|
[2] |
Screw
|
|
| 1. |
24H1111
|
[2] |
Washer
|
|
| 2. |
T100381
|
[2] |
Bar
|
|
| 3. |
AT100359
|
[2] |
Channel
|
|
| 4. |
19M7843
|
[4] |
Screw
|
|
| 4. |
24M7241
|
[4] |
Washer
|
|
| 5. |
19M7789
|
[2] |
Screw
|
|
| 6. |
AT100248
|
[1] |
Frame
|
|
| 7. |
........
|
[1] |
Louver
|
|
| 8. |
........
|
[1] |
Barrier
|
|
| 9. |
........
|
[1] |
|
|
| 10. |
19M7783
|
[4] |
Screw
|
|
| 11. |
24M7296
|
[4] |
Washer
|
|
| 12. |
19M8162
|
[4] |
Screw
|
|
| 13. |
........
|
[1] |
Barrier
|
|
| 14. |
........
|
[1] |
Barrier
|
|
| 15. |
........
|
[1] |
Barrier
|
|
| 16. |
........
|
[1] |
Barrier
|
|
| 17. |
AT124234
|
[1] |
Grille
|
|
| 18. |
14M7291
|
[4] |
Flange Nut
|
|
| 19. |
14M7275
|
[4] |
Nut
|
|
