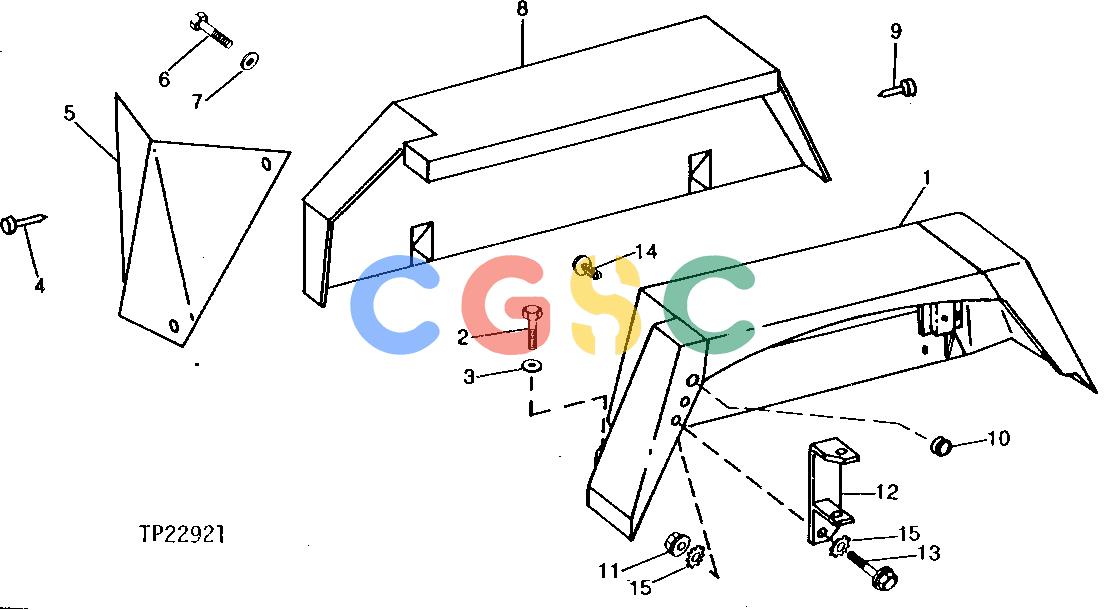

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | AT113961 | [1] | Fender | |
| 2. | 19M7268 | [2] | Cap Screw | M12 X 25 |
| 3. | 24M7047 | [2] | Washer | 13 X 24 X 2.500 MM |
| 4. | R55326 | [3] | Rivet | (SUB FOR (3) T69627) |
| 5. | AT72691 | [1] | Cover | |
| 6. | R53678 | [3] | Screw | |
| 7. | 24H1284 | [3] | Washer | 7/32" X 7/8" X 0.065" |
| 8. | AT106530 | [1] | Cover | |
| 9. | T75119 | [1] | Plug | |
| 10. | R64058 | [1] | Grommet | |
| 11. | 14M7298 | [2] | Flange Nut | M8 |
| 12. | AT113962 | [1] | Support | |
| 13. | 19M7866 | [2] | Screw | M8 X 20 |
| 14. | T118652 | [4] | Plug | (WITH CAB) |
| 15. | 12H331 | [2] | Lock Washer | 3/8" |
