约翰迪尔零件查询315CH - BACKHOE, LOADER MAIN HYDRAULIC AND STEERING PUMP (VICKERS) (RELIEF VALVE LOCATED ON SIDE OF PUMP) (SERIAL NO. -EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 618 次

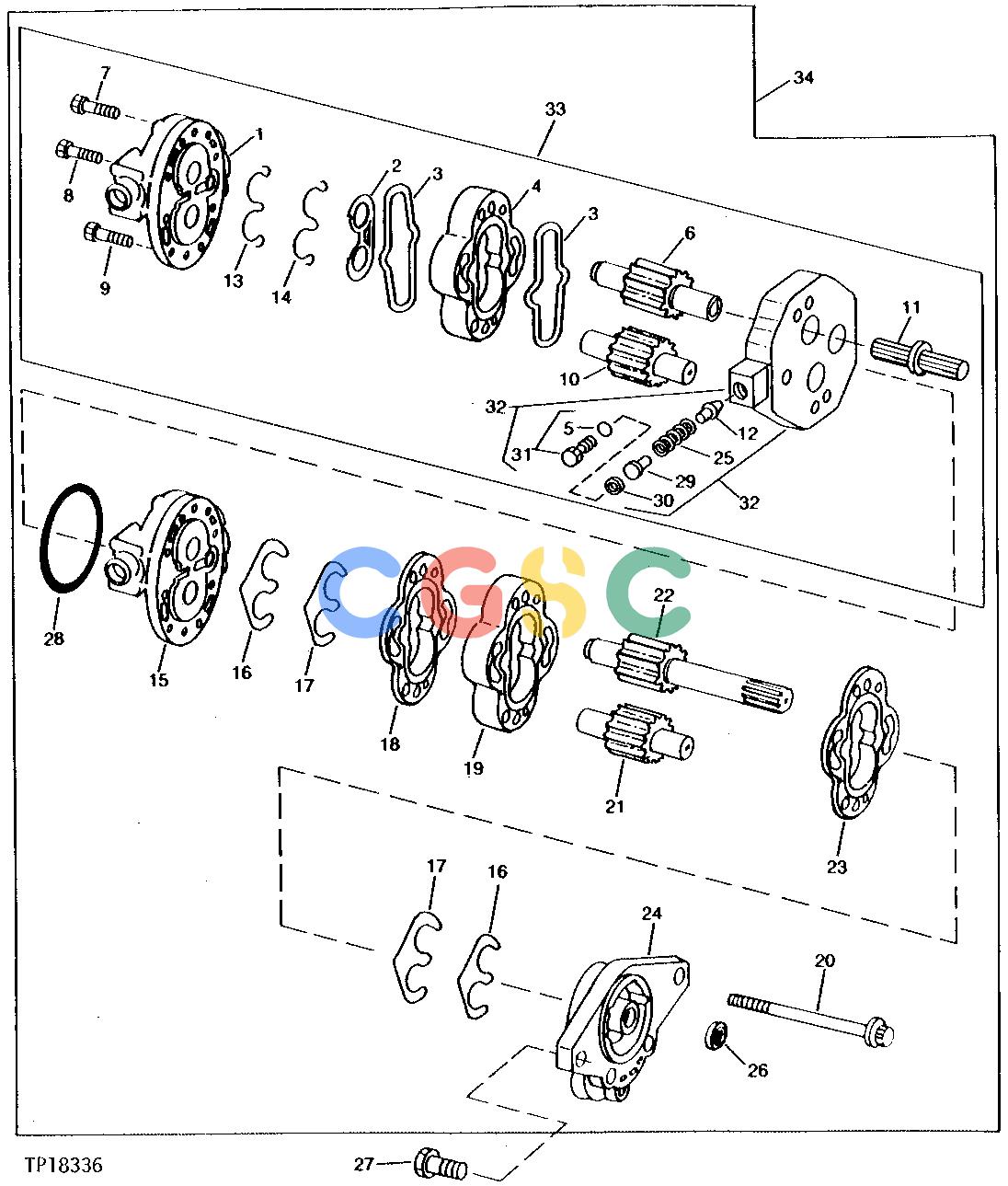

Pos.	Part No	Qty	Parts name	Comments
1.	........	[1]	Cover	(SUB AT114080)
2.	........	[1]	Plate	(SUB AT114080)
3.	........	[2]	O-Ring	(K1) (SUB AT107861)
4.	........	[1]	Section	(SUB AT114080)
5.	R26286	[1]	O-Ring
6.	........	[1]	Gear	(SUB AT114080)
7.	19M8405	[2]	Screw	M8 X 70, (SUB FOR T113087)
8.	19M8554	[4]	Screw	M8 X 65, (SUB FOR T112994)
9.	19M8123	[2]	Screw	M8 X 45, (SUB FOR T113086)
10.	........	[1]	Gear	(SUB AT114080)
11.	T112992	[1]	Shaft
12.	T113408	[1]	Poppet
13.	........	[1]	Seal	(K1) (SUB AT107861)
14.	........	[1]	O-Ring	(K1) (SUB AT107861)
15.	........	[1]	Section	(SUB AT114078)
16.	........	[2]	Seal	(K2) (SUB AE45158)
17.	........	[2]	Retainer	(K2) (SUB AE45158)
18.	........	[1]	Wear Plate	T112990 NO LONGER AVAILABLE, (SUB AT114134 AND (2) 19M7788)
19.	........	[1]	Section	(SUB AT114078)
20.	19H2058	[8]	Cap Screw	7/16" X 3-3/4"
21.	........	[1]	Gear	(SUB AT114078)
22.	........	[1]	Gear	(SUB AT114078)
23.	T112993	[1]	Wear Plate
24.	........	[1]	Cover	FRONT, (SUB AT114078)
25.	T113407	[1]	Compression Spring
26.	E73775	[1]	Seal	(K2)
27.	19M7790	[2]	Screw	M12 X 35
28.	........	[1]	O-Ring	(K1) (SUB AT107861)
29.	T113409	[1]	Guide
30.	AT114147	[1]	Shim
31.	AT114081	[1]	Fitting Plug
32.	........	[1]	Cover	(SUB AT114080)
33.	AT114080	[1]	Hydraulic Pump	STEERING
34.	AT114078	[1]	Hydraulic Pump	(SUB AT114134 AND (2) 19M7788)
