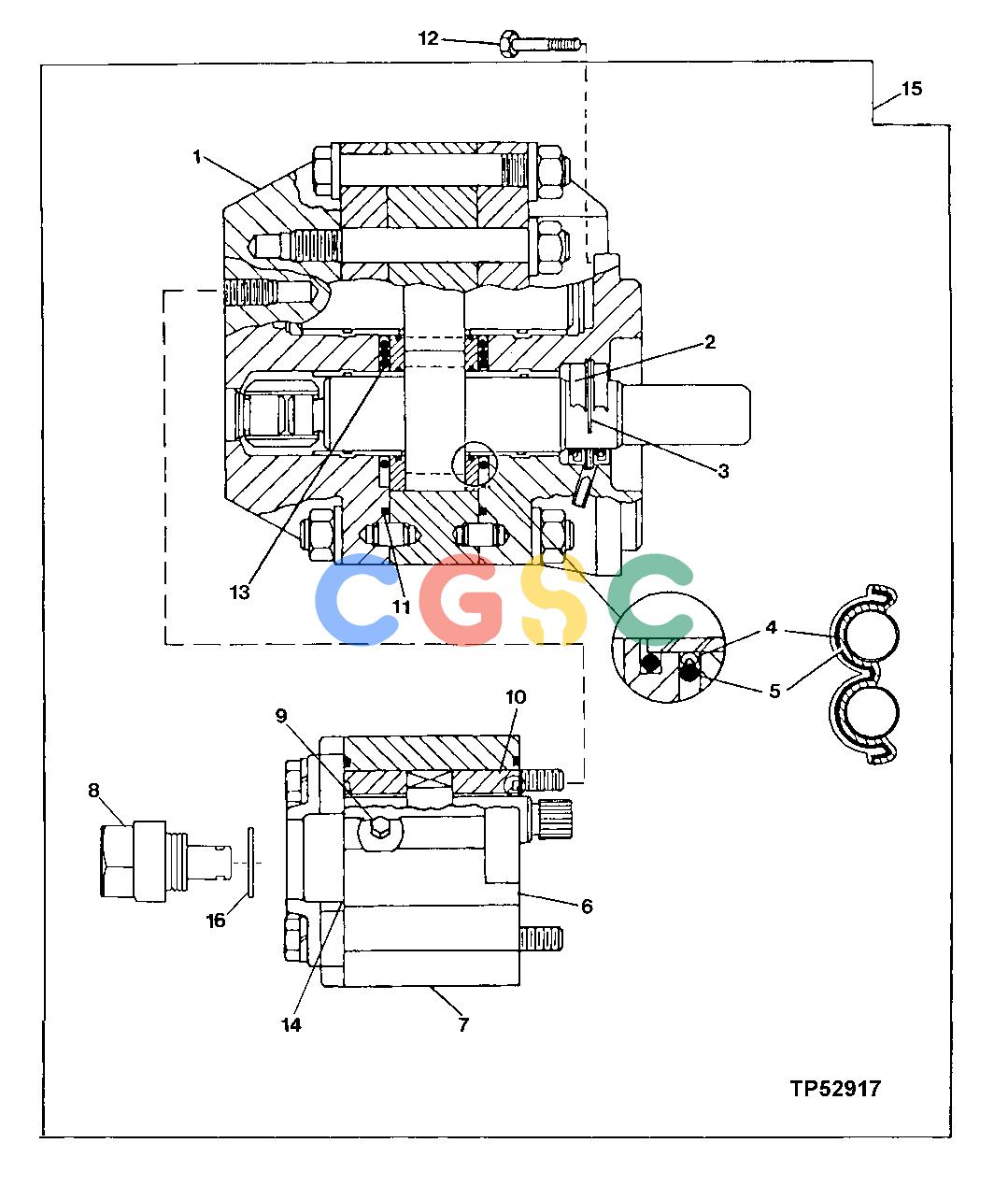

约翰迪尔零件查询315CH - BACKHOE, LOADER REPLACEMENT MAIN HYDRAULIC AND STEERING PUMP (SUNDSTRAND) (RELIEF VALVE LOCATED ON FRONT OF PUMP) (SEPC John Deere online
广数供应链运营团队, 16 02月, 2025，浏览：
979 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
........
|
[1] |
Hydraulic Pump
|
|
| 2. |
........
|
[1] |
Seal
|
|
| 3. |
........
|
[1] |
Snap Ring
|
|
| 4. |
........
|
[2] |
Seal
|
|
| 5. |
........
|
[2] |
Back-Up Ring
|
|
| 6. |
........
|
[1] |
O-Ring
|
|
| 7. |
AT124224
|
[1] |
Hydraulic Pump
|
|
| 8. |
AT124227
|
[1] |
Pressure Relief Valve
|
|
| 9. |
........
|
[1] |
O-Ring
|
|
| 10. |
........
|
[2] |
O-Ring
|
|
| 11. |
........
|
[2] |
O-Ring
|
|
| 12. |
19M7788
|
[2] |
Screw
|
|
| 13. |
........
|
[2] |
O-Ring
|
|
| 14. |
........
|
[1] |
O-Ring
|
|
| 15. |
AT114134
|
[1] |
Hydraulic Pump
|
|
| 16. |
T75462
|
[1] |
O-Ring
|
|
