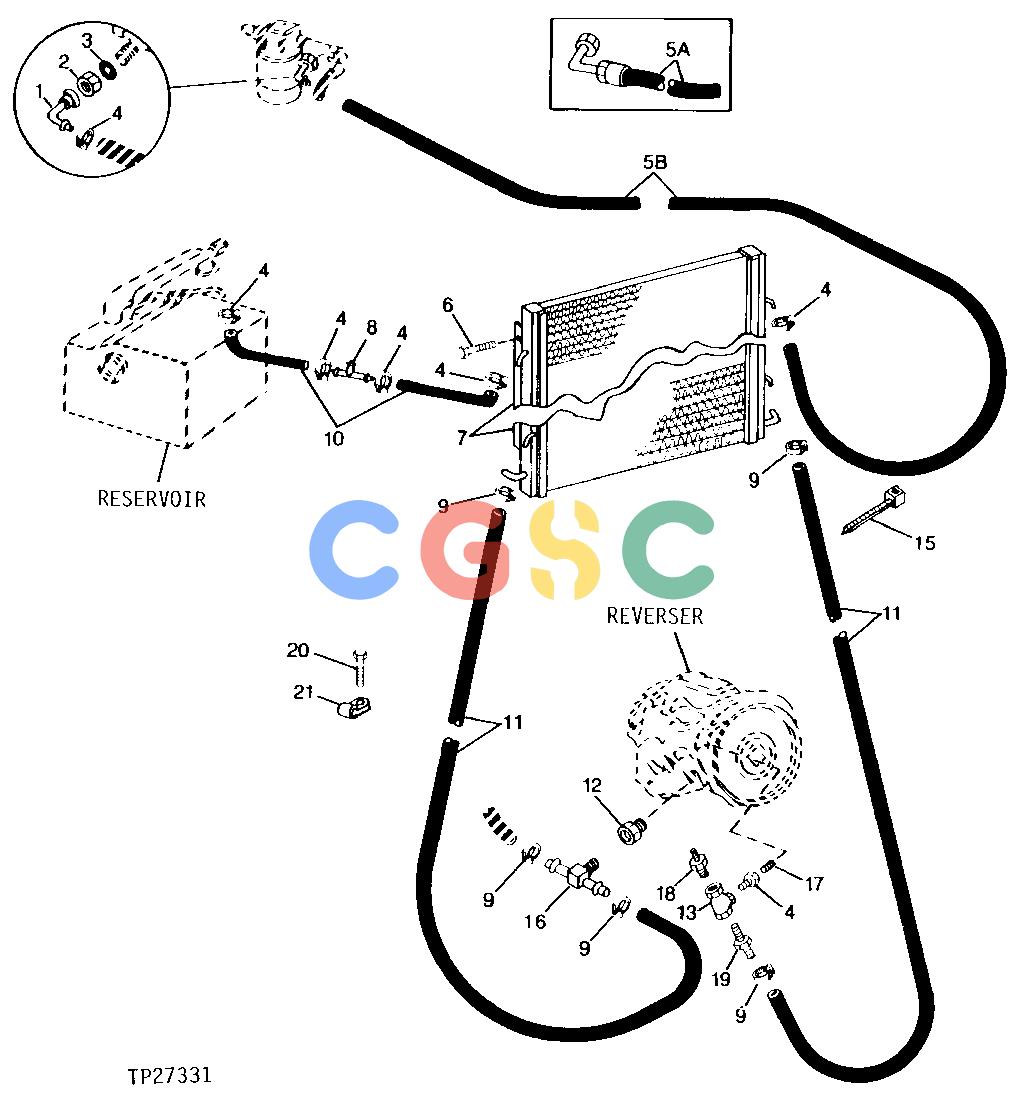

约翰迪尔零件查询315CH - BACKHOE, LOADER HYDRAULIC OIL COOLER AND REVERSER PLUMBING [01K21]EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 867 次

Pos.	Part No	Qty	Parts name	Comments
1.	AT114140	[1]	Line
2.	38H1356	[1]	Tube Nut
3.	T77858	[1]	O-Ring
4.	AR21837	[5]	Clamp
4.	AR21837	[6]	Clamp
5A.	AT100450	[1]	Hydraulic Hose	(SUB T100526 ALONG WITH AT114140, 38H1356 AND AR21837)
5B.	........	[AR]	Hose	(MAKE FROM T100526 BULK MATERIAL, CUT TO LENGTH)
6.	19M7783	[6]	Screw	M10 X 16, (FLANGED HEAD)
7.	AT135264	[1]	Oil Cooler	(SUB FOR AT113840)
8.	T106164	[1]	Tee Fitting
9.	TY22464	[5]	Clamp	(SUB FOR AR21836)
10.	........	[AR]	Hose	(MAKE FROM T100526 BULK MATERIAL, CUT TO LENGTH)
11.	........	[AR]	Hose	(MAKE FROM TY22562 BULK MATERIAL, CUT TO LENGTH) (TWO PIECES)
12.	15H619	[1]	Pipe Bushing	3/8"
13.	T141650	[1]	Tee Fitting	(SUB FOR T113448)
14.	15H586	[1]	Adapter Fitting	3/8"
15.	H77698	[AR]	Tie Band	(SUB FOR T44946)
16.	T38040	[1]	Hose Fitting
17.	29H587	[1]	Threaded Nipple	3/8"
18.	AT100083	[1]	Switch	(TEMPERATURE)
19.	N85588	[1]	Hose Fitting
20.	19H1924	[1]	Cap Screw	7/16" X 3/4"
21.	T28949	[1]	Clamp	(BOTH HOSES)
