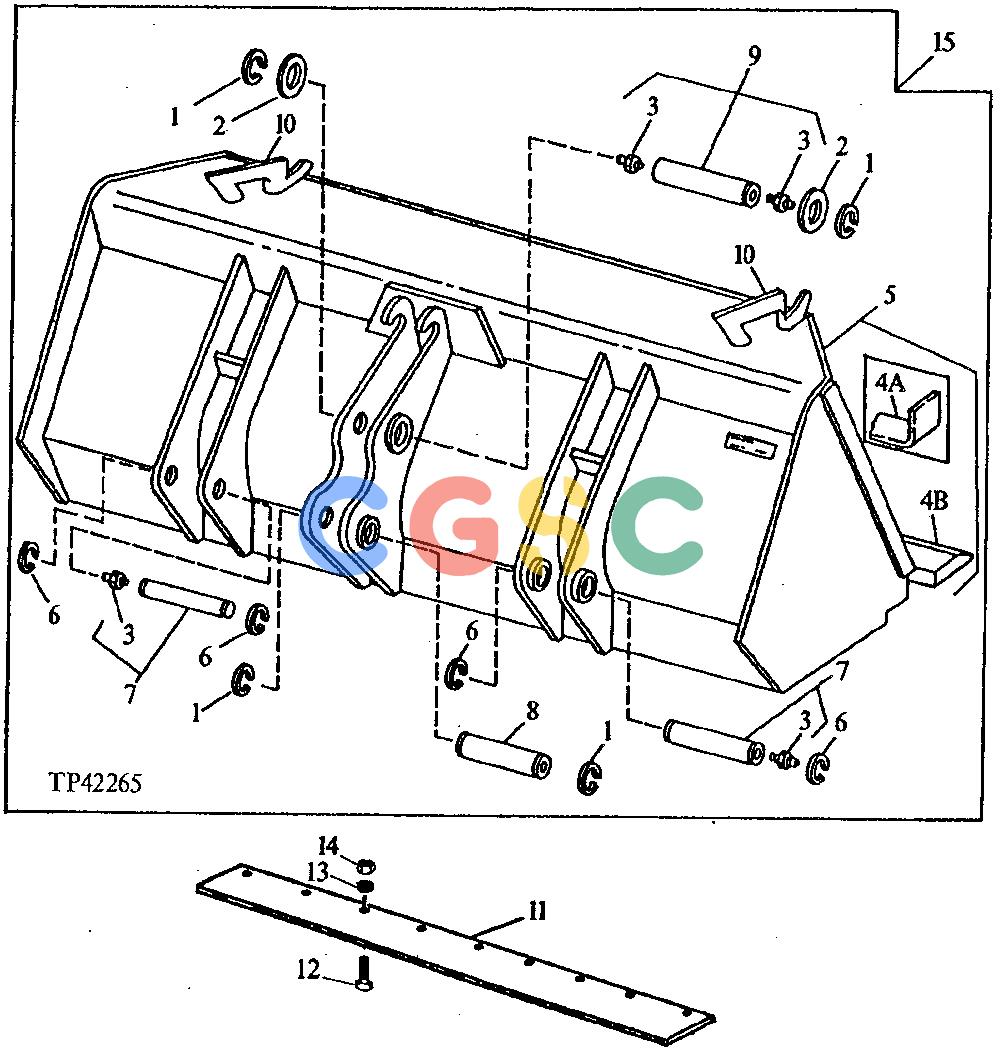

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 40M7180 | [4] | Snap Ring | 45 X 2.5 MM |
| 2. | 24H1571 | [2] | Washer | 1-25/32" X 2-7/8" X 0.120" |
| 3. | T162396 | [4] | Lubrication Fitting | 1/8", (SUB FOR JD7759, THIS APPLICATION) (SUB FOR JD7798) |
| 4A. | T69229 | [AR] | Cutting Edge | (USE WITH AT101136, MARKED AT100423 AND AT101138, MARKED AT100261 AND AT163320, MARKED AT159222 AND AT163318 MARKED AT159221) (FORMED ENDS) |
| 4A. | PBT69229 | [1] | Cutting Edge | WITH HOLES - ALTERNATE FOR T69229 |
| 4A. | T84194 | [1] | Cutting Edge | AUXILIARY - FOR USE WITH PBT69229 (REQUIRES (8) 14H1039 AND (8) 09H1764) |
| 4A. | T126774 | [1] | DURA-MAX TM CUTTING EDGE | AUXILIARY - FOR USE WITH PBT69229, (ALSO ORDER (8) T40728, (8) 14H1039 AND (8) 09H1757) |
| 4A. | T34103 | [AR] | Cutting Edge | (USE WITH AT163316) (FORMED ENDS) |
| 4A. | PBT34103 | [1] | Cutting Edge | WITH HOLES - ALTERNATE FOR T34103 |
| 4A. | T84194 | [1] | Cutting Edge | AUXILIARY - FOR USE WITH PBT34103 (REQUIRES (8) 14H1039 AND (8) 09H1764) |
| 4A. | T126774 | [1] | DURA-MAX TM CUTTING EDGE | AUXILIARY - FOR USE WITH PBT34103, (ALSO ORDER (8) T40728, (8) 14H1039 AND (8) 09H1757) |
| 4B. | T118768 | [AR] | Cutting Edge | (STRAIGHT) (USE WITH AT101136, MARKED AT113825 AND AT101138, MARKED AT113866 AND AT163320, MARKED AT159222 AND AT163318 MARKED AT159221) |
| 4B. | T84194 | [1] | Cutting Edge | AUXILIARY - FOR USE WITH T118768 (REQUIRES (8) 14H1039 AND (8) 09H1764) |
| 4B. | T126774 | [1] | DURA-MAX TM CUTTING EDGE | AUXILIARY - FOR USE WITH T118768, (ALSO ORDER (8) T40728, (8) 14H1039 AND (8) 09H1757) |
| 4B. | T118977 | [AR] | Cutting Edge | (STRAIGHT) (USE WITH AT163316) (SUB FOR T113450) |
| 5. | ........ | [1] | Loader Bucket | (SUB AT163320, AT163316 OR AT163318) |
| 6. | 40M7179 | [4] | Snap Ring | 40 X 2.5 MM |
| 7. | AT86427 | [2] | Pin Fastener | (SUB FOR T75107 AND AT150666) |
| 8. | T100188 | [1] | Pin Fastener | |
| 9. | AT86422 | [1] | Pin Fastener | (SUB FOR T100189) |
| 10. | U11773 | [2] | Hook | |
| 11. | T126774 | [1] | DURA-MAX TM CUTTING EDGE | |
| 12. | 09H1757 | [8] | Bolt | 5/8" X 2-3/4" |
| 13. | 24M7241 | [8] | Washer | 17 X 34 X 4 MM |
| 14. | 14H1039 | [8] | Nut | 5/8" |
| 15. | ........ | [1] | Loader Bucket | ( AT163318 NO LONGER AVAILABLE) (1 CUBIC YARD) (MARKED AT159221) (SUB FOR AT101138) (SUB AT166494) |
| 15. | ........ | [1] | Loader Bucket | ( AT163320 NO LONGER AVAILABLE) (1.3 CUBIC YARD) (MARKED AT159222) (SUB FOR AT101136) |
| 15. | ........ | [1] | Loader Bucket | ( AT163316 & AT159220 NO LONGER AVAILABLE) (1-1/4 CUBIC YARD WITH LONG TIP) (MARKED AT159220) (INCLUDES (2) U11773) (SUB FOR AT101137) |
