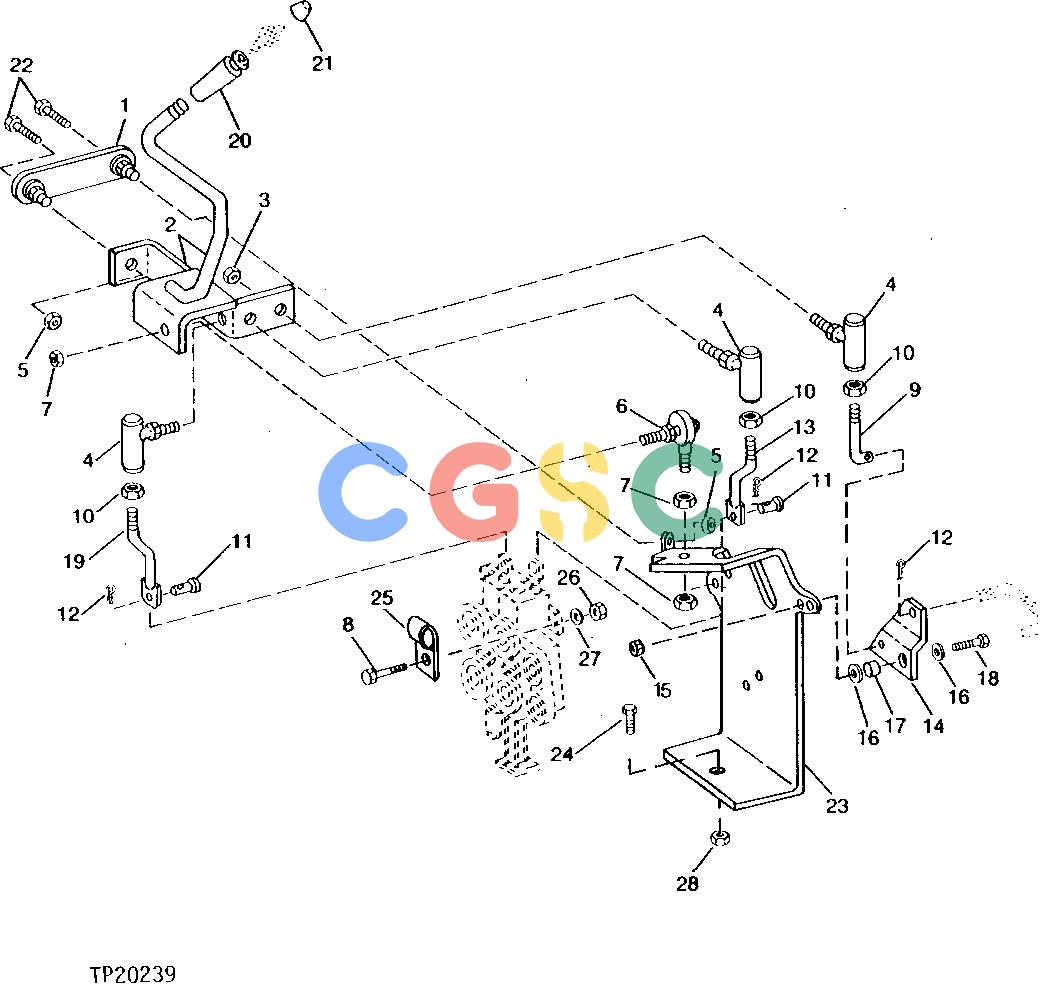

约翰迪尔零件查询315CH - BACKHOE, LOADER LOADER CONTROL VALVE LINKAGE [02B04]EPC John Deere online
广数供应链运营团队, 16 02月, 2025，浏览：
620 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
AT65257
|
[1] |
Link
|
|
| 2. |
AT100453
|
[1] |
Lever
|
|
| 3. |
M68954
|
[3] |
Lock Nut
|
|
| 4. |
AM1924T
|
[3] |
Ball Joint
|
|
| 5. |
R11151
|
[2] |
Lock Nut
|
|
| 6. |
AT124107
|
[1] |
Ball Joint
|
|
| 7. |
14H865
|
[3] |
Nut
|
|
| 8. |
19M7813
|
[3] |
Screw
|
|
| 9. |
........
|
[1] |
Bolt
|
|
| 10. |
14H774
|
[3] |
Nut
|
|
| 11. |
T19155
|
[2] |
Pin Fastener
|
|
| 12. |
11M7081
|
[3] |
Cotter Pin
|
|
| 13. |
T100237
|
[1] |
Link
|
|
| 14. |
T100638
|
[1] |
Plate
|
|
| 15. |
14M7275
|
[1] |
Nut
|
|
| 16. |
24M7047
|
[2] |
Washer
|
|
| 17. |
T112968
|
[1] |
Bushing
|
|
| 18. |
19M7493
|
[1] |
Cap Screw
|
|
| 19. |
T100236
|
[1] |
Link
|
|
| 20. |
T106453
|
[1] |
Knob
|
|
| 21. |
T101156
|
[1] |
Boot
|
|
| 22. |
19H2477
|
[2] |
Cap Screw
|
|
| 23. |
AT113898
|
[1] |
Support
|
|
| 24. |
19M8306
|
[2] |
Screw
|
|
| 25. |
R72659
|
[1] |
Clamp
|
|
| 26. |
14M7299
|
[3] |
Flange Nut
|
|
| 27. |
24M7055
|
[3] |
Washer
|
|
| 28. |
14M7299
|
[2] |
Flange Nut
|
|
