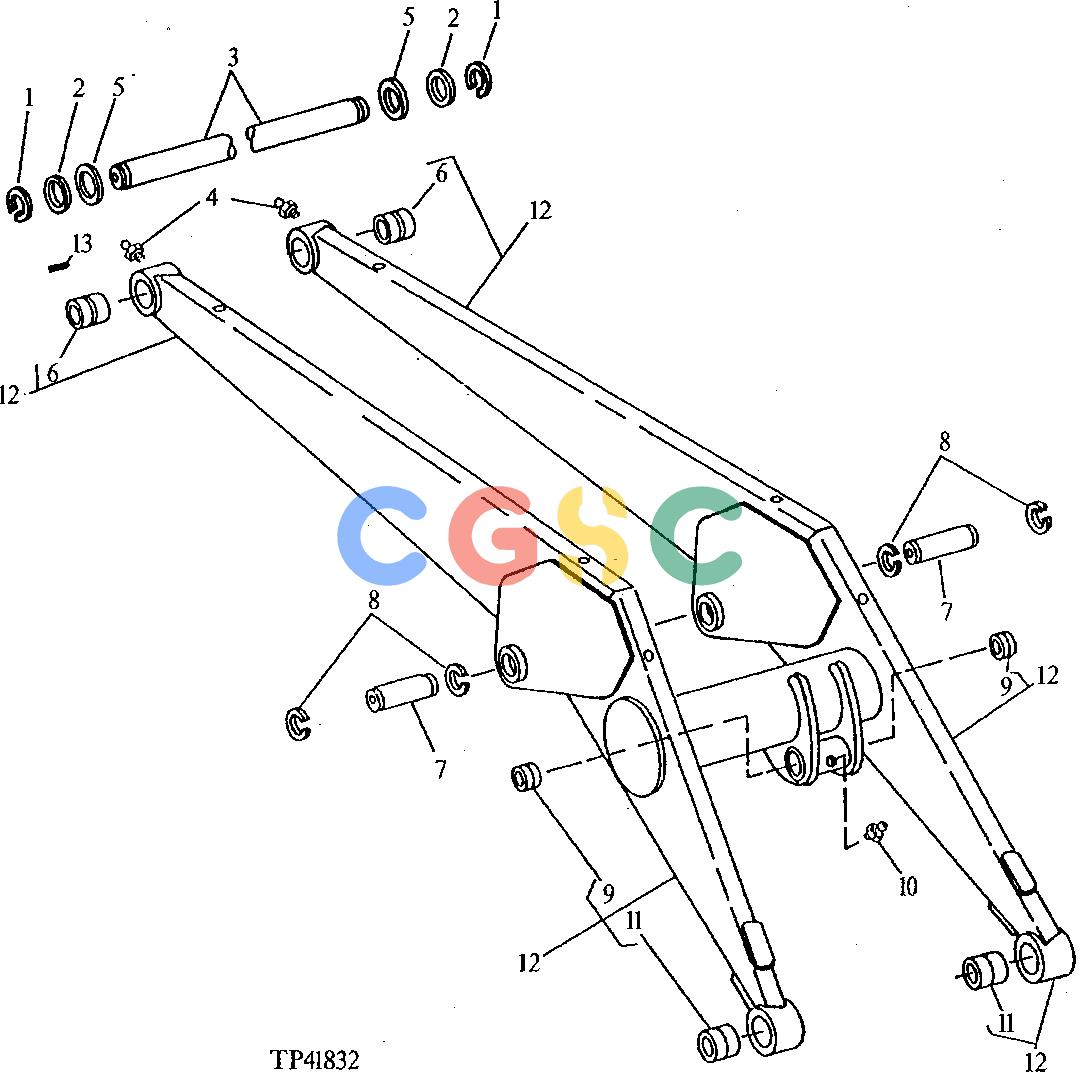

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 40M7166 | [2] | Snap Ring | 50 X 2 MM |
| 2. | T75815 | [2] | Washer | |
| 3. | T79092 | [1] | Pin Fastener | |
| 4. | T162396 | [2] | Lubrication Fitting | (SUB FOR JD7798) 1/8" |
| 5. | 24H1589 | [AR] | Washer | 2" X 3-3/16" X 0.036" |
| 6. | T128309 | [2] | Bushing | (SUB FOR T106092) |
| 7. | T140086 | [2] | Pin Fastener | (SUB FOR T100289) |
| 8. | 40M7180 | [4] | Snap Ring | |
| 9. | T76639 | [2] | Bushing | |
| 10. | JD7759 | [1] | Lubrication Fitting | 1/8" |
| 11. | T76638 | [2] | Bushing | |
| 12. | AT124378 | [1] | Lift Arm | (USE IF AVAILABLE) (SUB FOR AT106552) |
| 12. | AT145219 | [1] | Lift Arm | (SUB FOR AT124378) |
