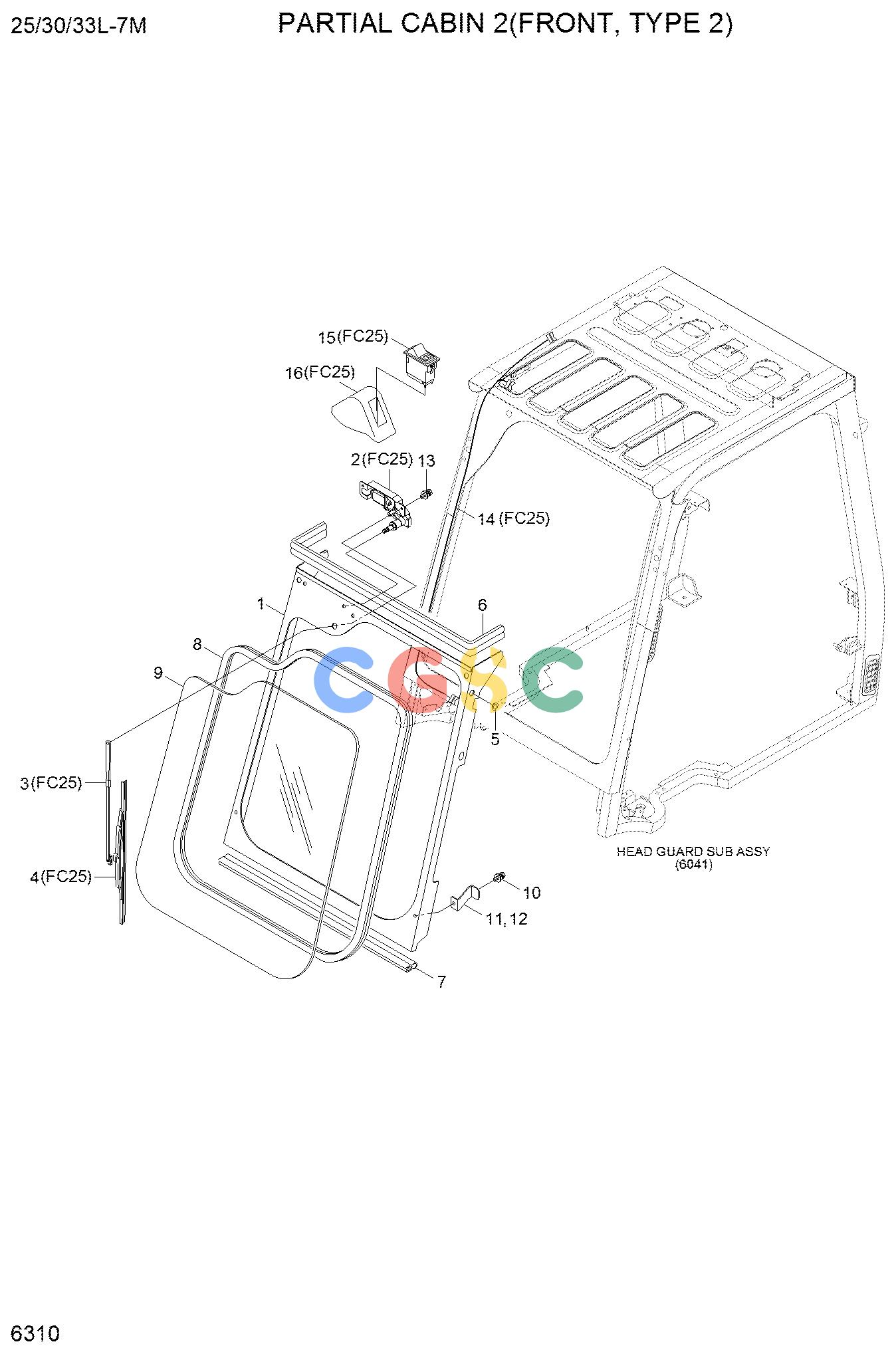

现代零件查询25/30/33L-7M PARTIAL CABIN 2(FRONT,TYPE 2)EPC Hyundai
广数供应链运营团队, 16 02月, 2025，浏览：
285 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
71HN-55500
|
[1] |
FRONT PLATE ASSY
|
|
| . |
71HN-55600
|
[1] |
FRONT PLATE ASSY
|
|
| 1. |
71HN-55510
|
[1] |
PLATE-FRONT W.A
|
|
| N2. |
71HN-55520
|
[1] |
WIPER MOTOR
|
|
| 3. |
71HN-55530
|
[1] |
WIPER ARM
|
|
| N4. |
71HN-55540
|
[1] |
WIPER BLADE
|
|
| 5. |
71HN-55550
|
[2] |
GROMMET
|
|
| 6. |
71HN-55560
|
[AR] |
WEATHER STRIP
|
|
| 7. |
71HN-55570
|
[AR] |
WEATHER STRIP
|
|
| 8. |
71HN-55580
|
[AR] |
SEAL GLASS
|
|
| 9. |
71HN-55590
|
[1] |
GLASS-FR
|
|
| 10. |
S035-802026
|
[4] |
BOLT W/WASHER-HEXAGON
|
|
| 13. |
S035-061526
|
[1] |
BOLT-W/WASHER
|
|
| 14. |
71HN-55620
|
[1] |
HARNESS
|
|
| 15. |
71HN-55630
|
[1] |
SWITCH
|
|
| 16. |
71HN-55640
|
[1] |
SWITCH BRACKET
|
|
