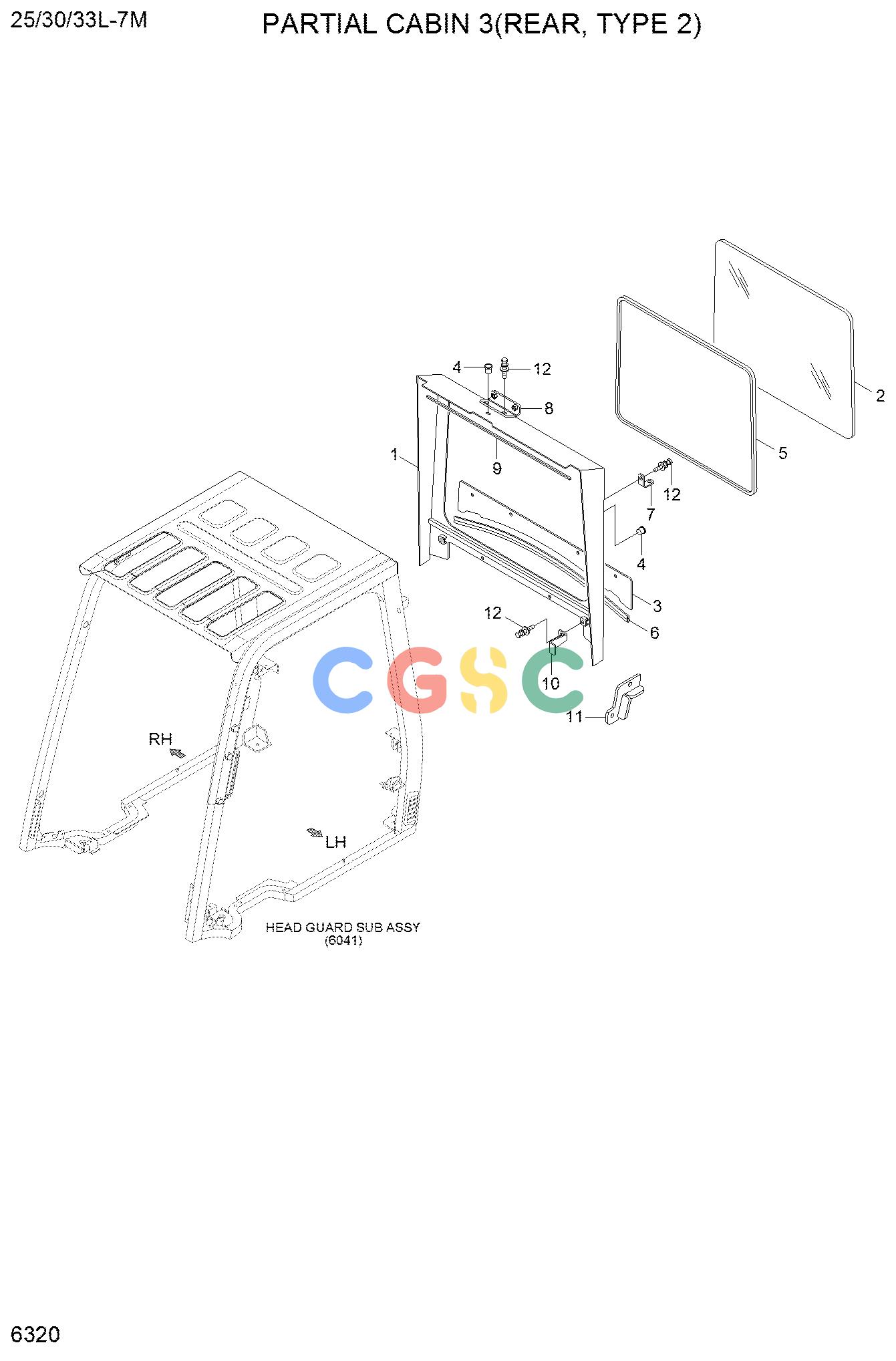

现代零件查询25/30/33L-7M PARTIAL CABIN 3(REAR,TYPE 2)EPC Hyundai
广数供应链运营团队, 16 02月, 2025，浏览：
212 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
71HN-55700
|
[1] |
REAR PLATE ASSY
|
|
| 1. |
71HN-55710
|
[1] |
REAR PLATE W.A
|
|
| 2. |
71HN-55720
|
[1] |
GLASS
|
|
| N3. |
71HN-55730
|
[1] |
PLATE
|
|
| N4. |
71HN-55740
|
[2] |
GROMMET
|
|
| 5. |
71HN-55750
|
[1] |
SEAL GLASS
|
|
| 6. |
71HN-55760
|
[AR] |
WEATHER STRIP
|
|
| 7. |
71HN-55770
|
[1] |
BACK LIGHT BRACKET
|
|
| 8. |
71HN-55780
|
[1] |
GYROPHARE BRACKET
|
|
| 9. |
71HN-55790
|
[AR] |
WEATHER STRIP
|
|
| 10. |
71HN-55791
|
[4] |
BRACKET
|
|
| 11. |
71HN-55792
|
[1] |
BONNET STOPPER
|
|
| 12. |
S035-802026
|
[11] |
BOLT W/WASHER-HEXAGON
|
|
