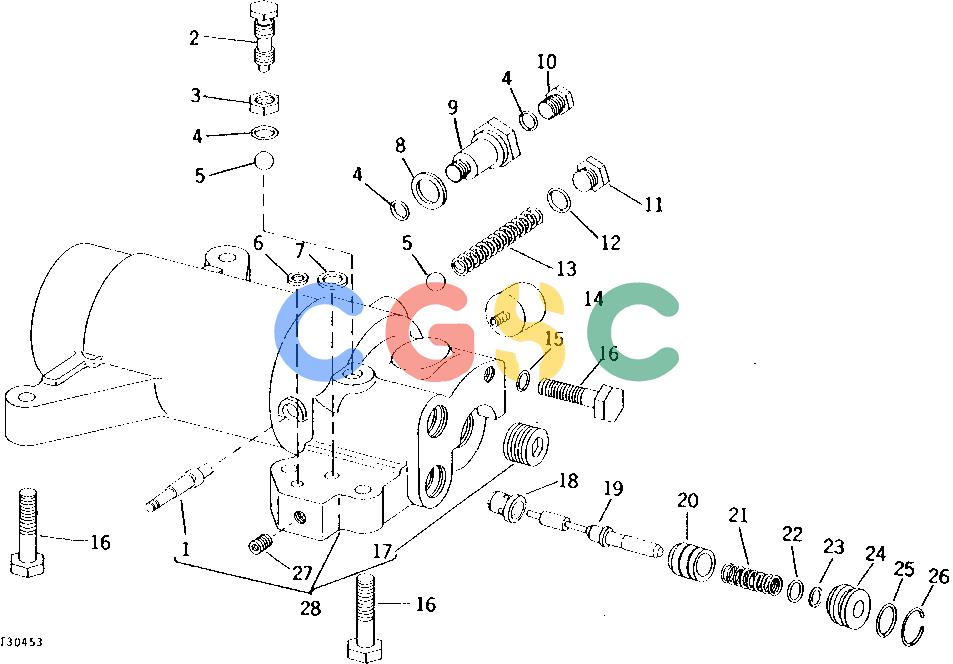

约翰迪尔零件查询401C - BACKHOE, LOADER ROCKSHAFT CYLINDER AND VALVE HOUSING [01I02]EPC John Deere online
广数供应链运营团队, 16 02月, 2025，浏览：
662 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
T22469
|
[1] |
Pin Fastener
|
|
| 2. |
T22471
|
[1] |
Screw
|
|
| 3. |
14H888
|
[1] |
Nut
|
|
| 4. |
R26448
|
[3] |
O-Ring
|
|
| 5. |
D2361R
|
[2] |
Ball
|
|
| 6. |
A4847R
|
[1] |
Washer
|
|
| 7. |
F2741R
|
[1] |
Packing
|
|
| 8. |
F1791R
|
[1] |
Washer
|
|
| 9. |
T21638
|
[1] |
Adapter
|
|
| 10. |
R27218
|
[1] |
Fitting Plug
|
|
| 11. |
T22867
|
[1] |
Drain Plug
|
|
| 12. |
R26375
|
[1] |
O-Ring
|
|
| 13. |
F3322R
|
[1] |
Spring
|
|
| 14. |
AT21781
|
[1] |
Thermostatic Control Valve
|
|
| 15. |
R26286
|
[1] |
O-Ring
|
|
| 16. |
19H1765
|
[5] |
Cap Screw
|
|
| 17. |
15H562
|
[1] |
Pipe Plug
|
|
| 18. |
T28538
|
[2] |
Valve Seat Insert
|
|
| 19. |
R54969
|
[2] |
Valve Spool
|
|
| 20. |
T24540
|
[2] |
Sleeve
|
|
| 21. |
T19526
|
[2] |
Compression Spring
|
|
| 22. |
R10093
|
[2] |
O-Ring
|
|
| 23. |
R31136
|
[2] |
Back-Up Ring
|
|
| 24. |
T24485
|
[2] |
Plug
|
|
| 25. |
R65548
|
[2] |
O-Ring
|
|
| 26. |
M3265T
|
[2] |
Snap Ring
|
|
| 27. |
15H559
|
[1] |
Pipe Plug
|
|
| 28. |
AR63911
|
[1] |
Housing
|
|
