约翰迪尔零件查询401C - BACKHOE, LOADER ROCKSHAFT HOUSING [01I03]EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览： 402 次

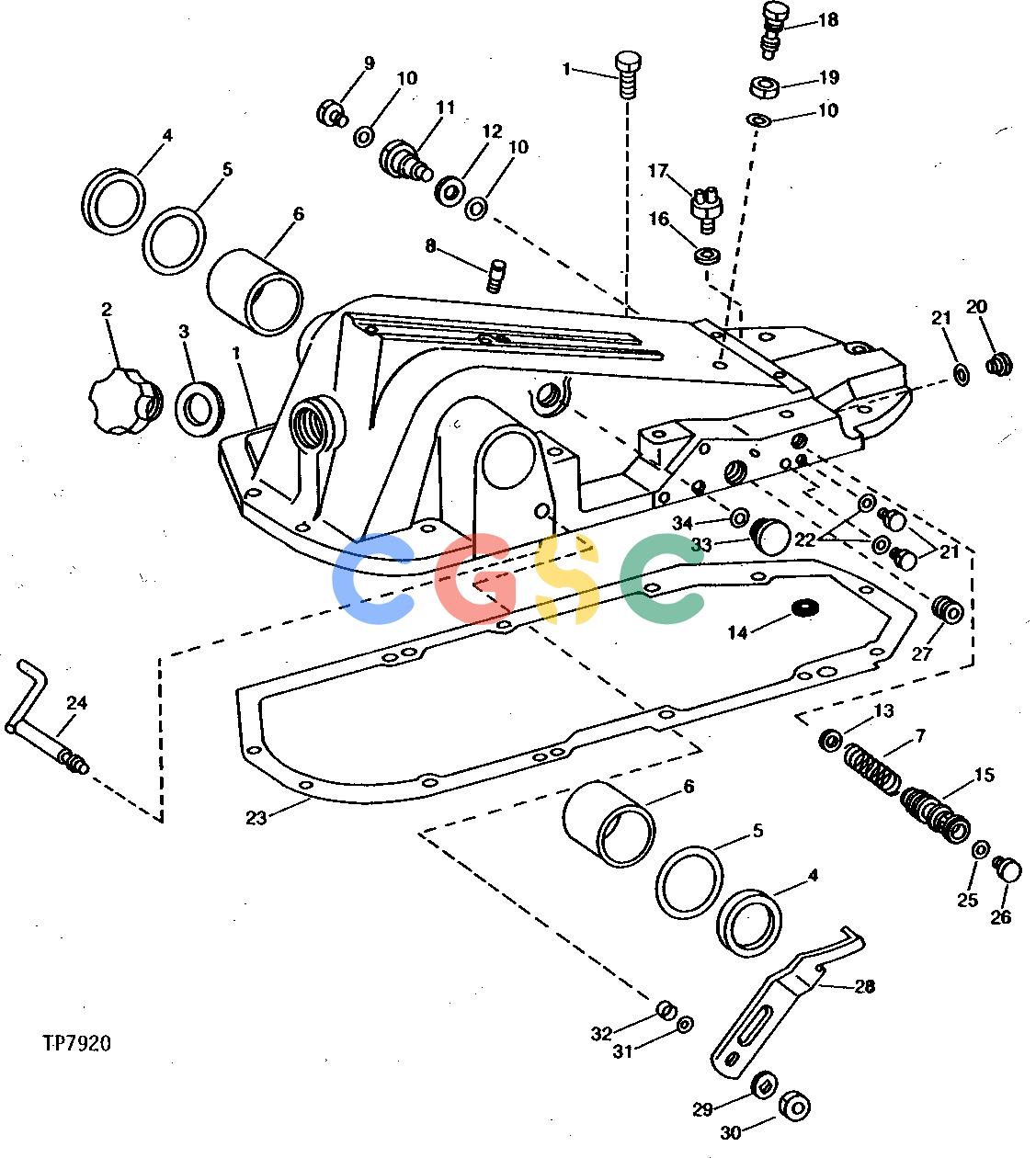

Pos.	Part No	Qty	Parts name	Comments
1.	AR77179	[1]	Housing	(MARKED R62595) (WITH PIN, BUSHING, AND STEEL BALL) (SUB FOR AT20881) (MARKED T21470) (SUB AR104660, R27218 AND R26448)
1.	AR104660	[1]	Housing	(MARKED R76702) (WITH PIN, BUSHING AND STEEL BALL) (SUB FOR AR83400)
2.	L29872	[1]	Plug	(SUB FOR T21563)
3.	T21564	[1]	Washer
4.	T21615	[2]	Round Retainer
5.	R26863	[2]	O-Ring
5.	T26904	[2]	O-Ring
6.	L62405	[2]	Bushing	(SUB FOR T22474)
7.	T22968	[1]	Spring
8.	T21630	[1]	Pin
9.	R27218	[1]	Fitting Plug
10.	R26448	[3]	O-Ring
11.	T21638	[1]	Adapter
12.	F1791R	[1]	Washer
13.	24H1283	[1]	Washer	7/32" X 1/2" X 0.049"
14.	T17882	[1]	Washer
15.	R26460	[1]	Control Valve
16.	T16911	[AR]	Shim	.38 MM (.015")
17.	AT85153	[1]	Switch	(SUB FOR R36265, AR85323 AND AR89691)
18.	T22471	[1]	Screw
19.	14H888	[1]	Nut	9/16"
20.	R27216	[3]	Drain Plug	(SUB FOR R31631)
21.	R26287	[3]	O-Ring
22.	24H1283	[1]	Washer	7/32" X 1/2" X 0.049"
23.	T21641	[1]	Gasket
24.	AL28674	[1]	Lever	(SUB FOR AT19839 AND AL28227)
25.	R26375	[1]	O-Ring
26.	R39112	[1]	Fitting
27.	15H562	[1]	Pipe Plug	1"
28.	T22465	[1]	Lever
29.	T22876	[1]	Washer
30.	14H732	[1]	Nut	3/8"
31.	F3353R	[1]	O-Ring
32.	T21631	[1]	Bushing
33.	R27474	[1]	Drain Plug	(NO REMOTE CYLINDER CONTROL)
34.	R26906	[1]	O-Ring	(NO REMOTE CYLINDER CONTROL)
