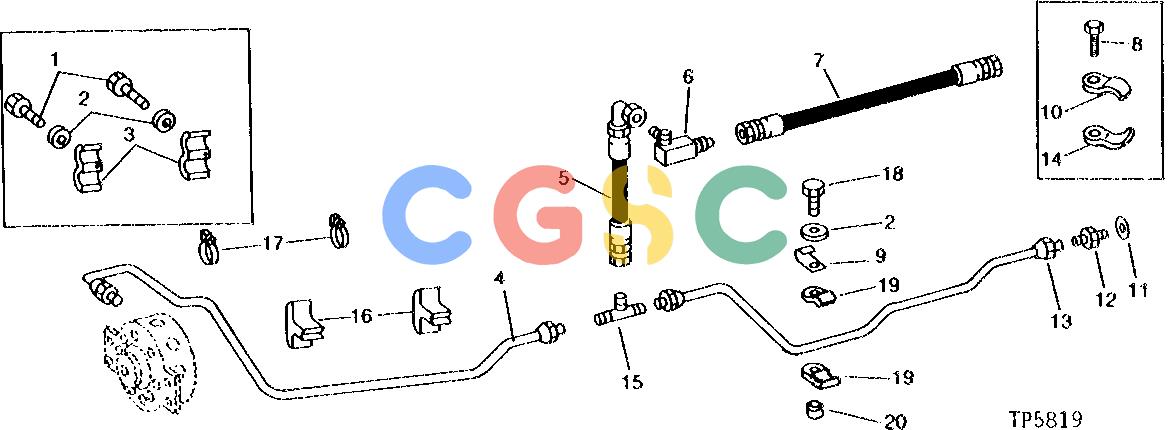

Pos.	Part No	Qty	Parts name	Comments
1.	19H3239	[2]	Cap Screw	3/8" X 1-1/4"
2.	12H304	[3]	Lock Washer	3/8"
3.	T23040	[2]	Clamp	OIL LINES-TO-CYLINDER BLOCK, (SUB AR21999) (ALSO ORDER R49076)
4.	AT37737	[1]	Oil Line	FRONT
5.	AT38634	[1]	Hydraulic Hose - Fabricate	PRESSURE LINE TO ACCUMULATOR 305 MM LONG (3/8" X 12")
6.	AR32665	[1]	Tee Fitting
7.	AT38635	[1]	Hydraulic Hose - Fabricate	635 MM LONG (9/16" X 25") TEE TO ELBOW IN POWER STEERING VALVE HOUSING
7.	AT54133	[1]	Hydraulic Hose - Fabricate	635 MM LONG (9/16" X 25") TEE TO ELBOW IN POWER STEERING VALVE HOUSING
8.	19H2284	[2]	Cap Screw	3/8" X 7/8"
9.	B1986R	[1]	Clip	(WITH REVERSER)
10.	T25724	[1]	Clamp	(SUB (2) R35726, 28H1518, 12H304 AND 19H1732, THIS APPLICATION)
11.	R26906	[1]	O-Ring
12.	R27270	[1]	Fitting
13.	AT23557	[1]	Oil Line	REAR PRESSURE (WITHOUT REVERSER)
13.	AT23561	[1]	Oil Line	REAR PRESSURE (WITH REVERSER)
14.	R28539	[1]	Clamp	(SUB (2) R35726, 28H1518, 12H304 AND 19H1732, THIS APPLICATION)
15.	T25723	[1]	Tee Fitting
16.	R49076	[2]	Spacer
17.	AR21999	[2]	Hose Clamp	(SUB FOR AR21840)
18.	19H1732	[1]	Cap Screw	3/8" X 1-1/4"
19.	R35726	[2]	Clamp
20.	28H1518	[1]	Washer	0.493" X 0.675" X 5/16"
